Product Detail

K-TEK-M111-OTB-AVR-PM-BT

Category: Trackball
Key Number: 5 keys
Key Travel: 0.30mm±0.20mm
Interface: USB
Key Switch: Micro switch technology
Protection Level: IP65
Mounting Solution: Top panel mount
Operating Temperature: -40ºC to +60ºC
Ball Diameter: 50.0mm
Application: Vehicle, aerospace, maritime, Radar, display console, portable rugged laptop, UAV ground station etc.
Description
Download

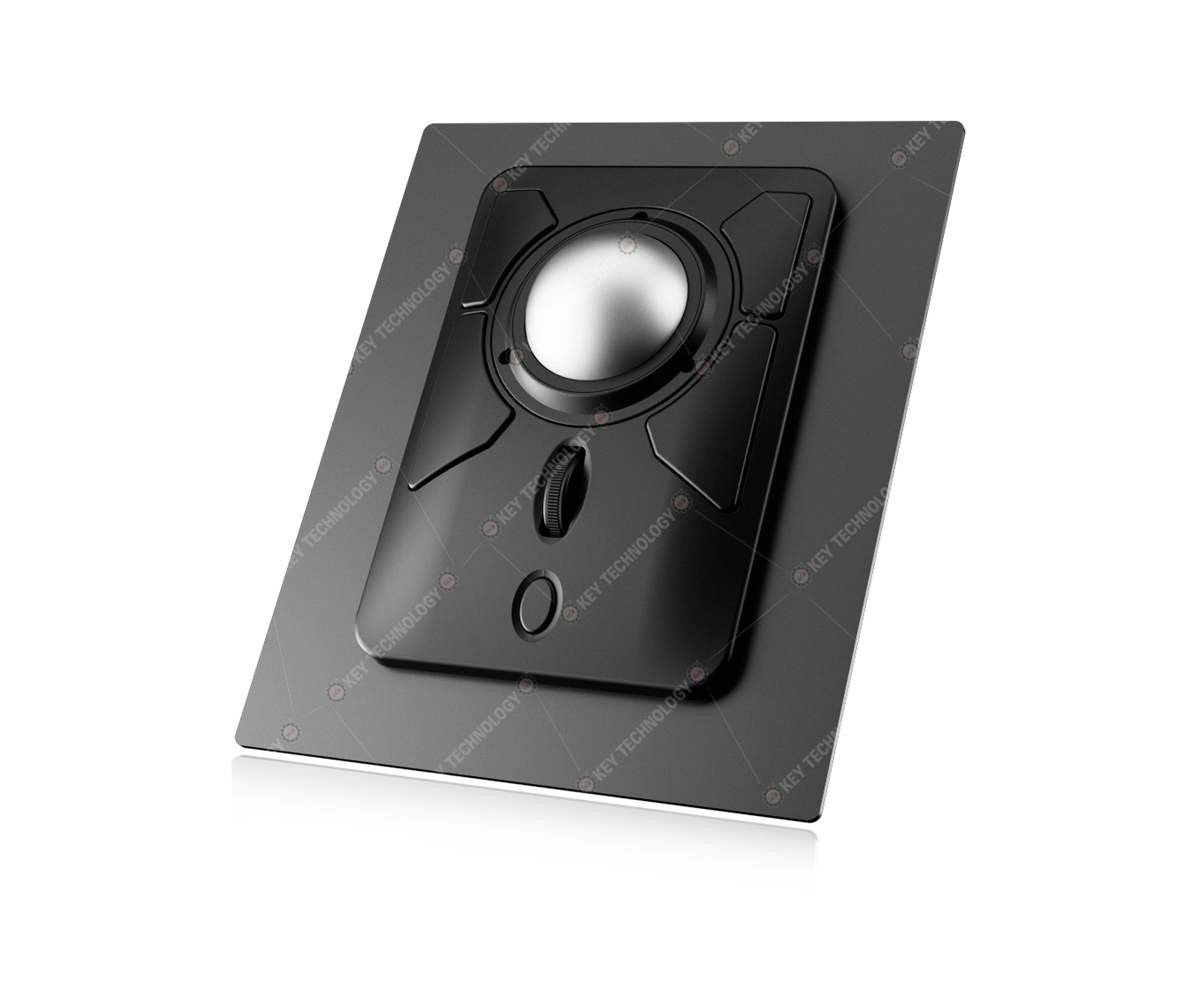

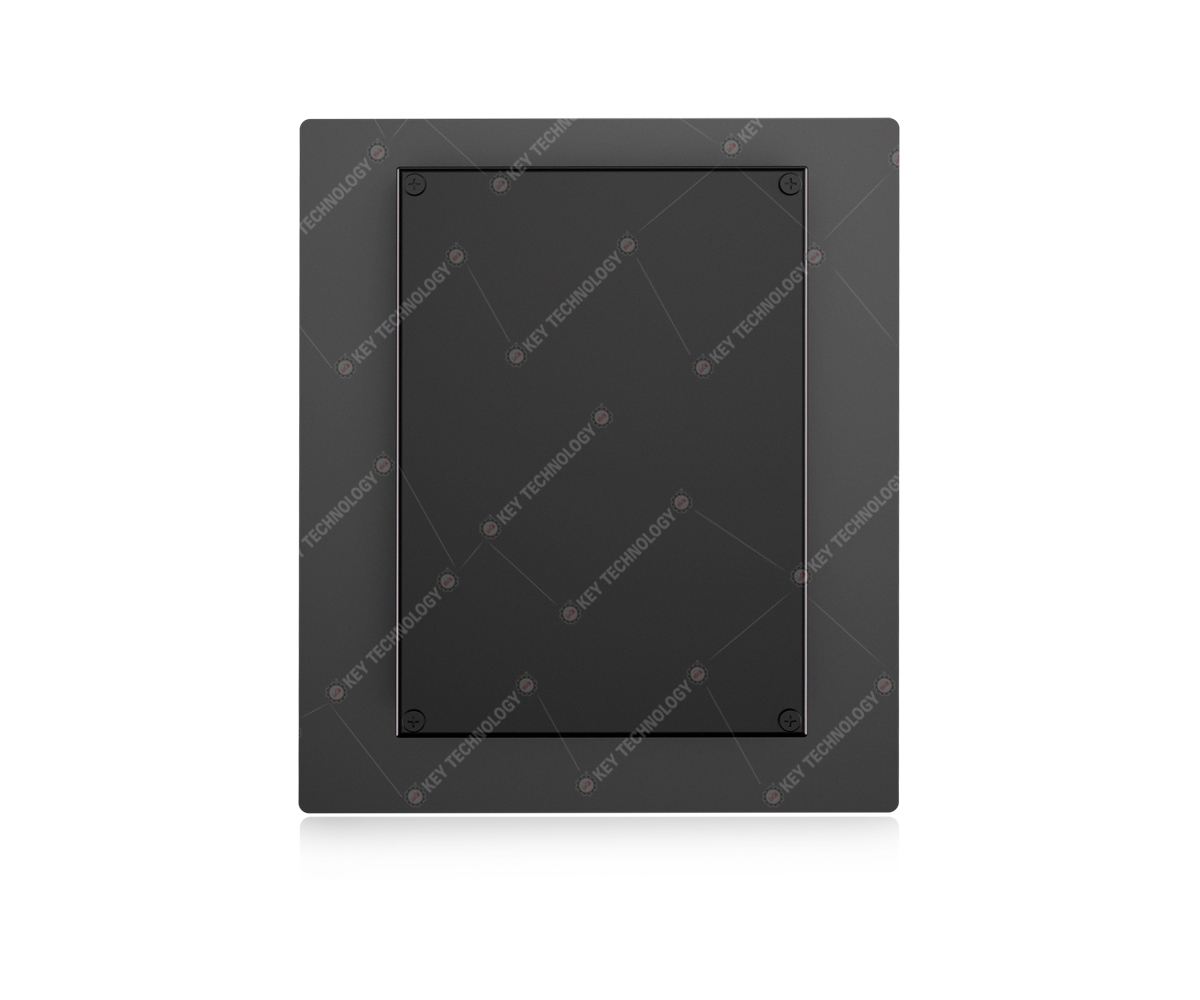

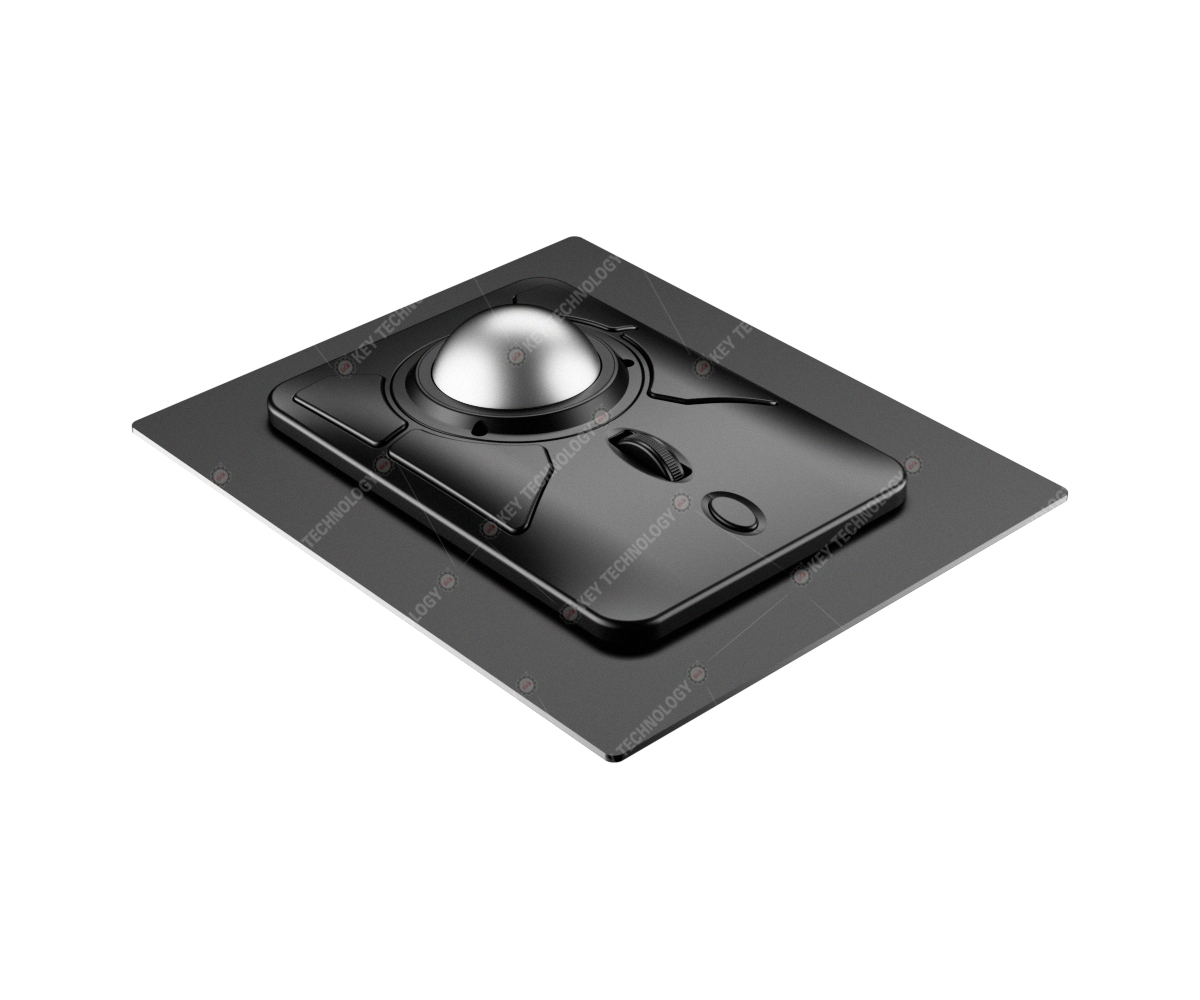

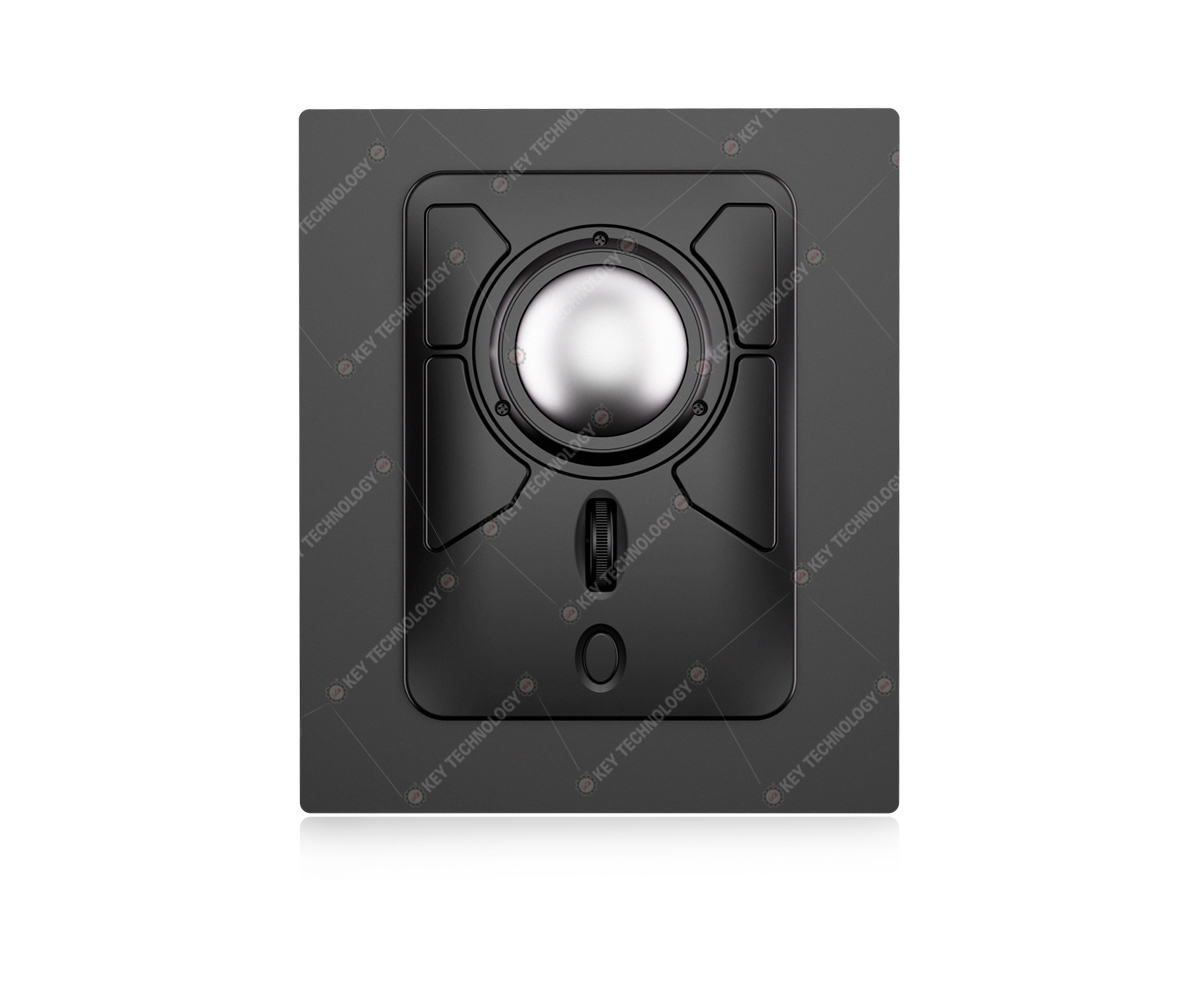

DESCRIPTION: IP65 sealed rugged anti-vibration and removable optical trackball mouse, with 50mm silver resin optical ball module with 300~1200 CPI resolutions for fast and accurate cursor position with extreme smooth operation without any noise, and total 5 buttons: 2 for right/left clicking on upper part, 2 for webpage scrolling up/down buttons (customized funtion keys available upon request), as well as 1 CPI adjustable key on the bottom, 2.0mm thickness black titanium electroplated SUS304 stainless steel front plate with M4 countersunk hole for top panel mounted solution‌. The ball can be detached for easy cleaning. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity, MIL-STD-461G (EMC, EMI, EMS, ESD) optional.

DIMENSION: 111.00mm x 216.00mm (L x W)


MECHANICAL DATA

Keys

5 keys

Key switch

Micro switch technology

Key travel

0.30mm±0.20mm

Key lifespan

> 3 millions actuation

Trackball

Anti-vibration and removable 50mm silver resin optical ball module

G.W.

≈0.50KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

80mA

Interface

USB

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +60

Storage temperature

-45℃ to +65

Operating RH

3% ~ 95%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS, CE, FCC

MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand & dust, fungus, solar radiation etc.)

Protection Level

IP65

Lifespan

>5 years

MTBF

>20000H

MTTR

<30min

APPLICATION

Vehicle, aerospace, maritime, Radar, display console, portable rugged laptop, UAV ground station etc.
