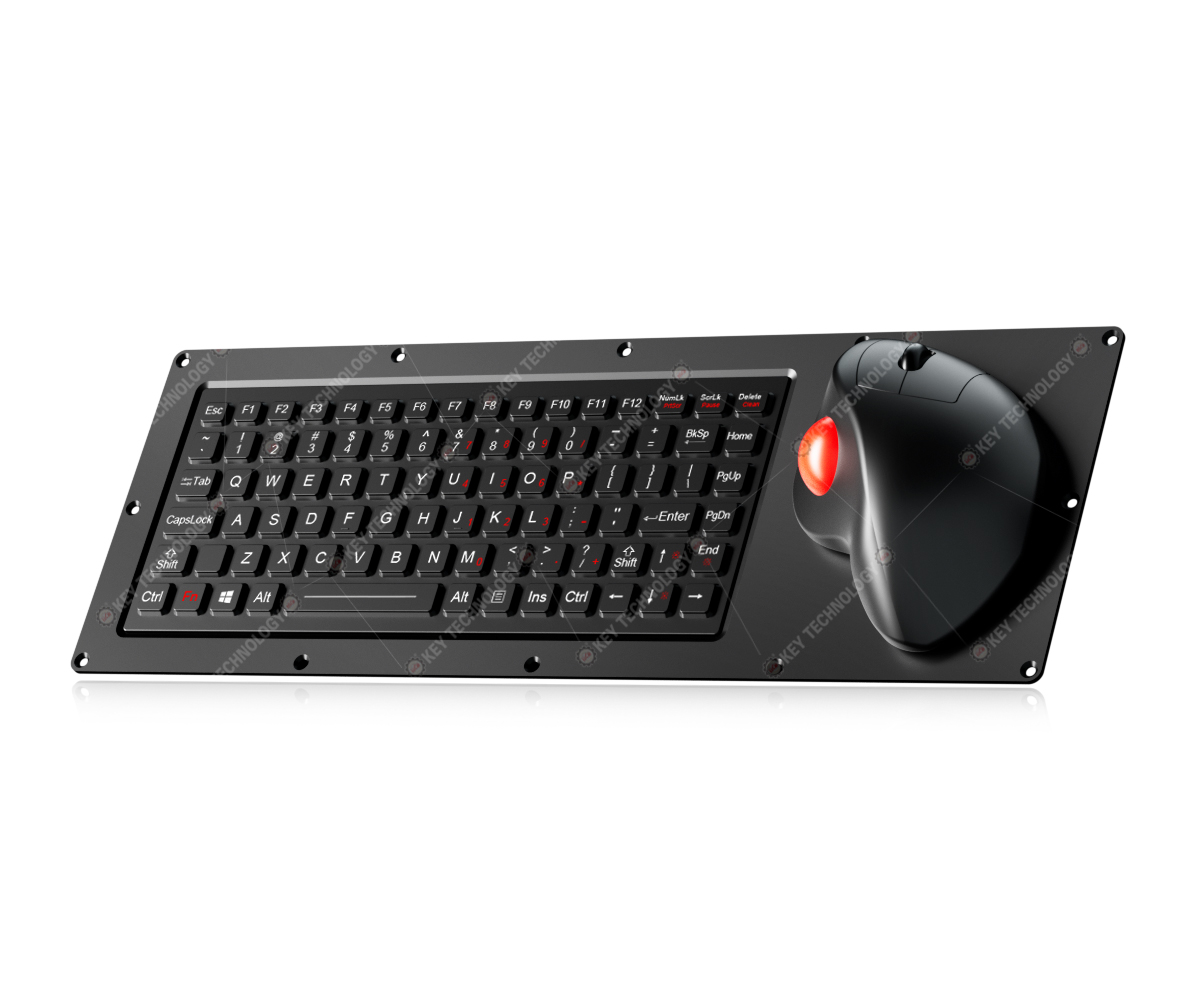

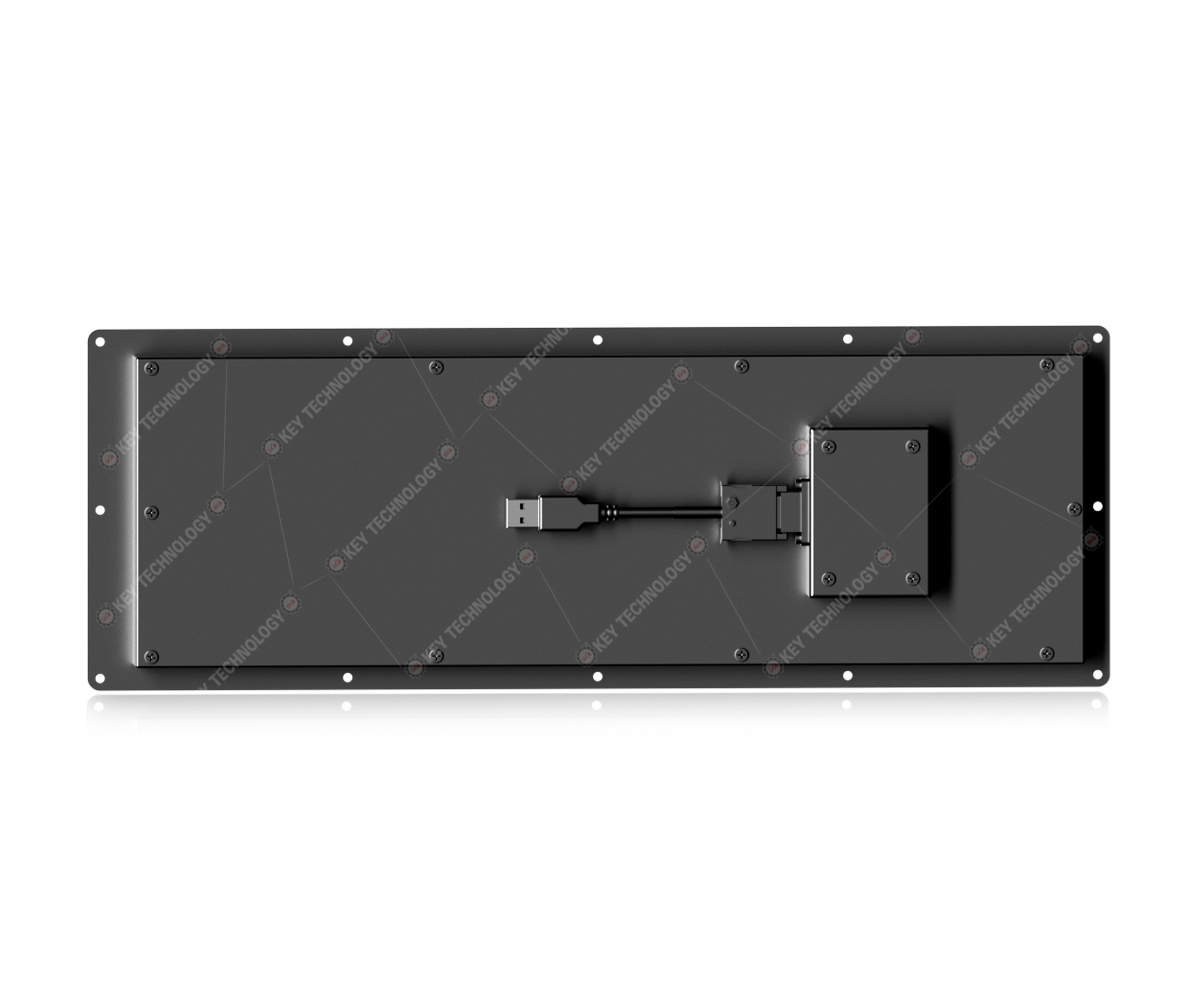

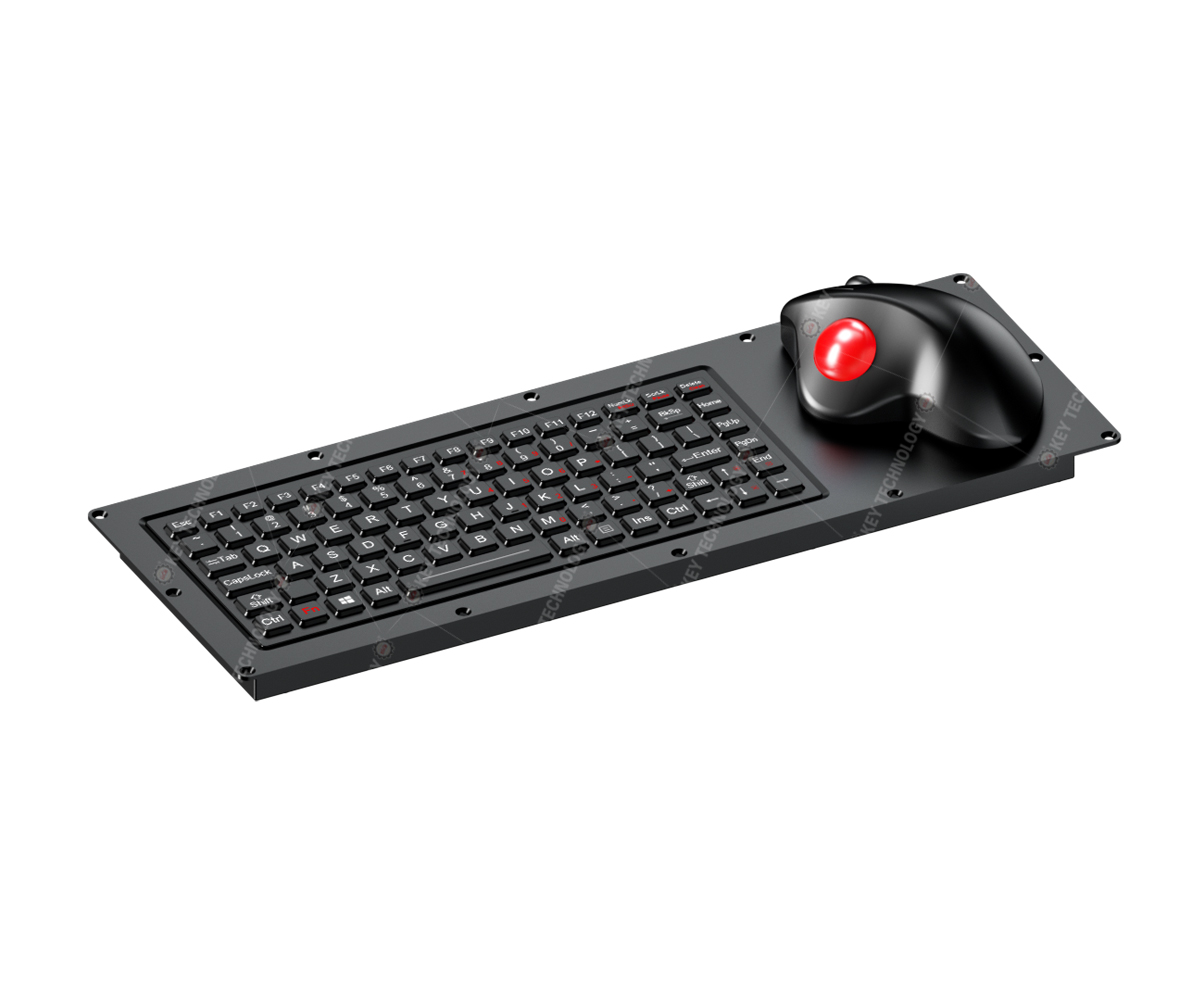

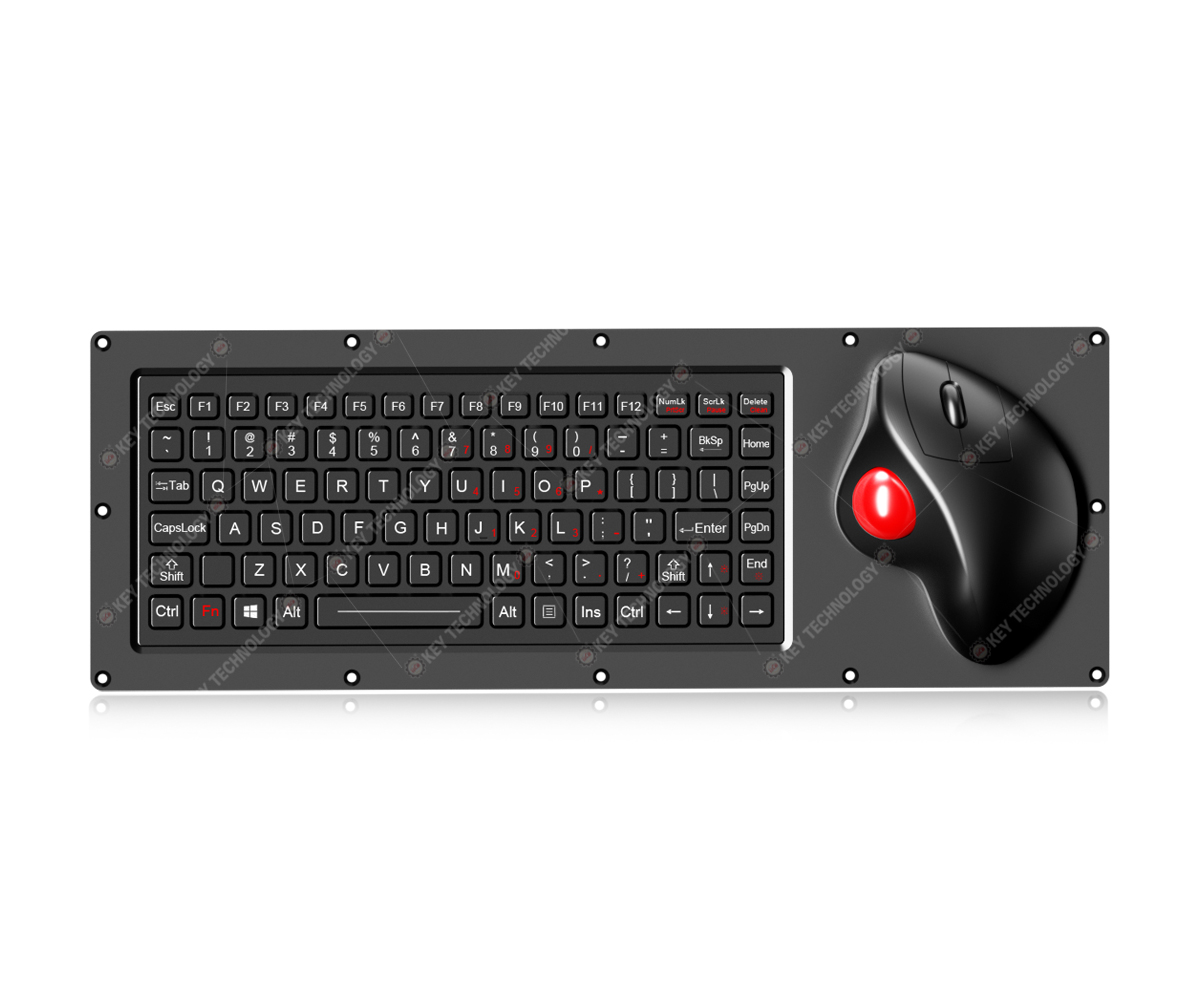

DESCRIPTION: 87 keys IP65 dynamic sealed & ruggedized silicone rubber military keyboard, 12 FN function keys (F1, F2...F11, F12) on the top line for easy operation, integrated with IPX6 rating 34mm optical trackball mouse at 800DPI resolutions for fast cursor moving, military PCB with carbon-on-gold key switch technology with 1.50mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface treatment to withstand most chemicals and liquids under harsh environment, FN+ CLEAN combination key for easy cleaning via locking/disable the entire keyboard without needing to take away the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate and back housing, with sinking holes for panel mount to user's device. Adjustable industrial white backlight included, designed to meet MIL-STD-461G-EMC-EMI-EMS-ESD and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, sand & dust, fungus, solar radiation etc.) as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. DIMENSIONS: 425.0mm x 150.0mm (Front Panel)
MECHANICAL DATA | Key | 87 keys + 3 mouse keys | Key travel | 1.50mm±0.10mm | Actuation Force | 1.5N±0.2N (pressure point ) | Switch life | more than 5 million of operations | G.W. | 2.50KGs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 30mA when backlight is off, 300mA with backlight on | Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz - 400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, sand & dust, fungus, solar radiation etc.) | Lifespan | > 5 years | Switch Contact Material | carbon-on-gold key switch technology | Interface | USB | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android. | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +75℃ | Storage temperature | -45℃ to +85℃ | Saline mist | 96h, IEC60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | Humidity | 3%-95% | Atmospheric pressure | 60-106Kpa | RELIABILITY | RoHS compliant, CE and FCC | MIL-STD-461G-EMC-EMI-EMS-ESD and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, | drop, rain, salt mist, sand & dust, fungus, solar radiation etc.) | Protection Level | IP65 | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station etc. |
|
