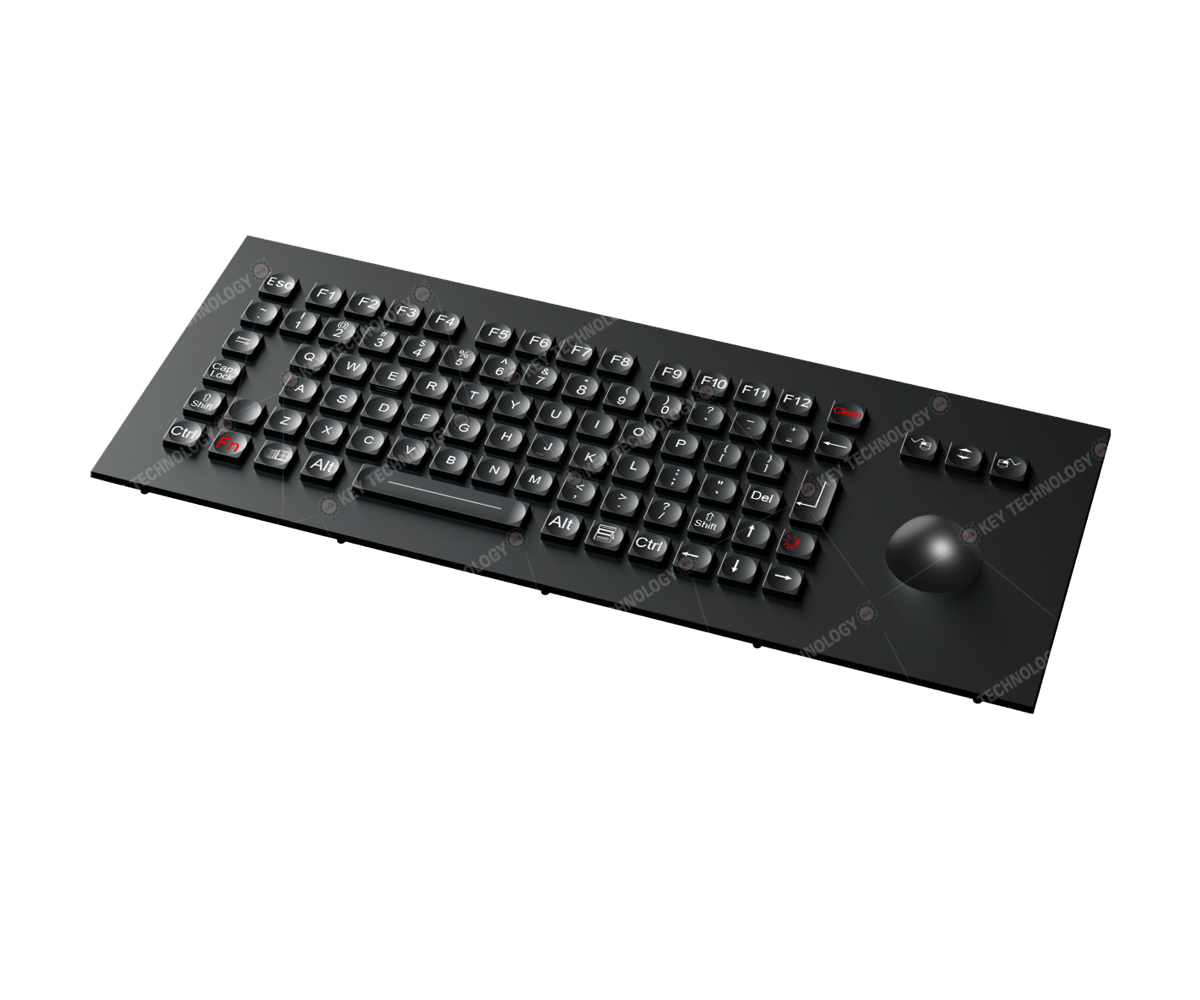

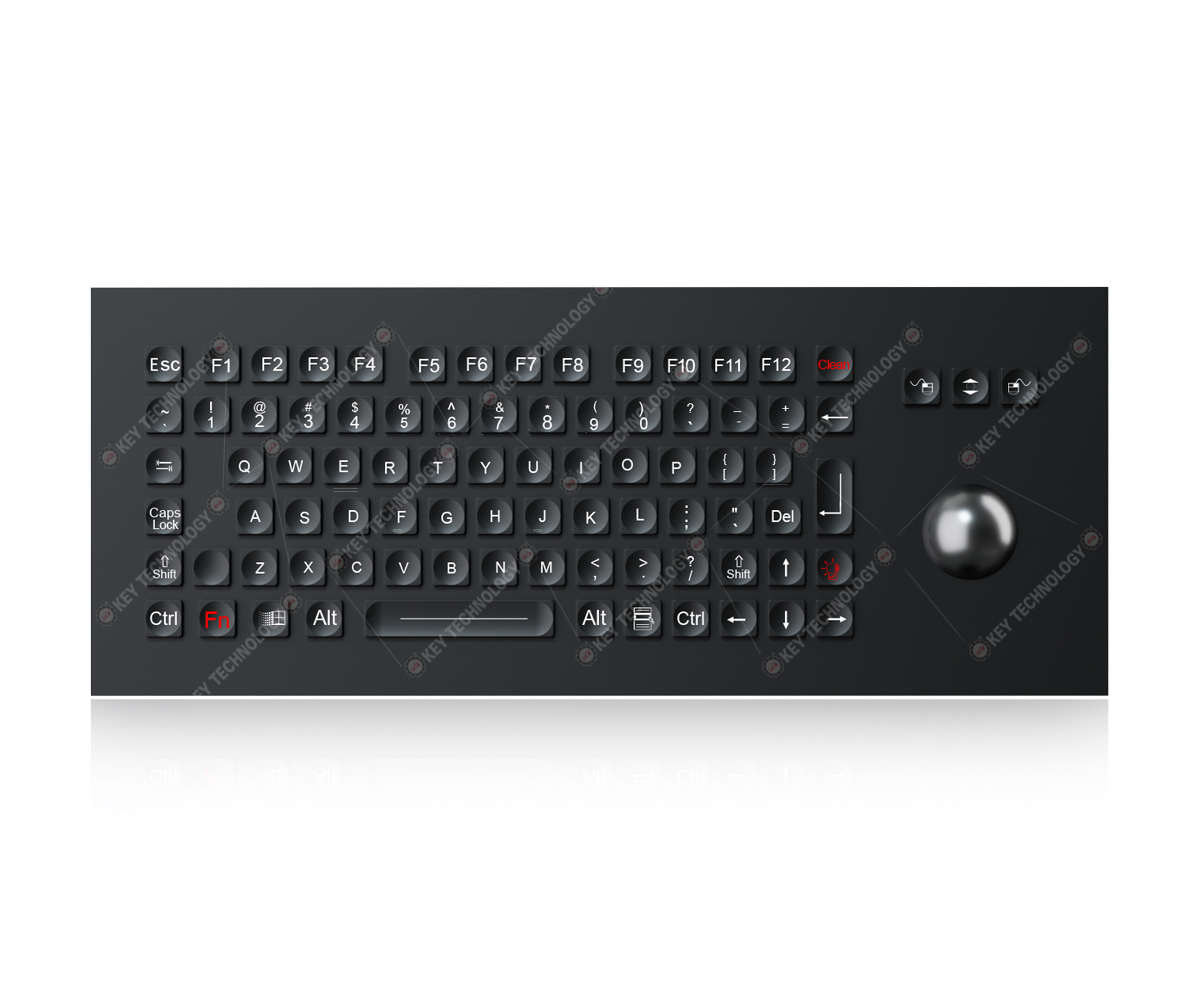

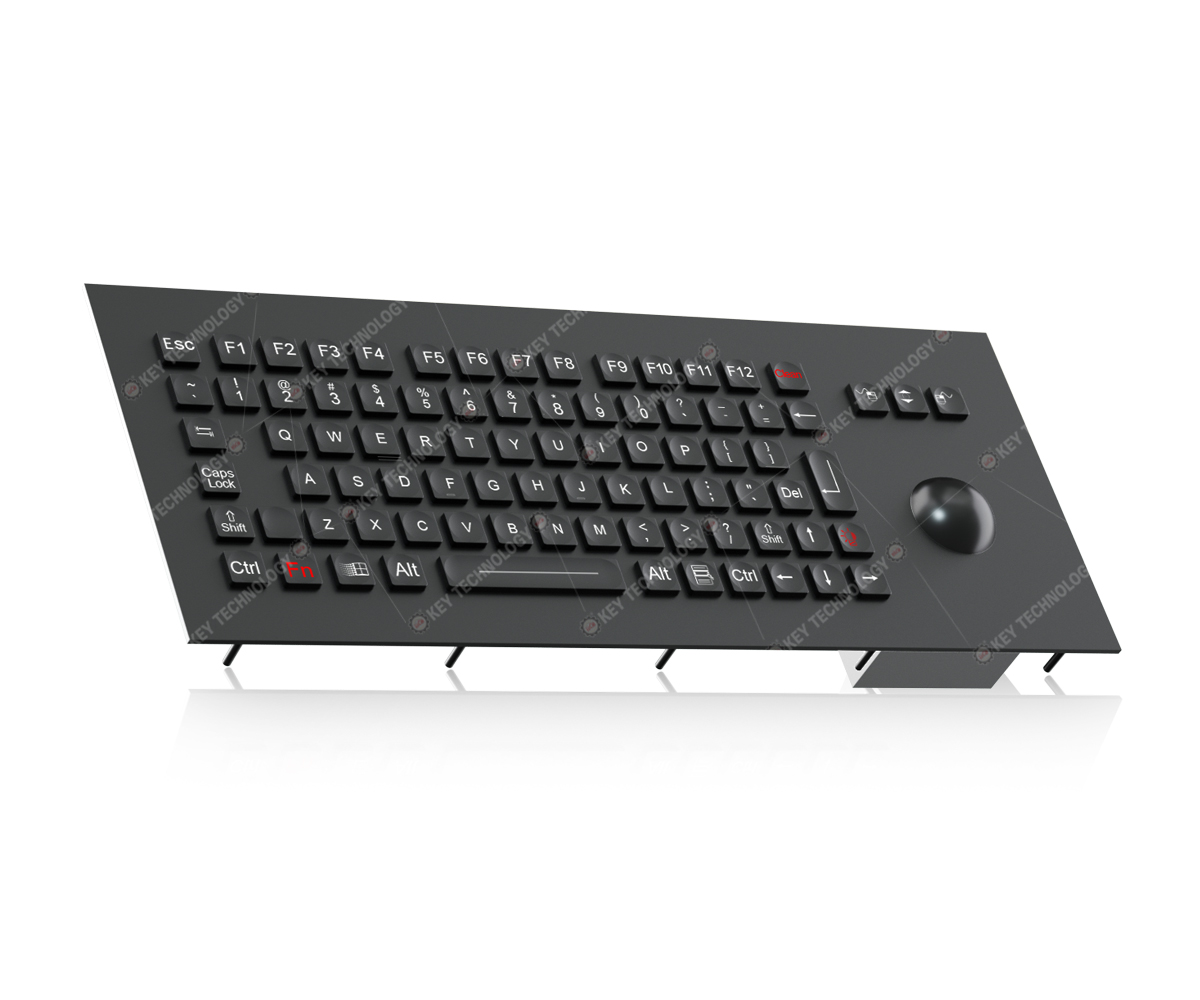

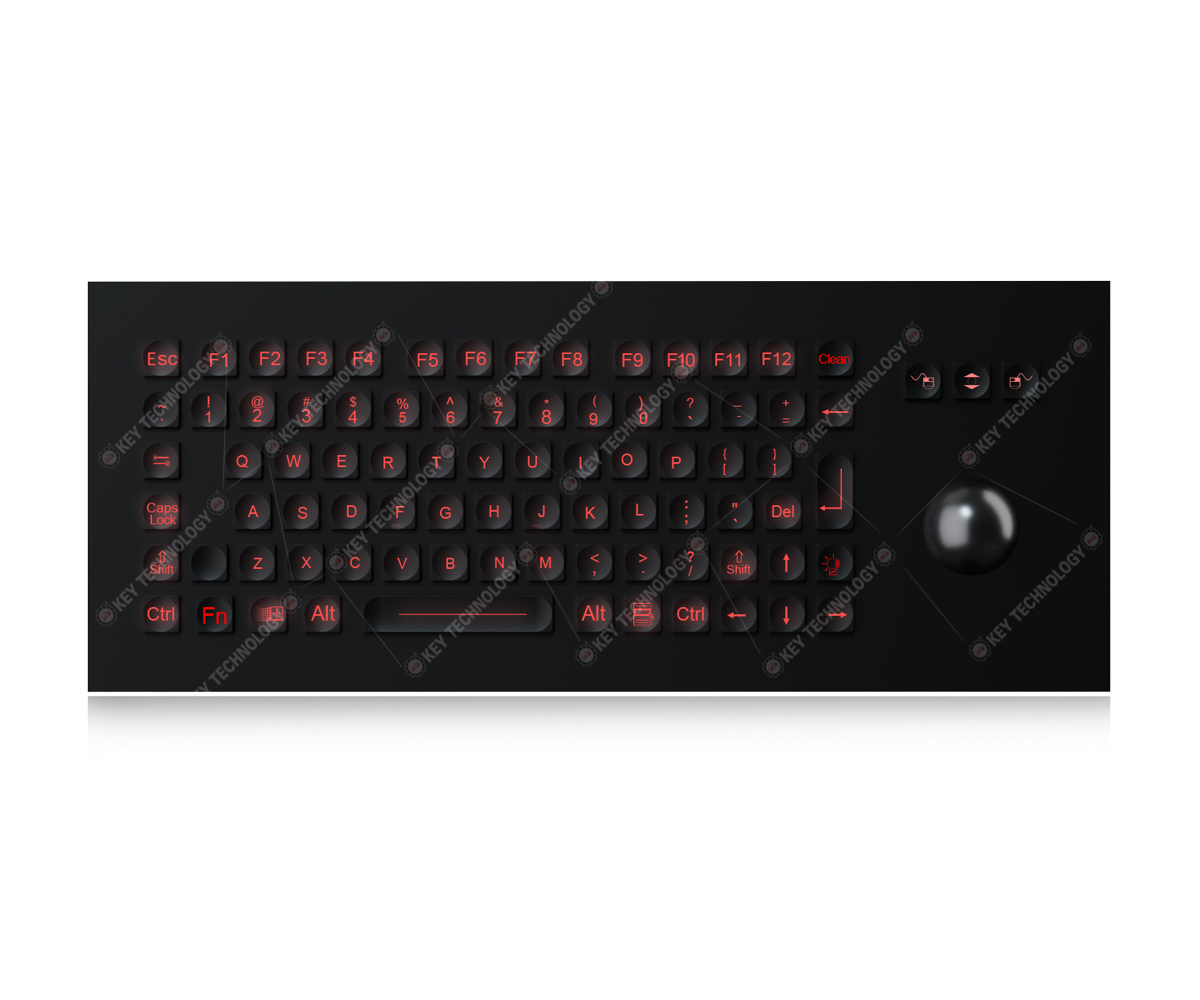

DESCRIPTION: 85 keys (Including 3 mouse buttons) IP65 dynamic water proof vandal proof stainless steel military keyboard with durable polymer keys. With IP65 static 38.0mm black harden resin mechanical trackball module(stainless steel trackball is optional) in 400 DPI resolutions for fast and accurate cursor movement. Rugged military PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3...F10, F11, F12 are on the top line for easy operation. High quality durable black titanium electroplated on the top of stainless steel plate, 3 mouse buttons designed for right & left clicking, strong durable polymer keys caps with laser technology for backlight out, with adjustable backlight(Red or Blue) included, stainless steel top plate with sealing gasket and threaded bolts for top panel mounting solution. FN + CLEAN key to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion. Aviation plug with USB interface. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. DIMENSIONS: 361.0mm x 145.0mm (front panel)

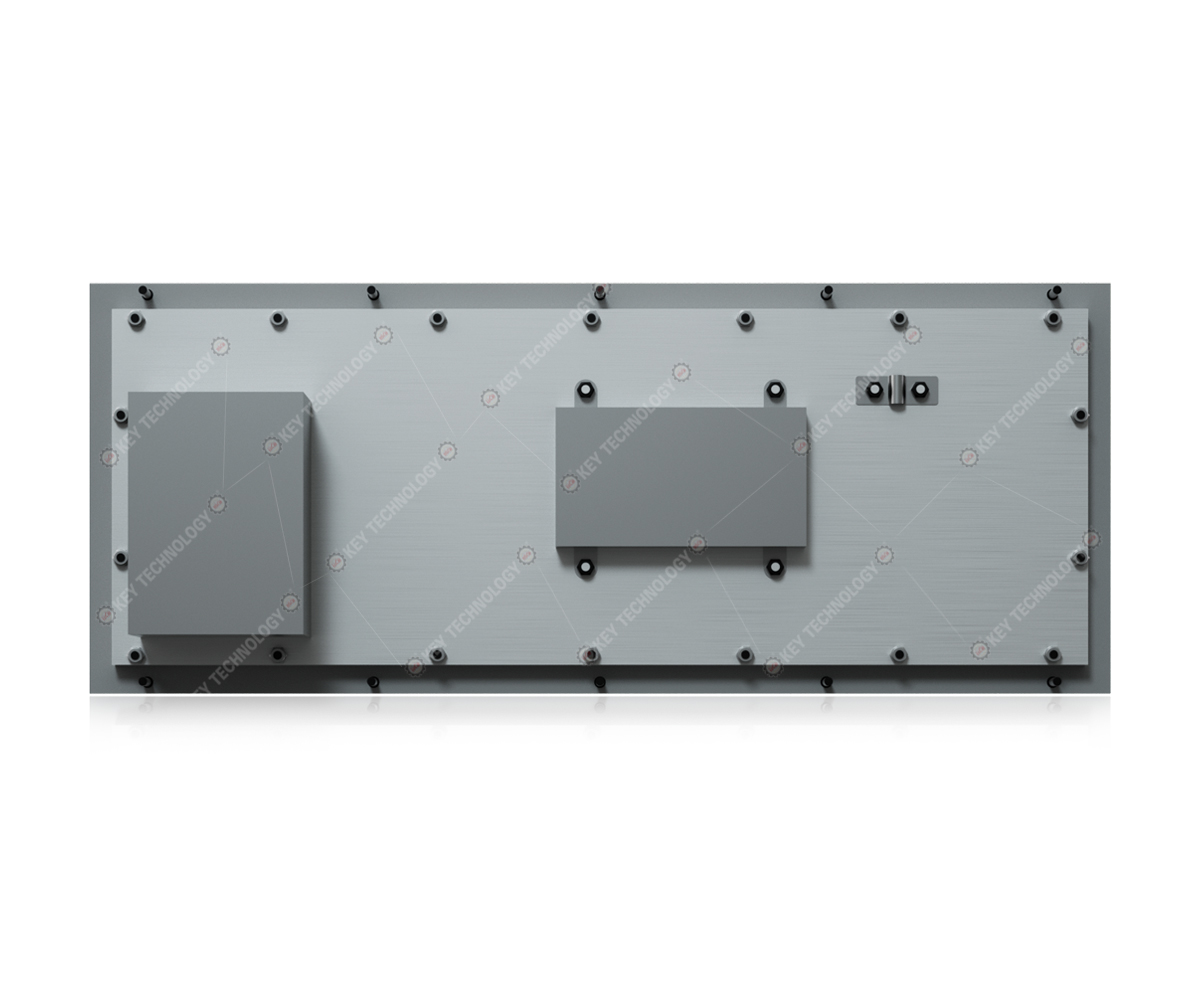

MECHANICAL DATA | Keys | 85 keys(Including 3 mouse buttons),durable polymer keys | Key top style | Protuberant rectangular keys with tactile feeling | Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar | Key travel | 1.50mm±0.10mm | Actuation Force | 2.0 N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5 N±0.20N for key 14.0mm x 28.0mm (pressure point) | Switch life | more than 5 million of operations | Trackball | 38.0mm mechanical trackball | Front Plate: | 1.5mm thickness super quality brushed stainless steel with black titanium surface treatment | Back Plate: | 1.5mm thickness super quality brushed stainless steel | G.W. | 2.0KG | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 50mA (with backlight off) ,300mA (with backlight on) | Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | EMC Standard | EN 55032:2015 EN 55035:2017 | Lifespan | > 5 years | Switch Contact Material | Carbon-on-Gold key switch technology with military PCB | Interface | Aviation plug with USB interface | Cable lengh | Standard 2.0m, customized length available | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +75℃ | Storage temperature | -45℃ to +85℃ | Operating RH | 100% | Atmospheric pressure | 60-106Kpa | Saline mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS Compliant, CE and FCC, ESD,MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | Protection Level | IP65 dynamic | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
