K-TEK-D580-KP-FN-SW+IU-360-V02

Category：	Membrane keyboard
Key Number：	106 keys (including 3 mouse buttons)
Key Travel：	0.45±0.05mm
Interface：	USB/PS2 optional
Key Switch：	Omron micro key switch technology
Protection Level：	IP65 dynamic
Mounting Solution：	Rear panel mount
Operating Temperature：	-20℃ to +65℃
Application：	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

Prev： K-TEK-M338KP-129-OTB-FN-BL-NV-151B-DWP

Next： K-TEK-M450-OTB-AVR-KP-FN-BL-NV-151B-DWP

Description

Download

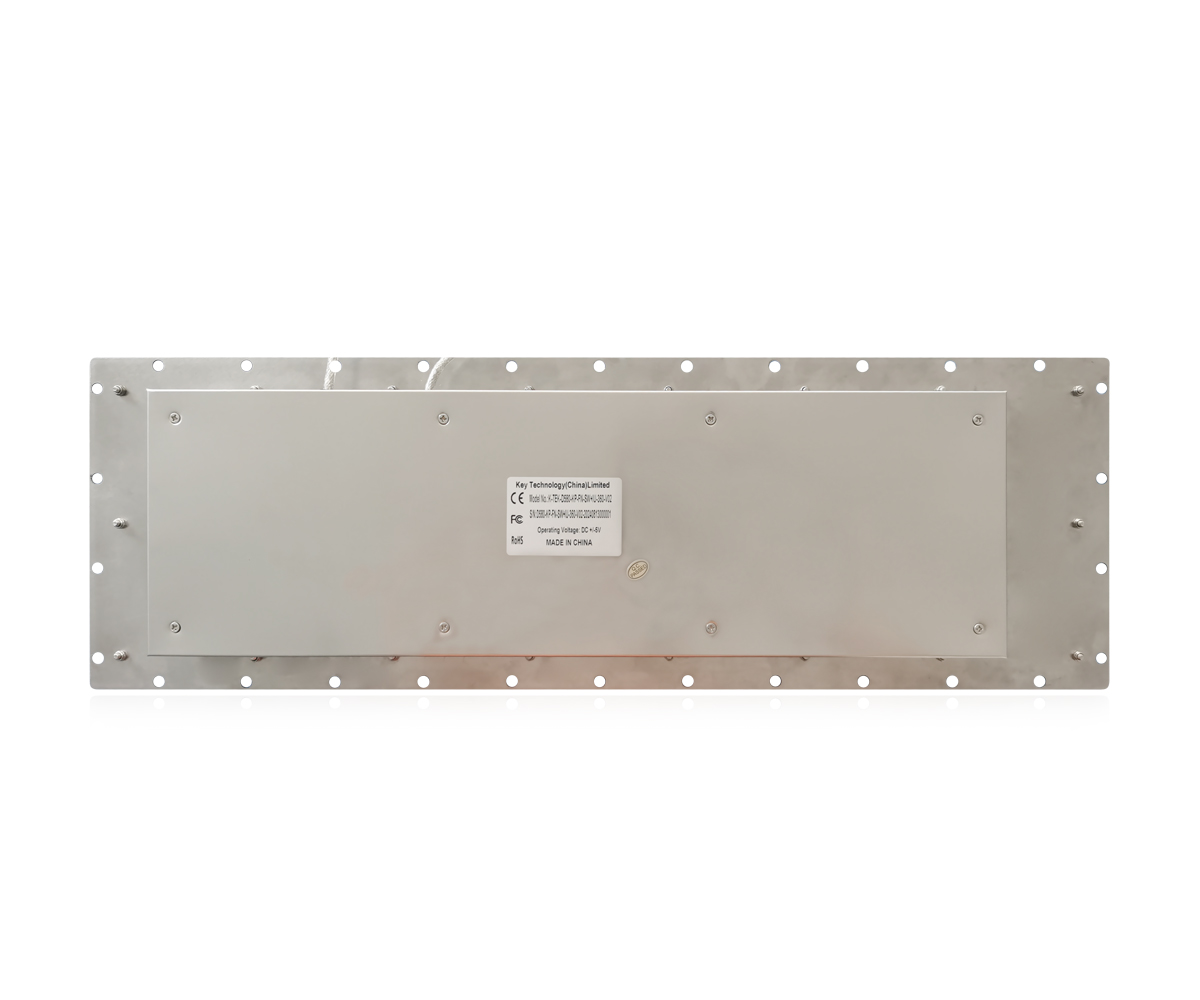

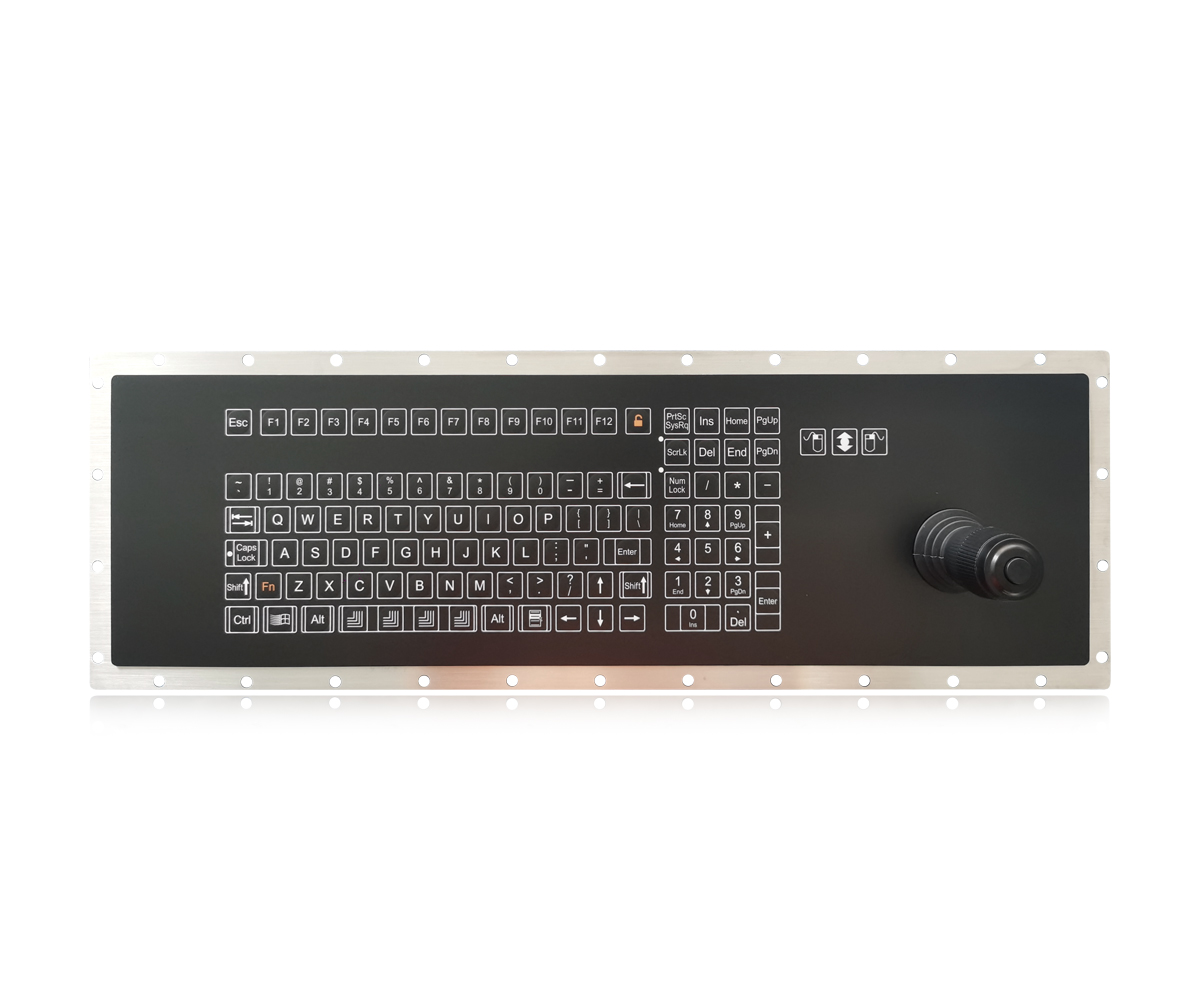

Description: 106 keys IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, with three mouse buttons for easy operation. The joystick can working in 3-axis joystick function with front and rear, up and down by moving the handle in any direction by (25 ° ± 2 °); totally sealed and ruggedized industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+LOCK combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, with ruggedized brushed stainless steel back plate with mounting holes for rear panel mounted solution.

Dimensions: 554.0 mm x 159.0 mm (front panel)

MECHANICAL DATA
Number of Keys	106 keys (including 3 mouse buttons)
Key switch Technology	OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force	2.0N±0.2N (press point)
Key Travel	0.45±0.05mm
Key switch Lifetime	1 mil. operations
Mounting Type	Rear panel mounting.
Colors	3 (white, black, grey)
G.W.	2.6Kgs
Key Dimensions (print area)	14.0mm x 14.0mm
Pointing Device	Hall joystick, joystick protocol or mouse protocol optional
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection Level	IP65 dynamic
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

K-TEK-D580-KP-FN-SW+IU-360-V02 mechanical drawing
