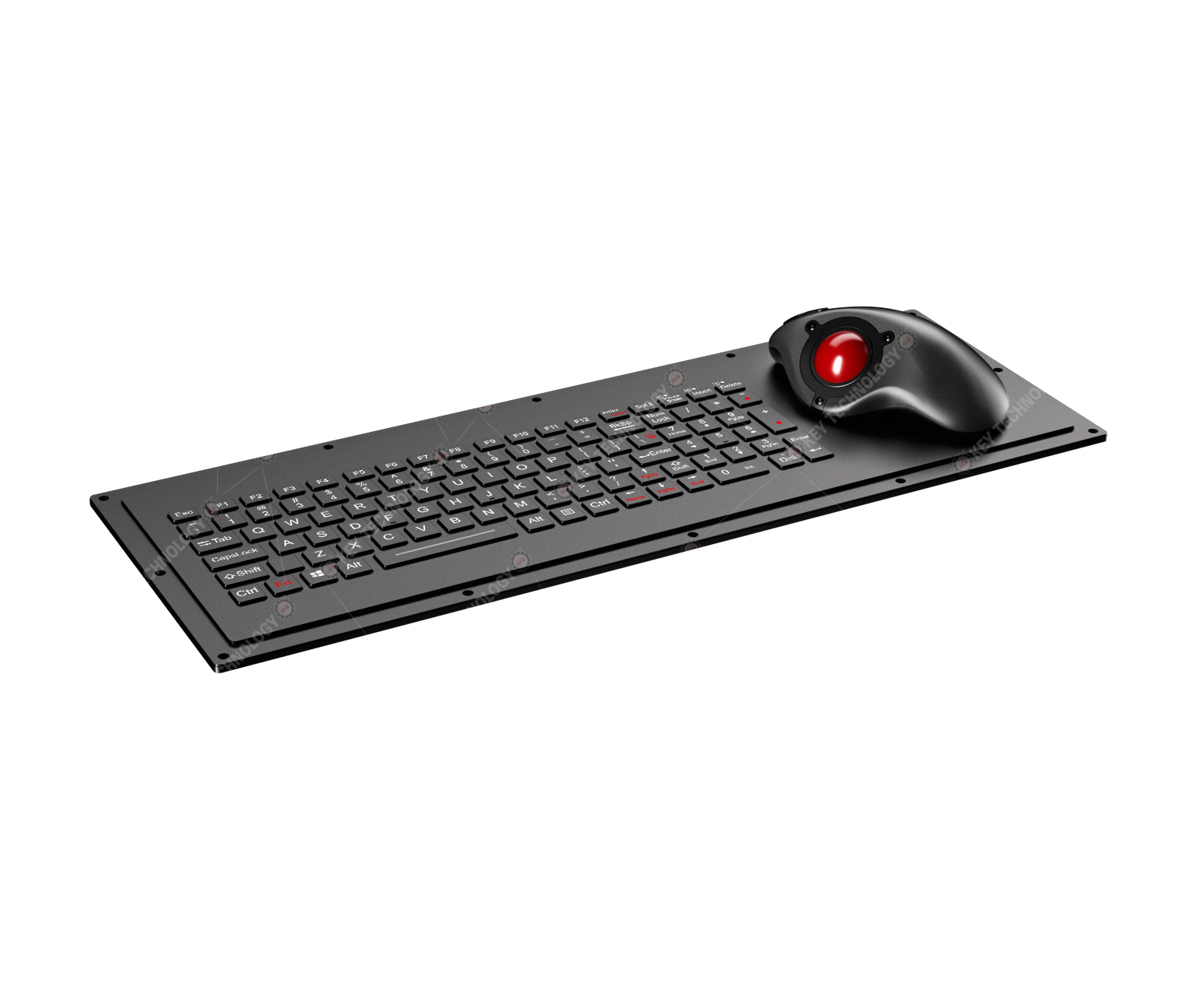

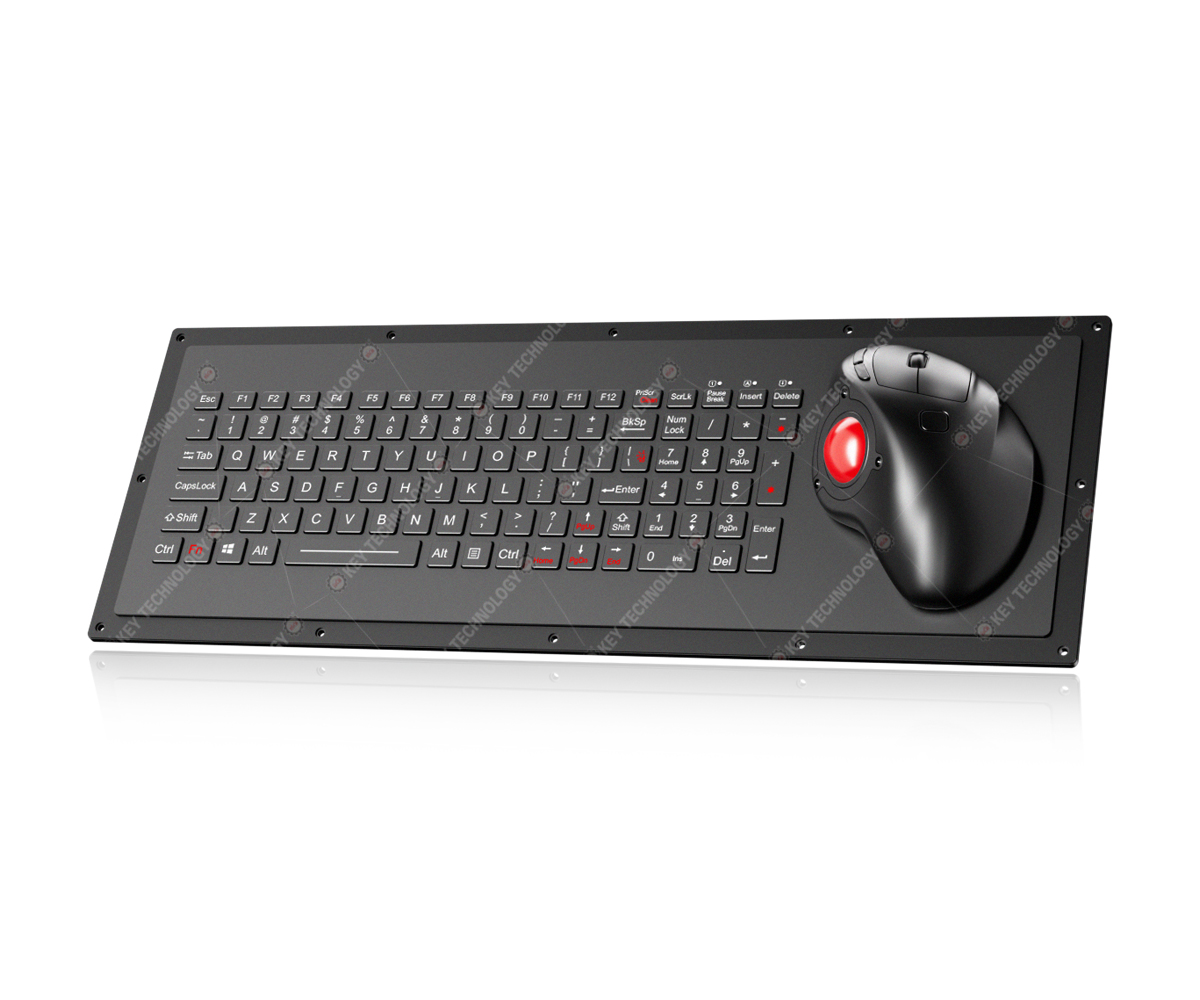

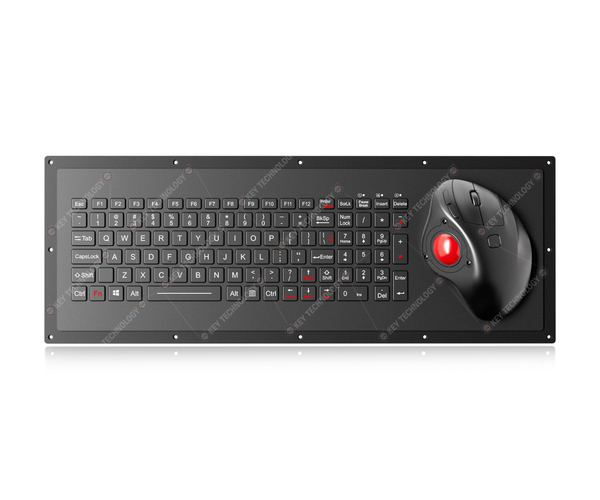

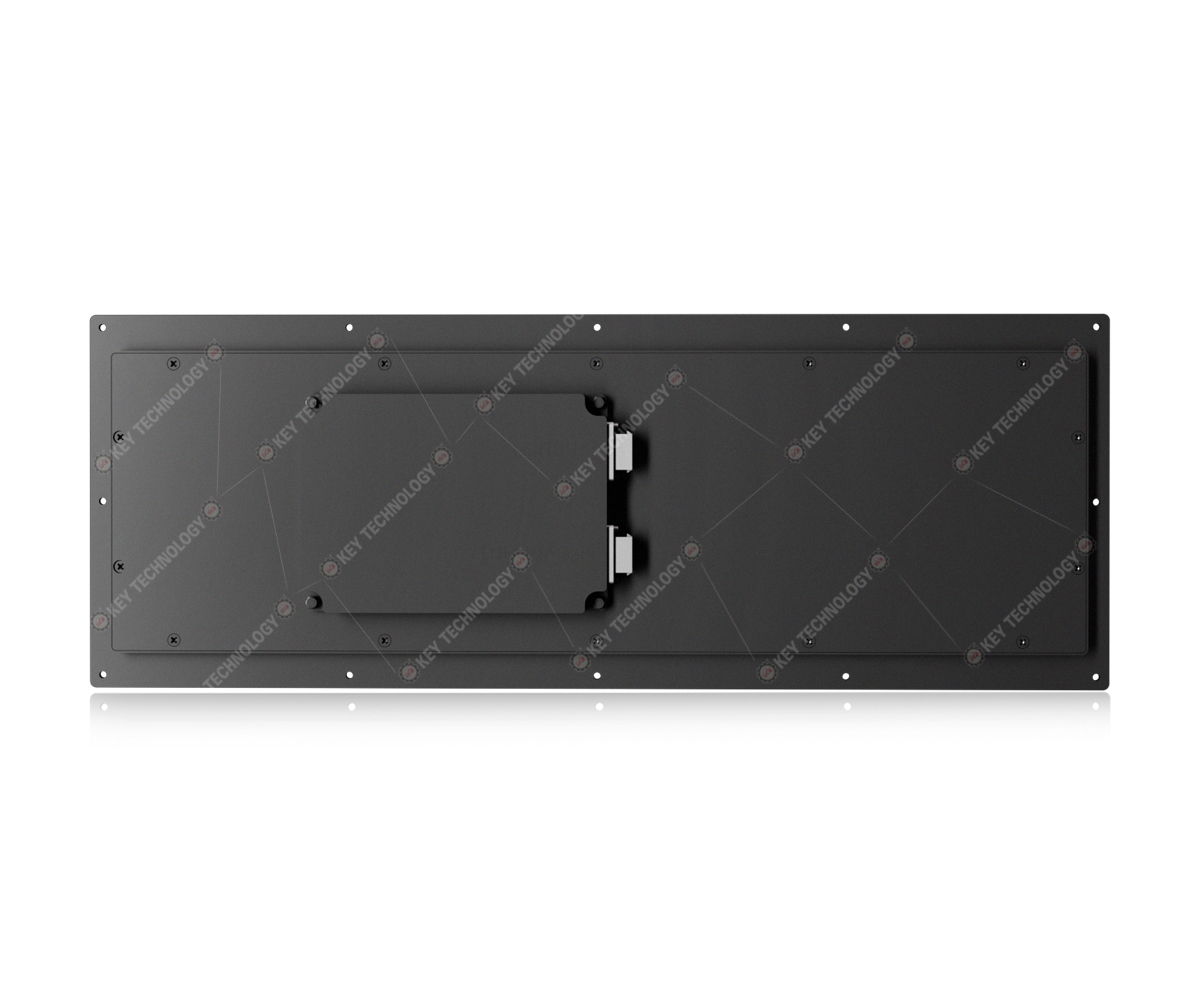

DESCRIPTION: 101 keys IP65 dynamic waterproof vandal proof aluminum alloy rugged military chiclet keyboard with durable polymer keys.The high quality rugged aluminum alloy panel is processed by CNC. Keyboard with military grade PCB meets with IEC60945-2002 EMC and environmental adaptability test, with 12 function keys F1, F2,...F12 on the top line and numerical keypad at the right side of keyboard, Integrated with IPX6 rated ergonomic rugged military anti-vibration and removable 34.0mm optical thumb ball mouse (300~1200 CPI resolutions) for fast and accurate cursor position.The whole keyboard is made of CNC aluminum alloy front plate+ PC keycaps + carbon contact as well as military grade PCB. Carbon-on-gold key switch technology with 1.20±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise. FN + Clean combination keys for easily cleaning without taking the keyboard away from PC. The whole keyboard can meet wide temperature (Operating temperature: -40℃ to +75℃). High quality durable black titanium spray-paint on the aluminum alloy panel. Rear panel with mounting holes for panel mounting. Adjustable white backlight included. Dual USB interface.Designed to meet IEC60945-2002, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H(high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. Dimension: 450.0mm x 150.0mm (front panel)
MECHANICAL DATA | Key | 101 keys, durable and robust polymer keys | Key travel | 1.20mm±0.10mm | Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 21.8mm for enter key, 14.0mm x 68.0mm for space bar | Actuation Force | 1.0N±0.2N for normal keys (pressure point ) and 1.5N±0.2N for medium keys (pressure point ) | Switch life | more than 5 million of operations | Trackball | 34.0mm anti-vibration and removable optical thumb ball | Interface | Dual USB interface | G.W. | 2.5KGs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 50mA (with backlight off), 300mA (with backlight on) | Meet MIL-STD-461G-EMC-EMI-EMS-ESD: | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc) | Lifespan | > 5 years | Switch Contact Material | Military PCB with carbon-on-gold key switch technology | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +75℃ | Storage temperature | -45℃ to +85℃ | Saline mist | 96h, IEC60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | Humidity | 100% | Atmospheric pressure | 60-106Kpa | RELIABILITY | RoHS compliant, CE, FCC, IEC60945-2002 certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H(high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | Protection Level | IP65 dynamic | Vandal resistant | IK09 | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
