K-TEK-M361-OTB-FN-DWP

Category：	Marine keyboard
Key Number：	85 keys (including 3 mouse buttons)
Key Travel：	1.50mm±0.10mm
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-20ºC to +65ºC
Ball Diameter：	38.0mm
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M361-OTB-FN-BT-DWP

Next： K-TEK-D85KP-50-ML

Description

Download

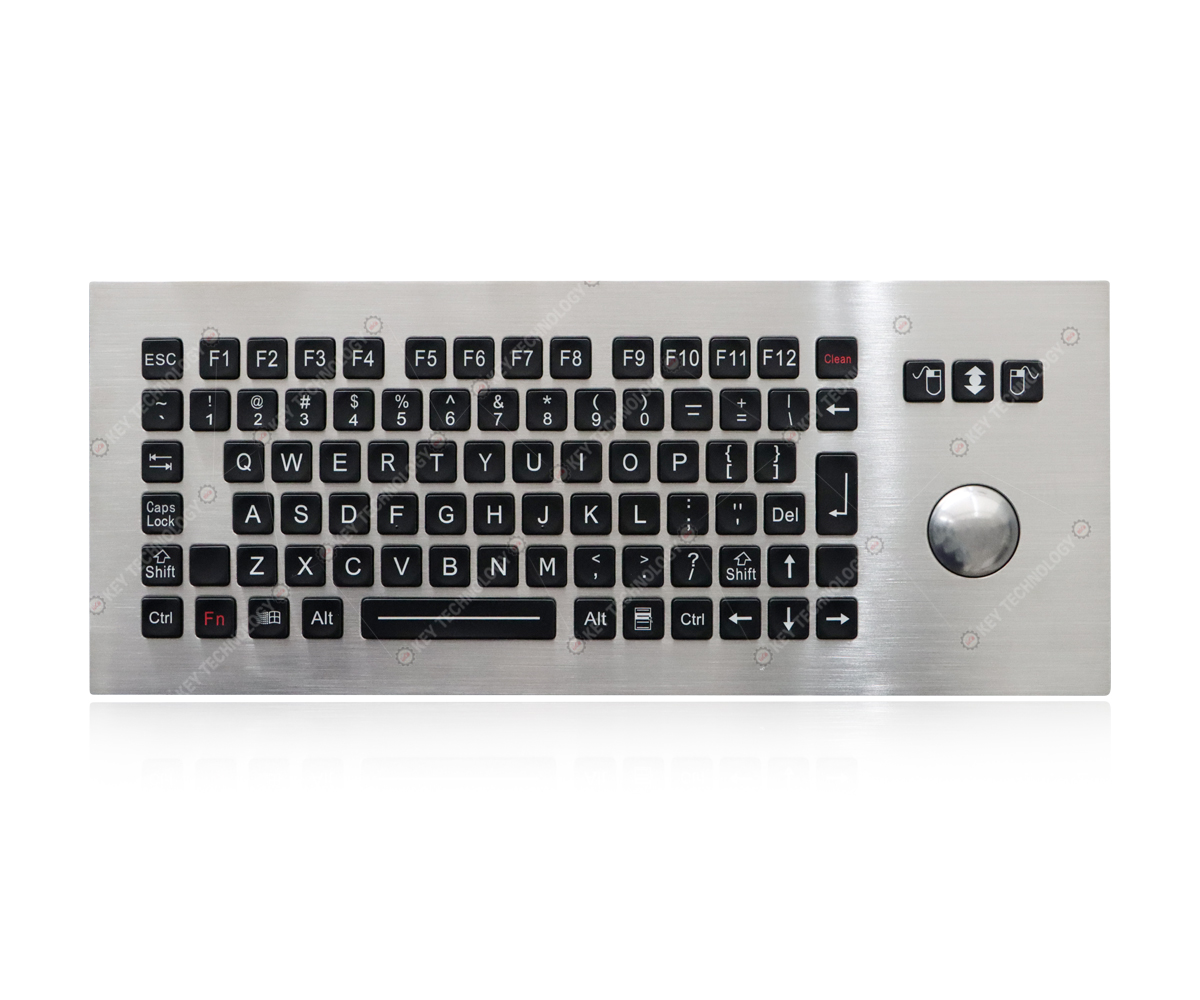

DESCRIPTION: 85 keys(Including 3 mouse buttons) compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with durable polymer keys and IP68 dynamic washable 38.0mm stainless steel optical trackball module(Silver harden resin trackball module is optional) with 800DPI resolutions for fast and accurate cursor position, with fully sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3...F10, F11, F12 are on the top line for easy operation. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, strong durable polymer keys caps with laser technology, stainless steel top plate with sealing gasket and threaded bolts for top panel mounting solution. FN + Clean combination keys lock/disable the keyboard for easy cleaning without taking away the keyboard from PC, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc,no rust risk and anti-salt spray corrosion. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 361.0mm x 145.0mm (front panel)

MECHANICAL DATA
Keys	85 keys(Including 3 mouse buttons), durable and robust polymer keys
Keys travel	1.50mm±0.10mm
Keys Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar
Actuation Force	2.0±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5±0.2N for key 14.0mm x 28.0mm (pressure point)
Switch life	more than 5 million of operations
Front Plate	1.5mm stainless steel plate
Back Plate	1.5mm stainless steel plate
Track ball:	IP68 dynamic washable 38.0mm stainless steel optical trackball module. Silver Harden Resin optical trackball module is optional.
G.W.	2.0 KGS
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	100mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology PCB
Interface	PS2, USB available
Cable length	Standard length at 2.0M. Other cable length is available.
OS	All Windows，Linux, Unix, Mac OSX，Vxworks，Android，（U-cos to be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.)
Protection Level	IP65 dynamic(Front Panel)
Vandal resistant	IK09
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M361-OTB-FN-DWP mechanical drawing
