Product Detail

K-TEK-M327KP-FN-BL-DM-DWP

Category: Chiclet Keyboard
Key Number: 101 keys
Key Travel: 1.20mm±0.10mm
Backlight: White
Interface: Dot Matrix
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)

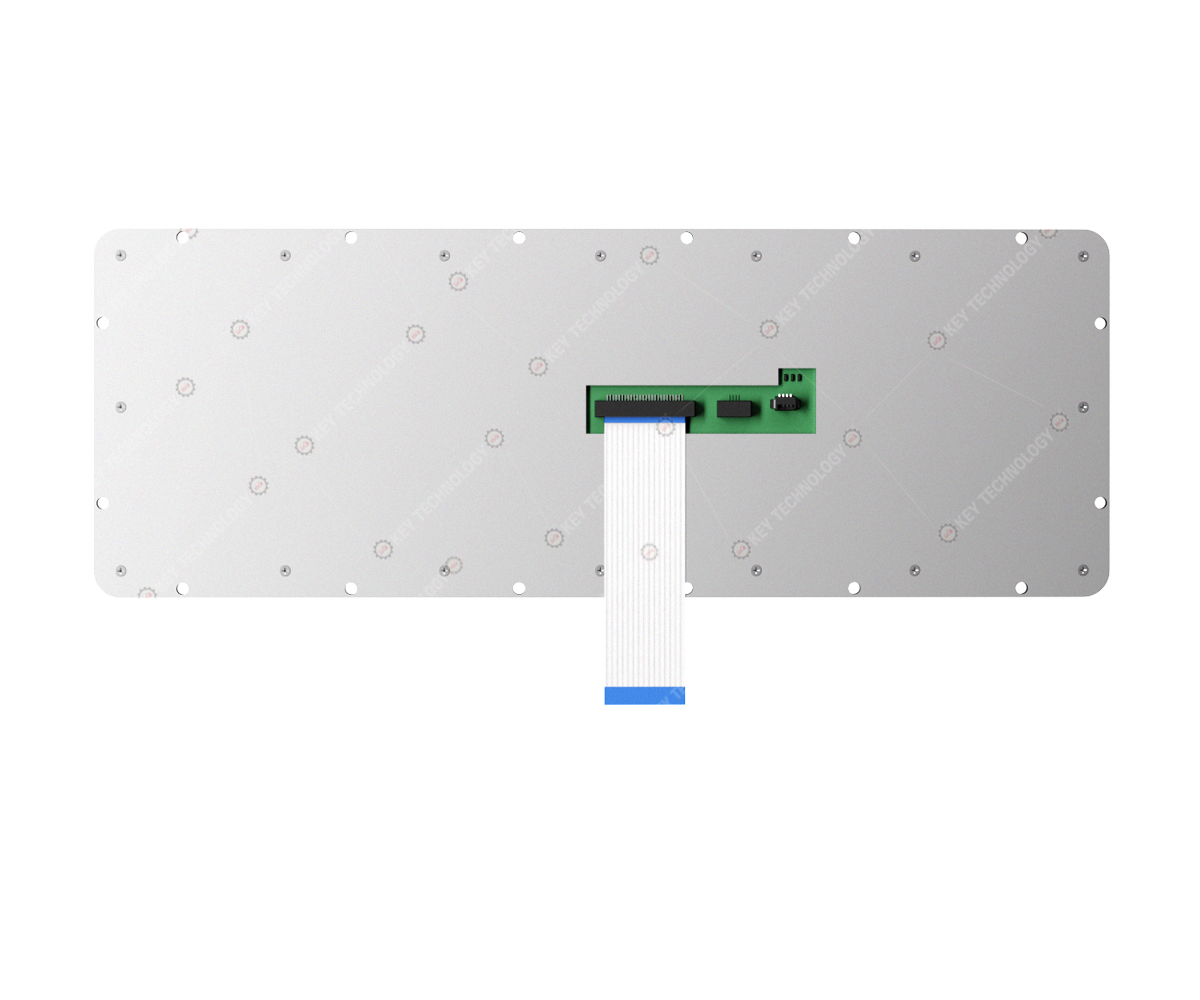

Mounting Solution: Rear panel mount
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

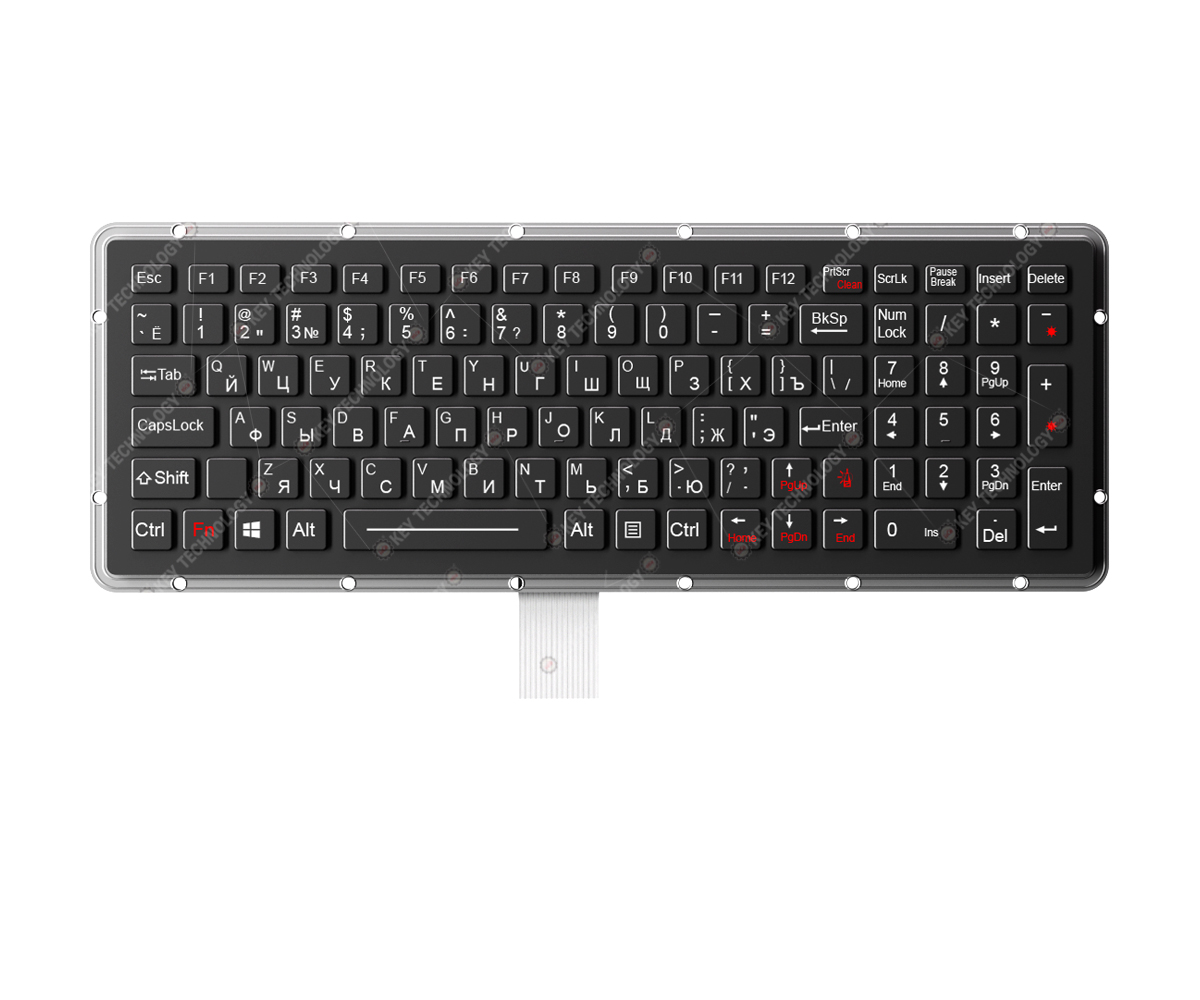

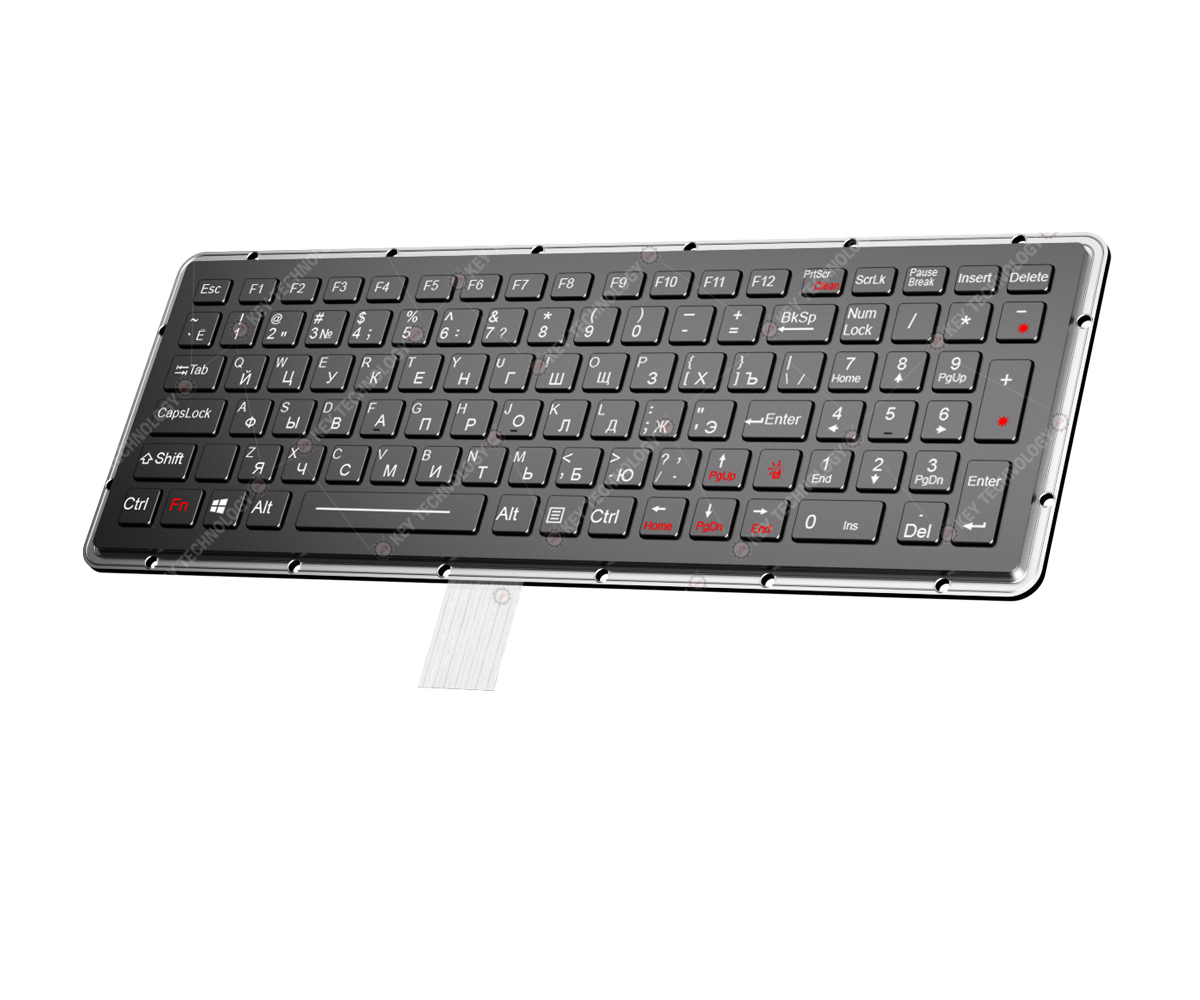

DESCRIPTION: 101 keys IP65 dynamic water proof vandal proof rugged chiclet keyboard with durable polymer keys, with ultra-thin military grade dot matrix PCB and semi-reinforced ultra-thin rugged aluminum alloy back plate. With 12 function keys F1, F2, ... F12 on the top of keyboard and individual numeric keypad on the right side of keyboard for easy operation. The whole keyboard is made of CNC aluminum alloy front plate + PC keycaps with carbon-on-gold key switch technology+military grade dot matrix PCB.With 1.20mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise,with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mistyping. Designed to meets MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

Dimensions: 327.0mm x 111.0mm (Front Panel)


MECHANICAL DATA

Actuator/keys

101 keys

Key top style

Protuberant rectangular polymer keys

Key Switch

PC keycap and carbon-on-gold rubber key switch

Key size

14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys

Key travel

1.20mm±0.10mm

Actuation Force

1.0N±0.2N for key 14.0mm x 14.0mm (pressure point ),1.5N±0.2N for key 21.8mm x 14.0mm

(pressure point)

Switch life

more than 5 million of operations

G.W.

≈1.0KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA for keyboard without backlight.
300mA for keyboard with backlight on.

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Interface

dot matrix

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75

Storage temperature

-45℃ to +85

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD, MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc), MIL-STD-461G-EMC-EMI-EMS-ESD optional

Protection Level

IP65 dynamic (front panel)

Vandal resistant

IK09

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
