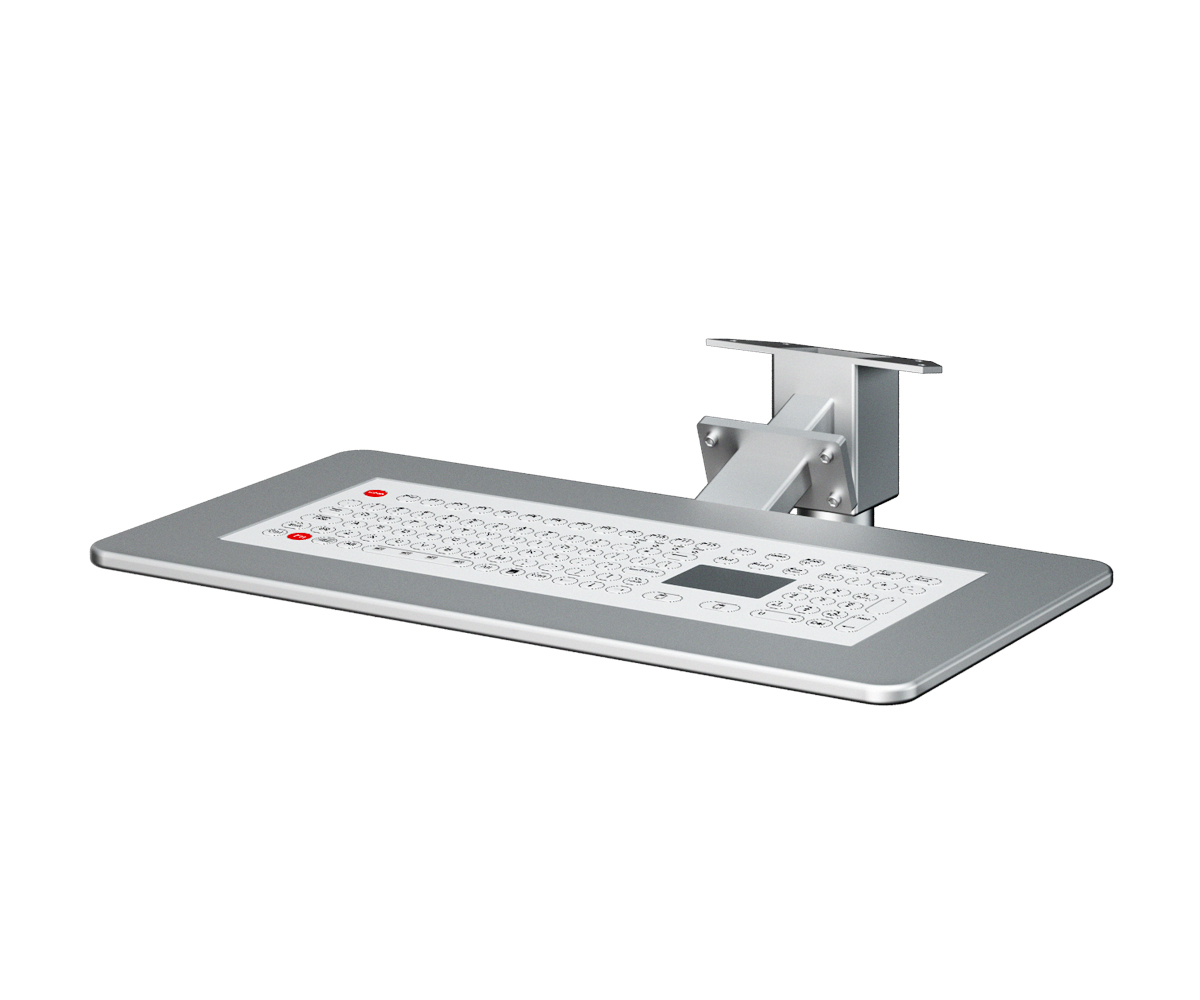

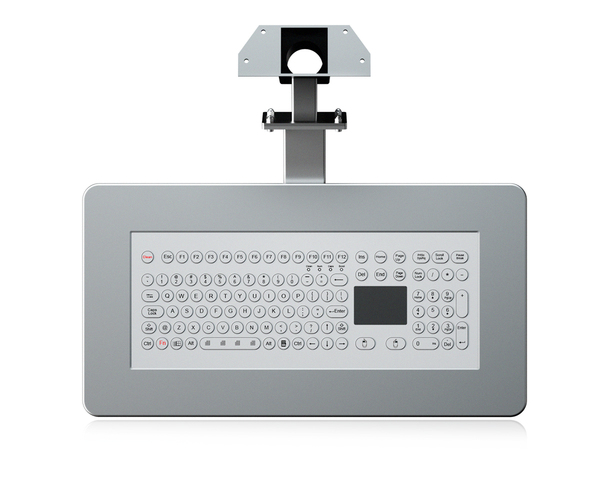

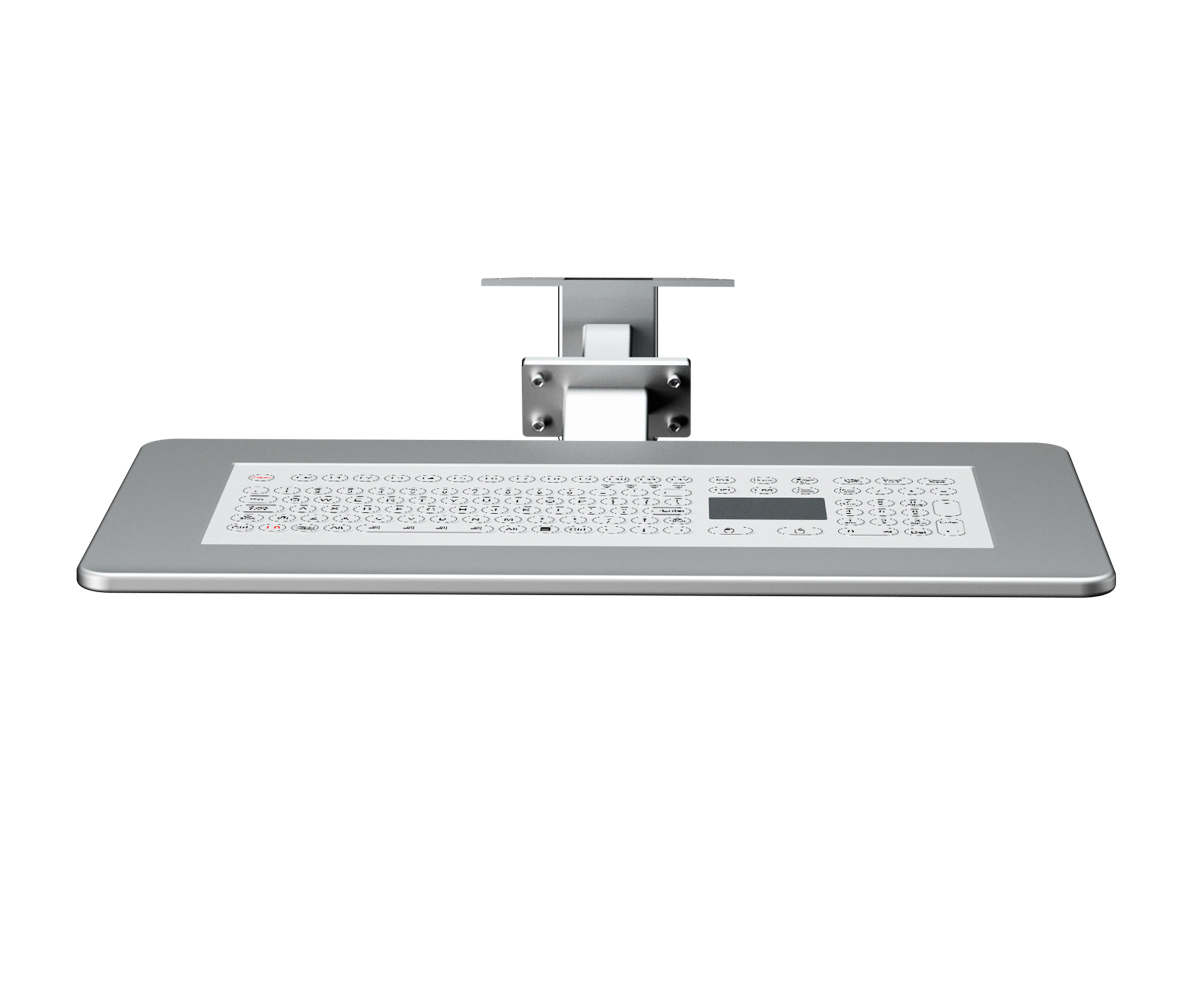

DESCRIPTION: 108 keys (including 2 mouse buttons) IP68 dynamic rated industrial membrane keyboard with full keyboard functionalities, with sealed & ruggedized tough touchpad for fast and accurate cursor position, integrated numeric keypad and 12 FN keys (F1, F2...F11, F12), industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN + Clean combination key for easy cleaning without disconnecting the keyboard and computer, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, black keyboard color optional. Super thin fixed-mount desk top version with aluminum housing with sand blasting & oxygenation surface treatment.
DIMENSIONS: 527.00mm x 277.00mm (L x W)
MECHANICAL DATA |
Number of Keys | 108 keys (including 2 mouse buttons) |
Key switch Technology | metal dome PCB with gold-on-gold key switch technology with short stroke keys (Omron micro key switch technology optional) |
Actuation Force | 3.5N±0.2N (press point) |
Key Travel | 0.45mm ± 0.05mm |
Key switch Lifetime | 1 mil. operations |
Mounting Type | Fixed-mount desk top version |
Colors | 2 (white, grey) |
G.W. | ≈3.0KGs |
Key Dimensions (print area) | 13.0mm x 13.0mm |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
Method | capacitive |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5VDC ± 0.25V |
Current rating (active mode) | < 17 mA |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS, CE, FCC |
Protection Level | IP68 dynamic |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
