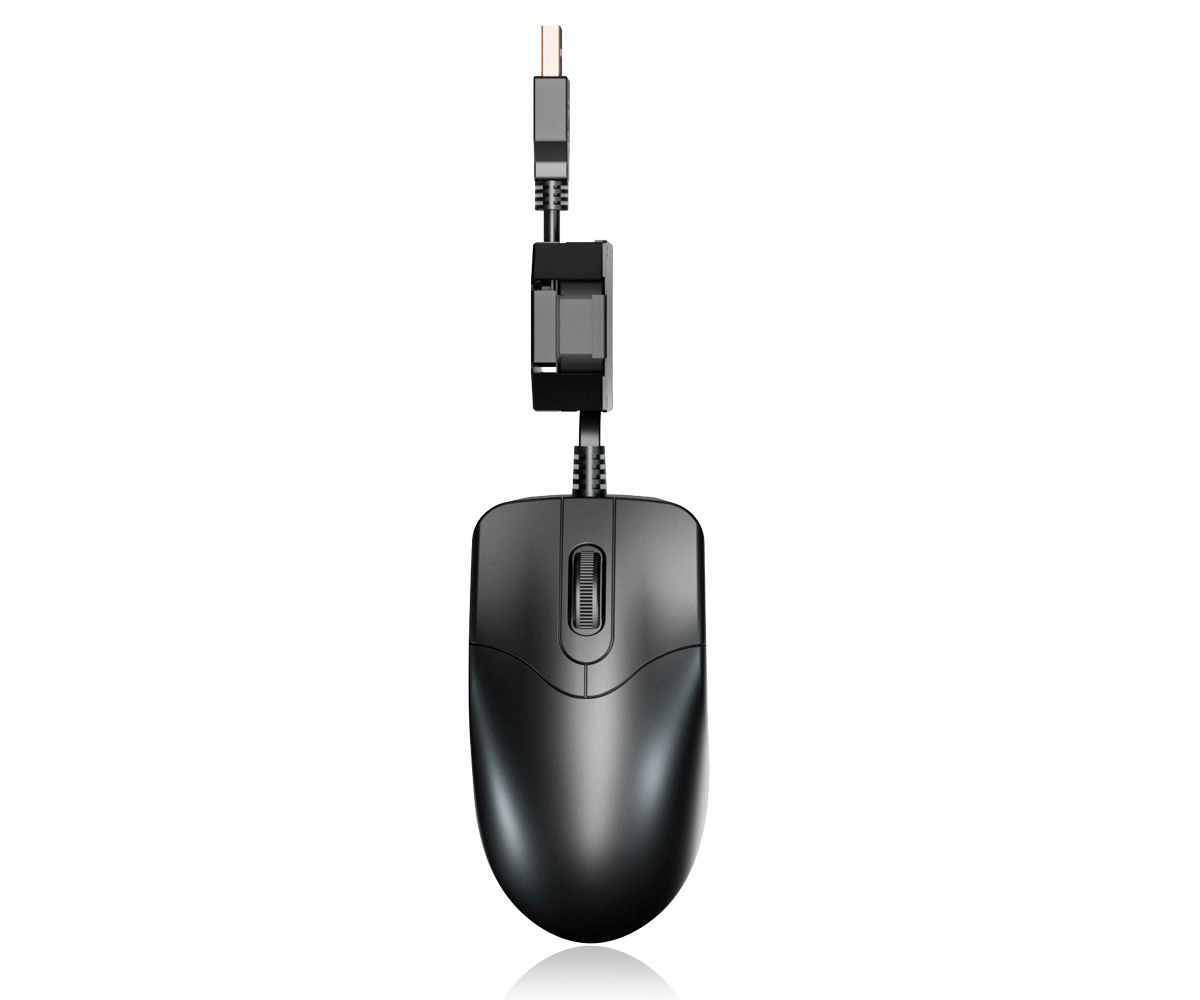

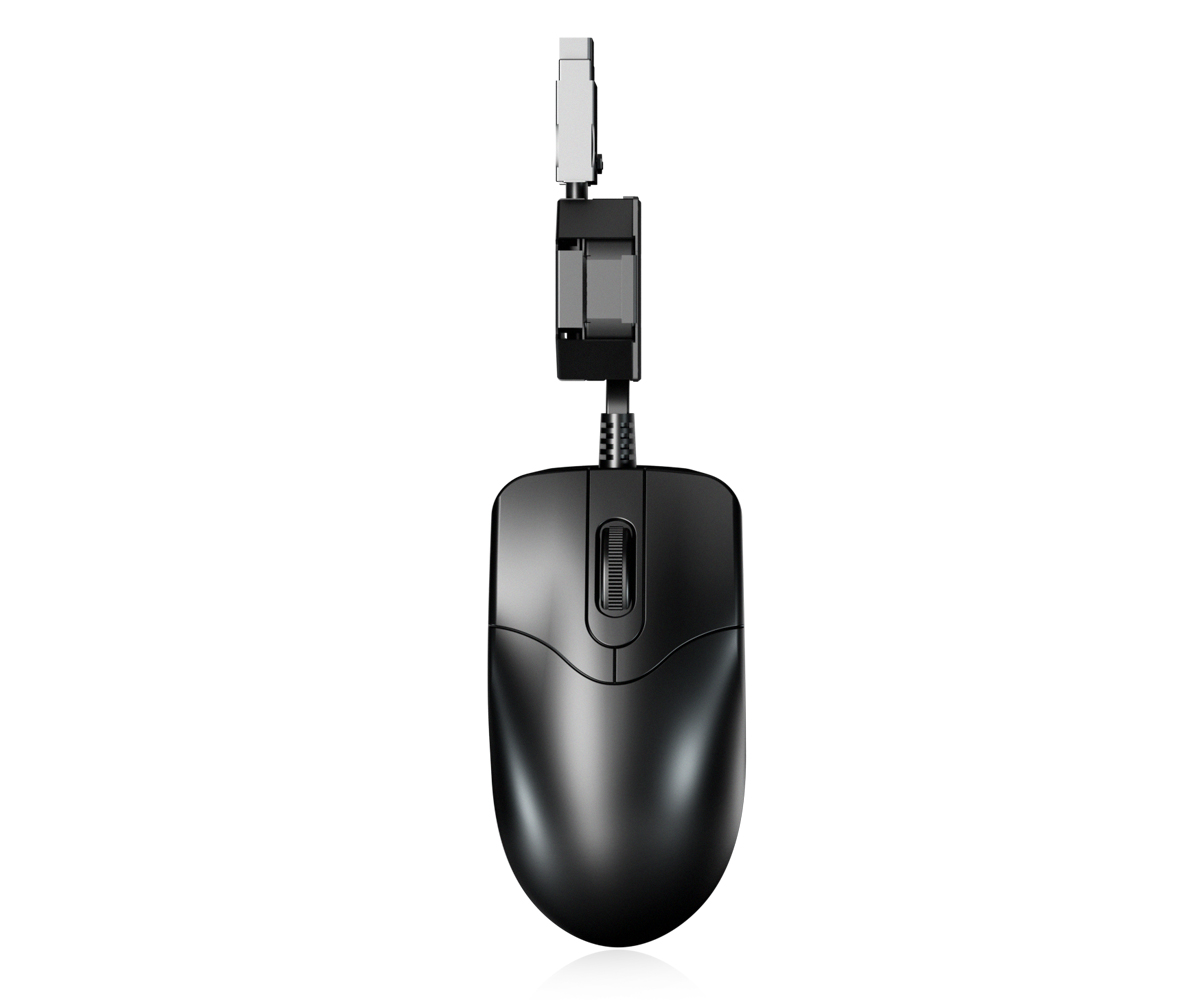

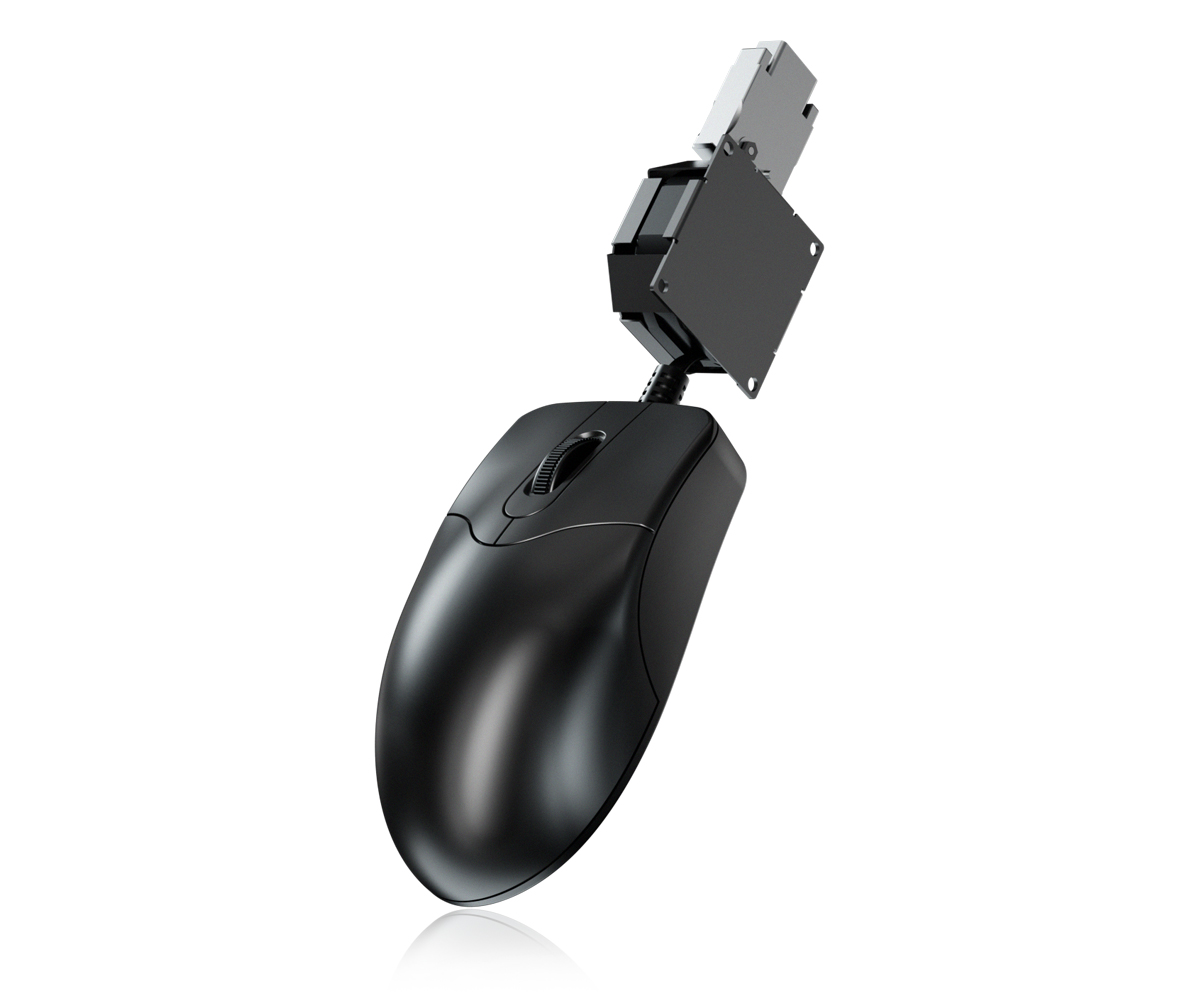

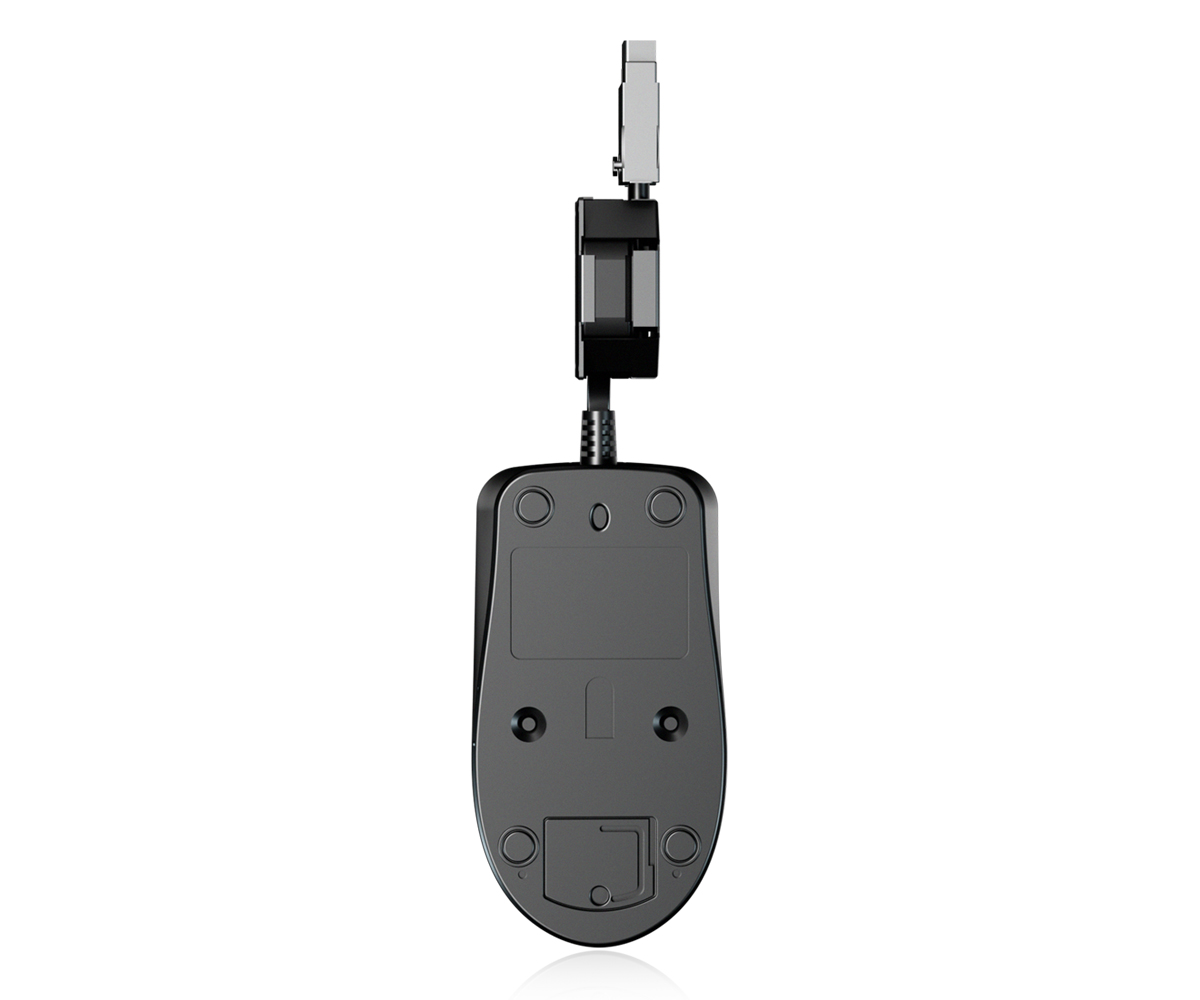

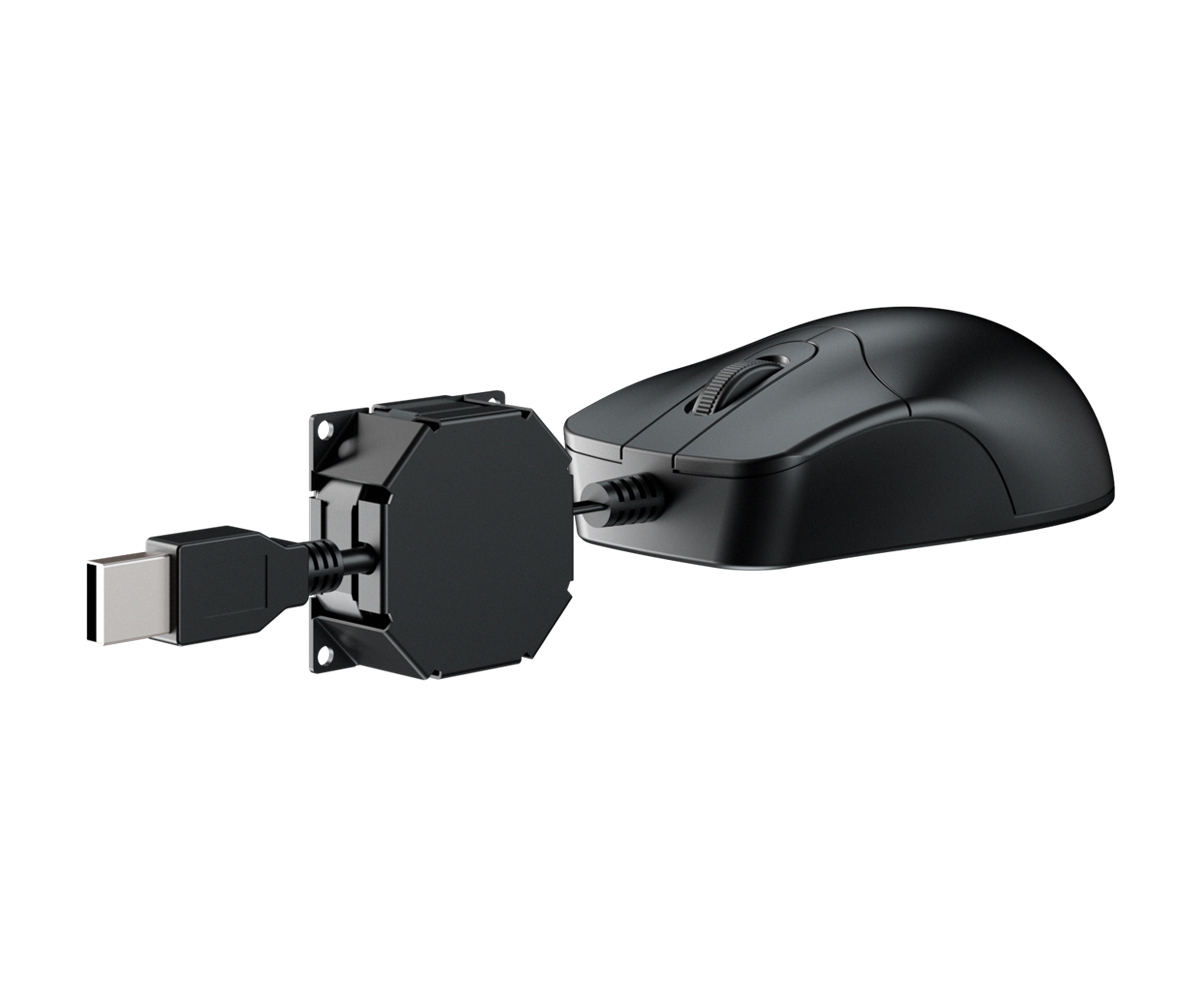

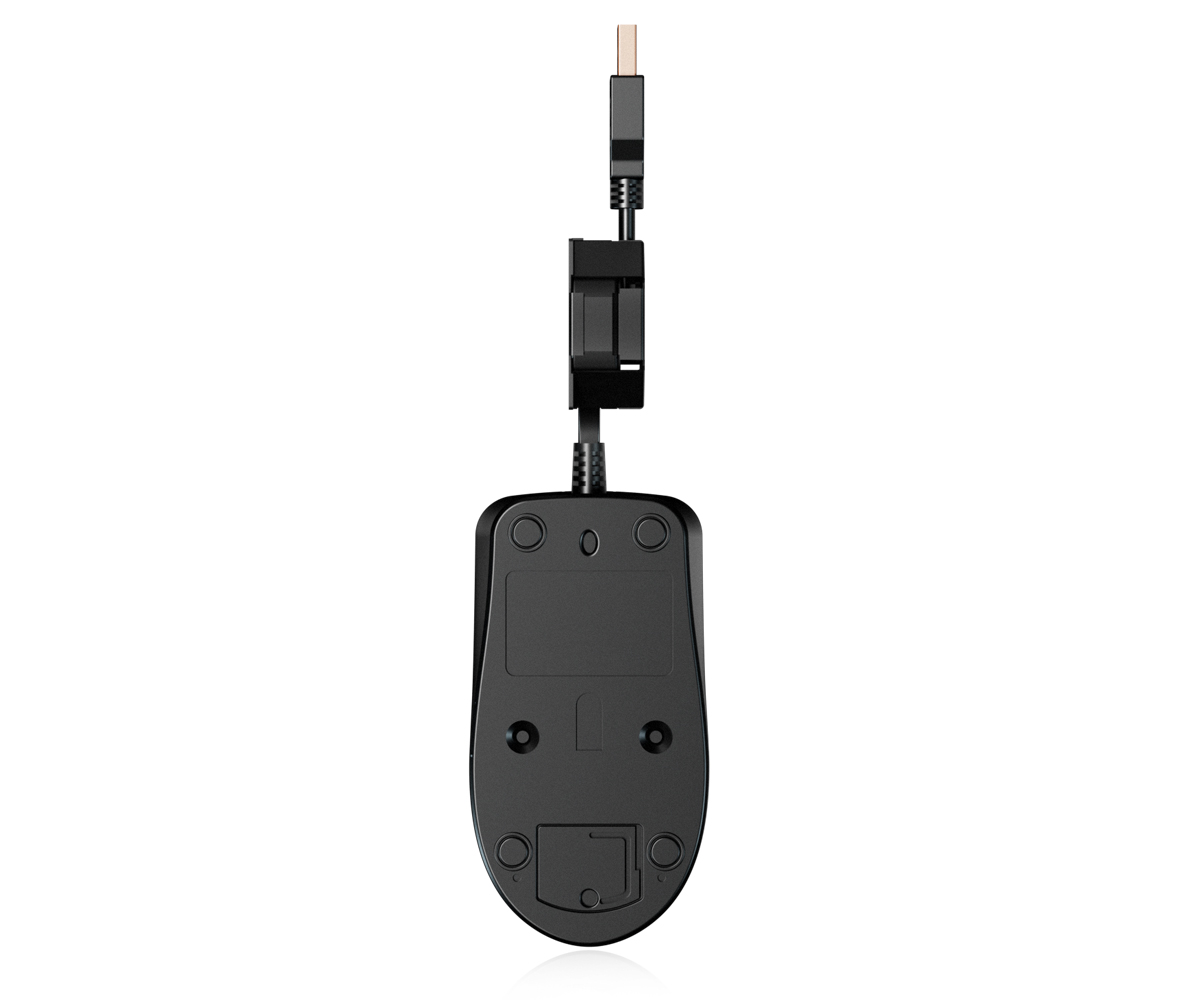

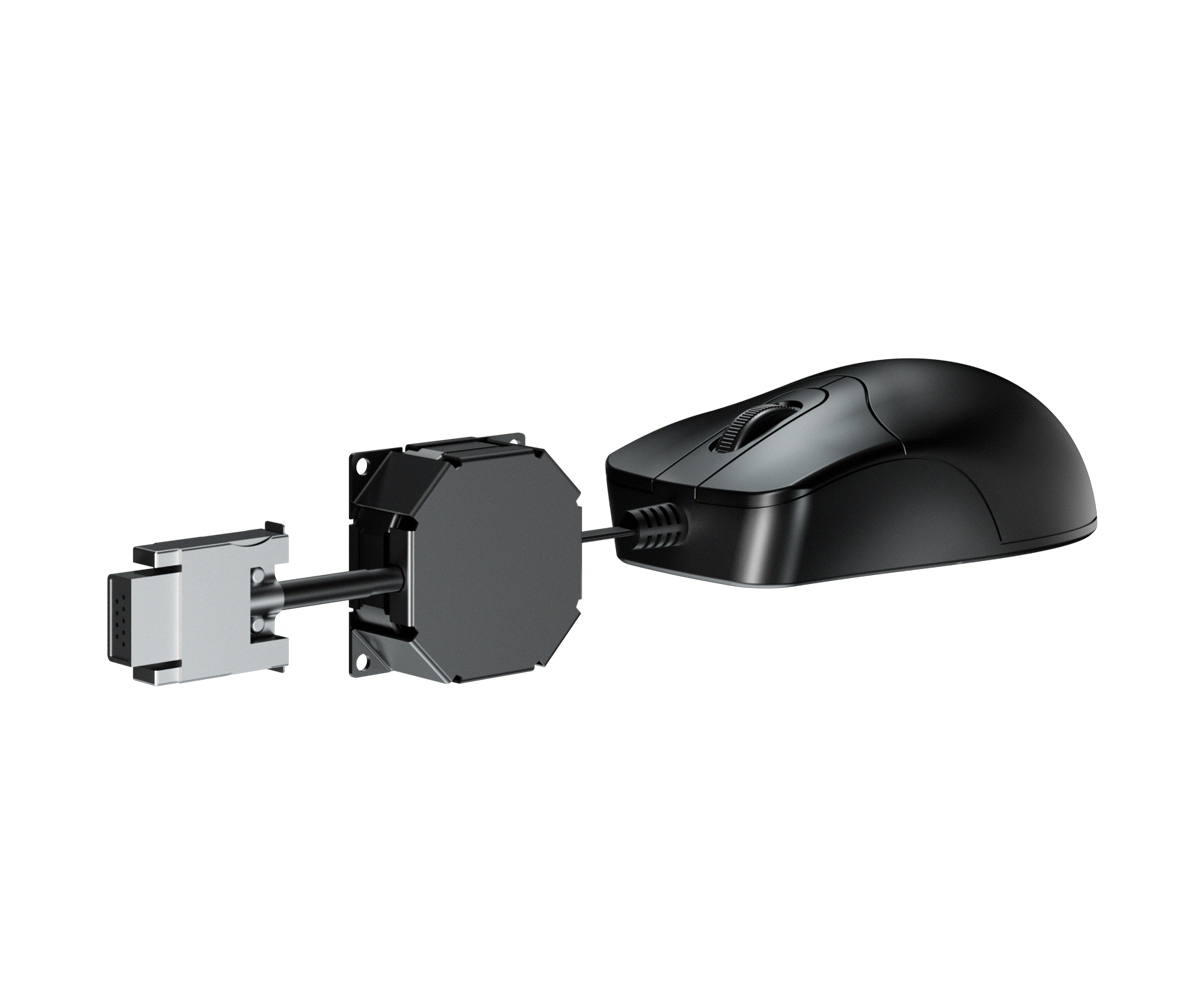

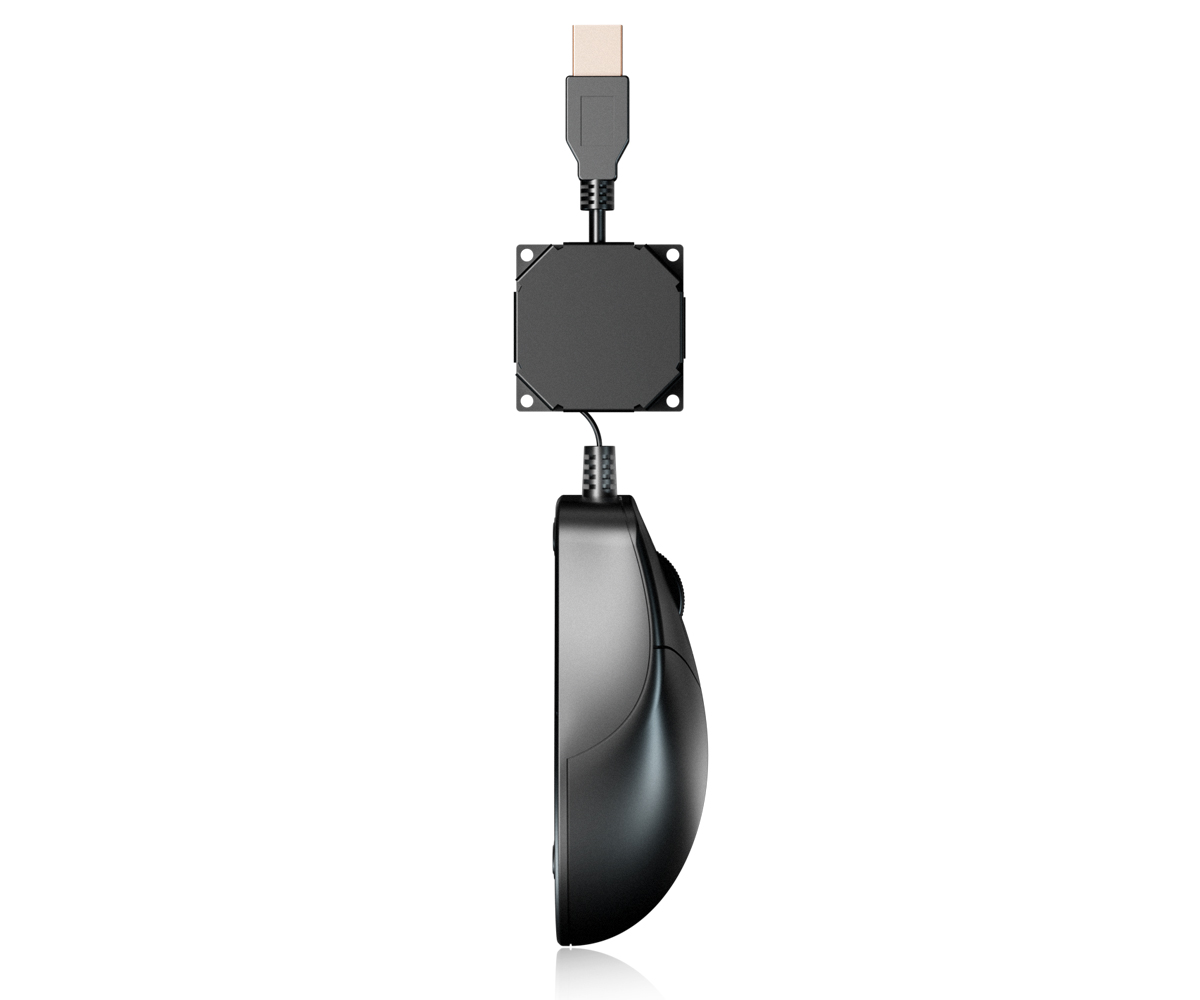

DESCRIPTION: IP68 dynamic rated sealed and rugged waterproof professional optical mouse, DPI can be adjusted and switched by adjustable button, built-in wide temperature military grade PCB electronics controller, with extremely good tactile feeling for left and right clicking, durable coating & antimicrobial surface to withstand most chemicals and liquids under harsh environments. The mouse is full sized and features a 4-buttons which are designed for right & left clicking and scrolling up and down key, as well as one key to adjust DPI; IP68 waterproof and dust proof rating, with adjustable extension USB cable. Which meets MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low temperature, low pressure, humidity, vibration, shock, temperature shock, drop test etc), as well as critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity; Aviation plug optional. DIMENSIONS: 110.0mm x 58.3mm x 37.4mm (L x W x H)
MECHANICAL DATA | Actuator/keys | 4 keys (Left+right mouse key+Scrolling key+DPI adjustable key) | Key Switch Technology | Micro switch + plastic mouse buttons | Key Lifespan | ≤3 millions actuation | Actuation Force | 0.55±0.15N | Key Gram Force | 50±10gf | Resolution | 400-800-1200-1600DPI | Actuation Pressure | 1.0N-2.0N | Rotary Encoder Lifespan | ≥0.8 millions scrolling | G.W. | 0.25KGs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | ≈80mA | Meet MIL-STD-461G (EMC, EMI, EMS, ESD) | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.) | Lifespan | > 5 years | Interface | USB, other interfaces can be customized | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +55℃ | Storage temperature | -45℃ to +60℃ | Operating RH | 95% | Atmospheric pressure | 60-106Kpa | Saline mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS Compliant, CE and FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.) | Protection Level | IP68 | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, GCS etc. |
|
