K-TEK-M58-OMS-DT-DWP-EC

Category：	Waterproof mouse
Key Number：	4 keys
Interface：	USB
Key Switch：	Micro switch + plastic mouse buttons
Protection Level：	IP68
Mounting Solution：	Flat desk top solution
Operating Temperature：	-40ºC to +55ºC
Application：	Industrial, Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, GCS, medical and pharmaceutical etc.

Prev： K-TEK-M58-OMS-NV-151B-DT-DWP-EC

Next： K-TEK-V340TP-FN-BL-SC-FC-ML-DWP

Description

Download

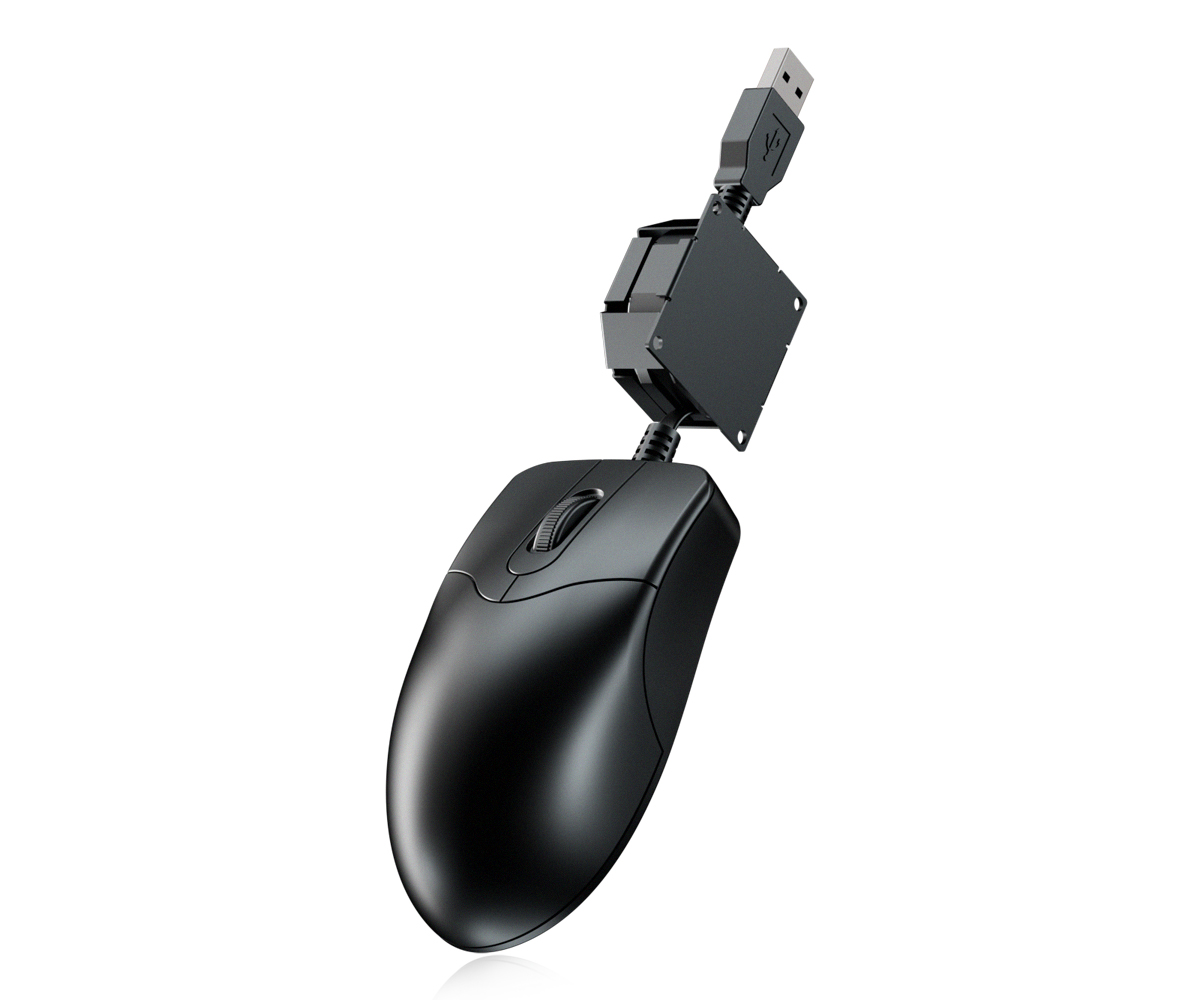

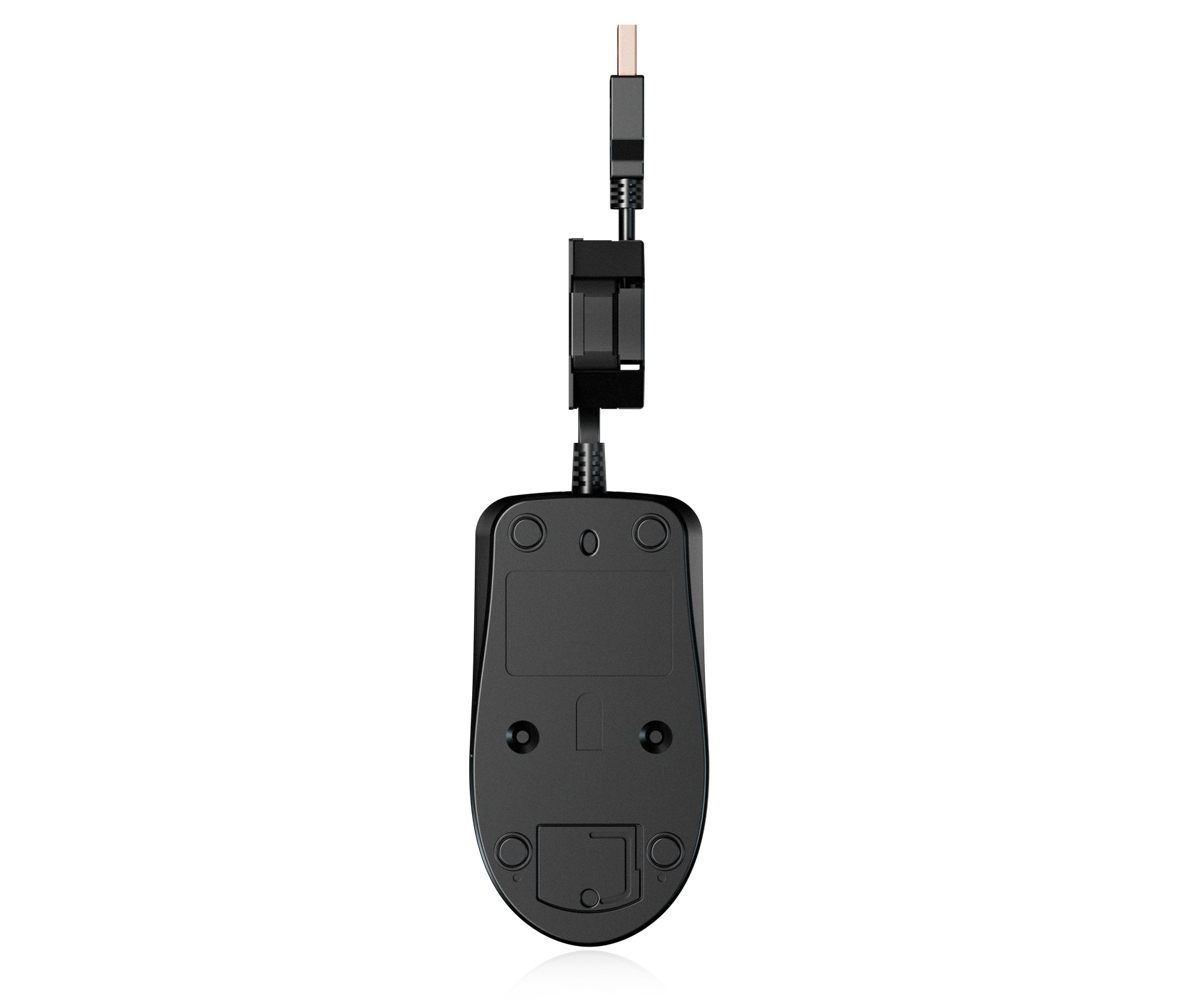

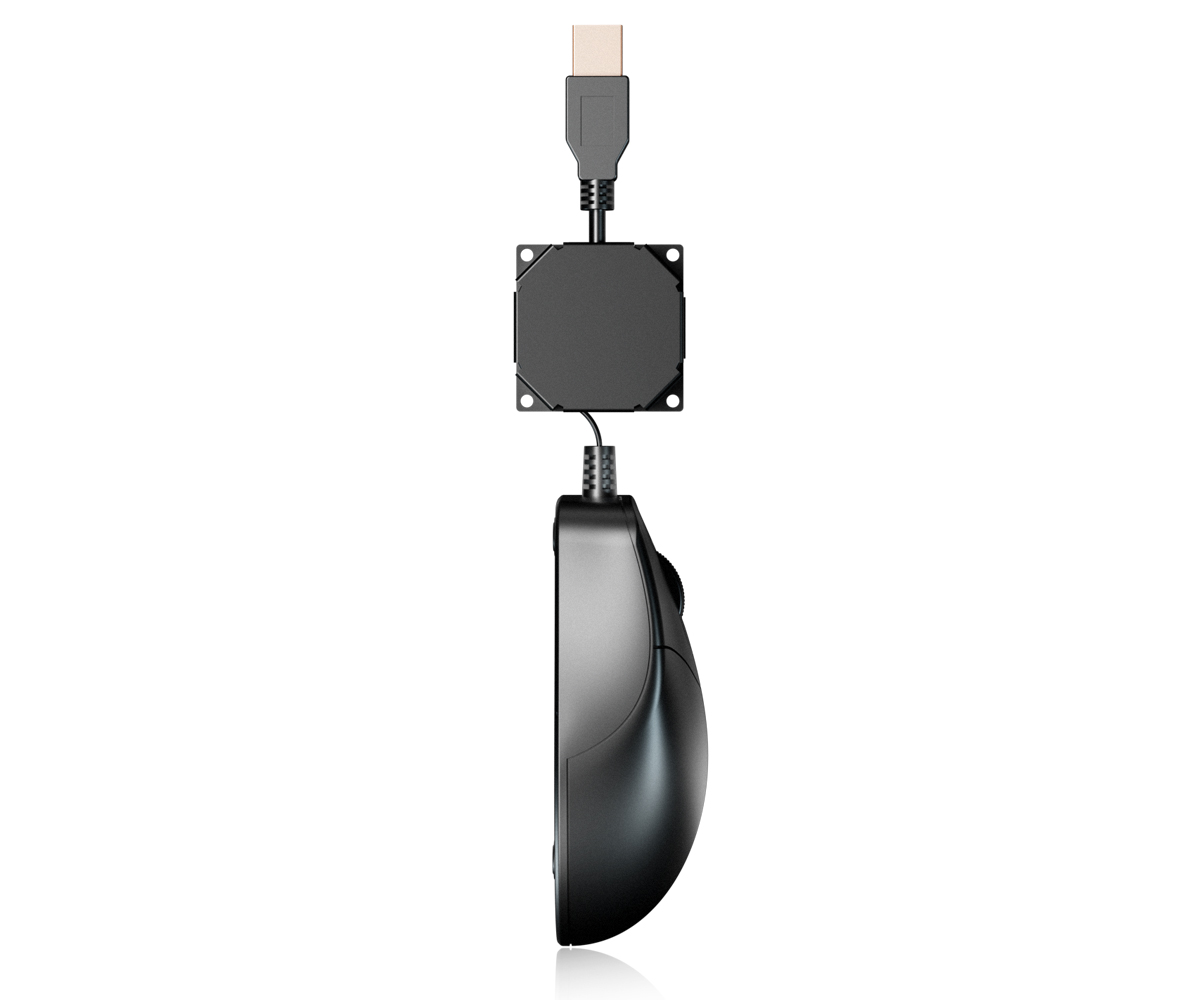

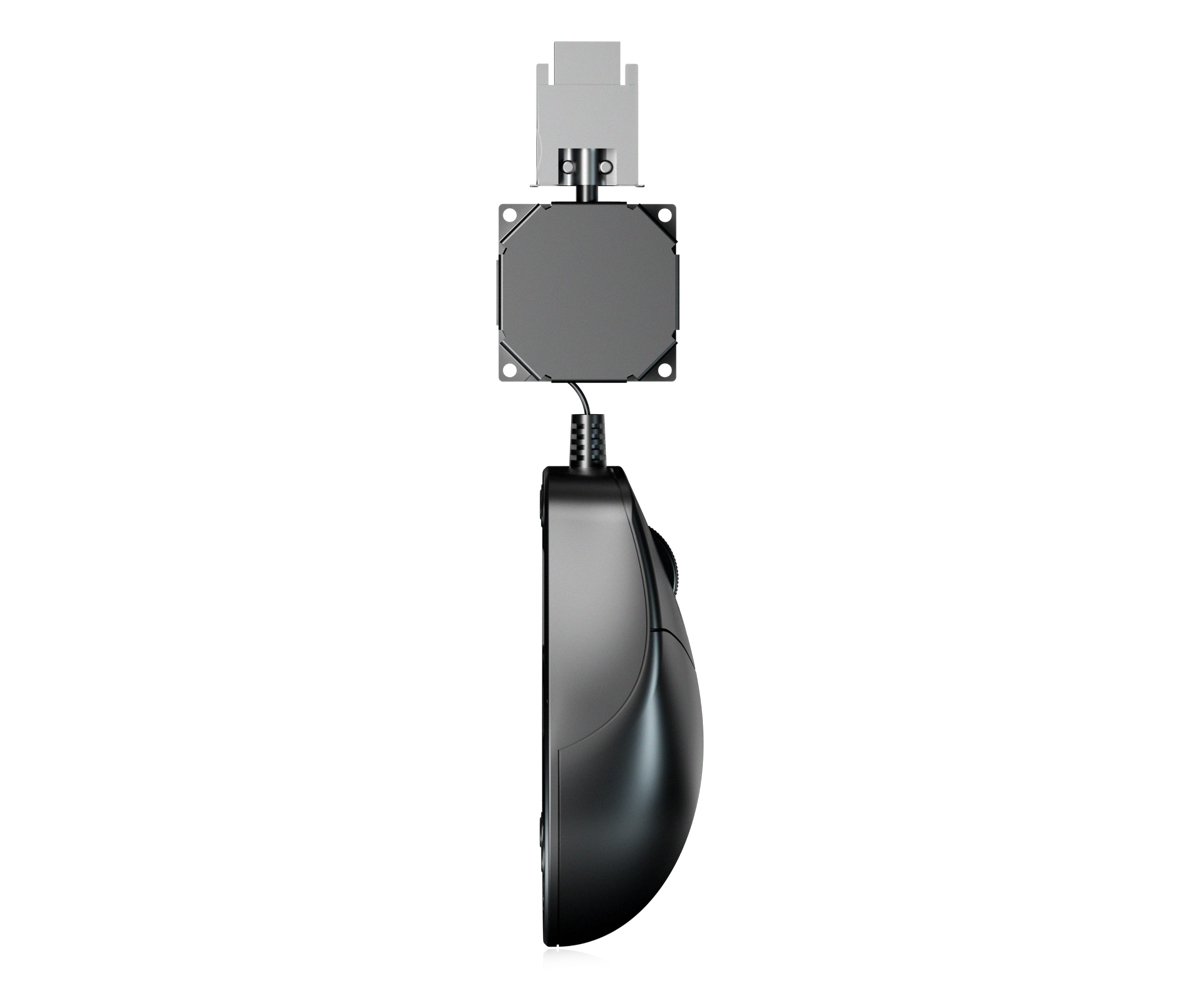

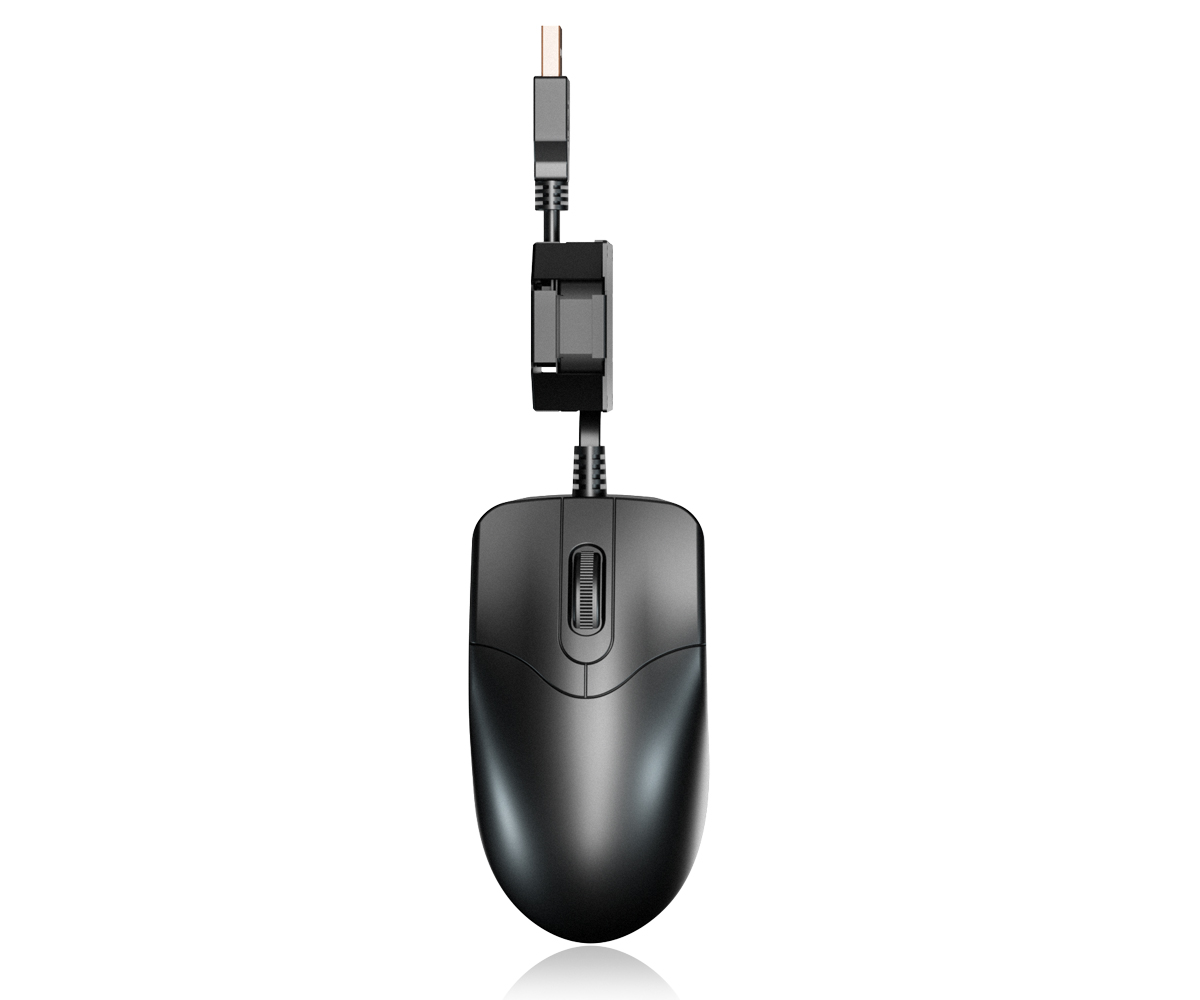

DESCRIPTION: IP68 dynamic rated sealed and rugged waterproof professional optical mouse, DPI can be adjusted and switched by mouse button,with

extremely good tactile feeling for left and right clicking, durable coating & antimicrobial surface to withstand most chemicals and liquids under harsh

environments. The mouse is full sized and features which are designed for right & left clicking and scrolling up and down key, as well as one adjustable

key to adjust DPI; with adjustable extension USB cable. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration,

shock, salt spray, temperature shock, rain,dust, fungus, solar radiation etc.), as well as military standards: reliability, safety, maintainability, testability,

supportability, environmental adaptability, stability, compatibility, consistency, and continuity; MIL-STD-461G-EMC-EMI-EMS-ESD optional, aviation plug optional.

DIMENSIONS: 110.0mm x 58.3mm x 37.4mm (L x W x H)

MECHANICAL DATA
Actuator/keys	4 keys (Left+right mouse key+Scrolling key+DPI adjustable key)
Key Switch Technology	Micro switch + plastic mouse buttons
Actuation Force	0.55±0.15N
Key Gram Force	50±10gf
Resolution	400-800-1200-1600DPI
Actuation Pressure	1.0N-2.0N
Rotary Encoder Lifespan	≥0.8 millions scrolling
G.W.	0.25KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	≈80mA
EMC standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +55℃
Storage temperature	-45℃ to +60℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.)
Protection Level	IP68
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, GCS, medical and pharmaceutical etc.
