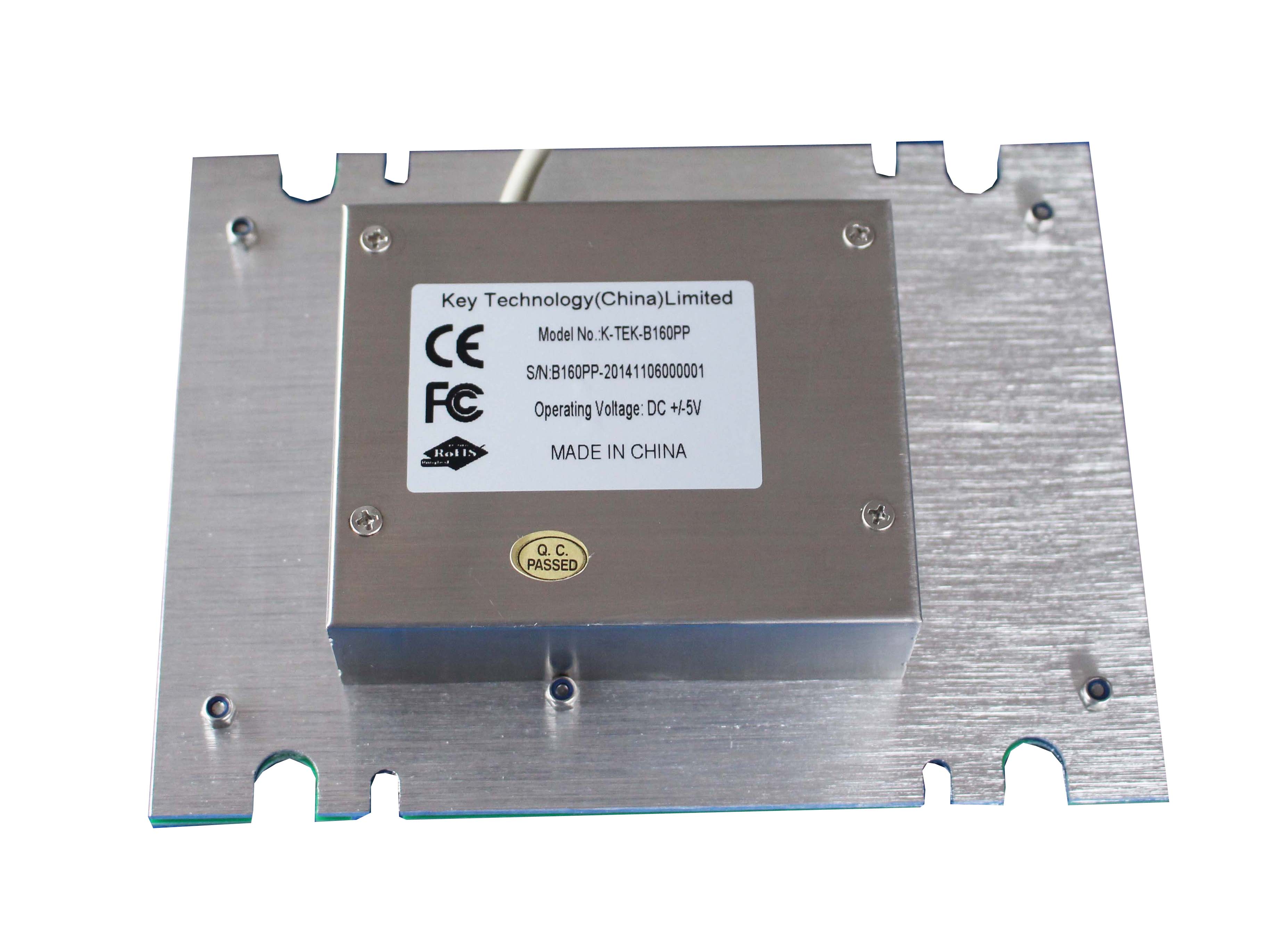

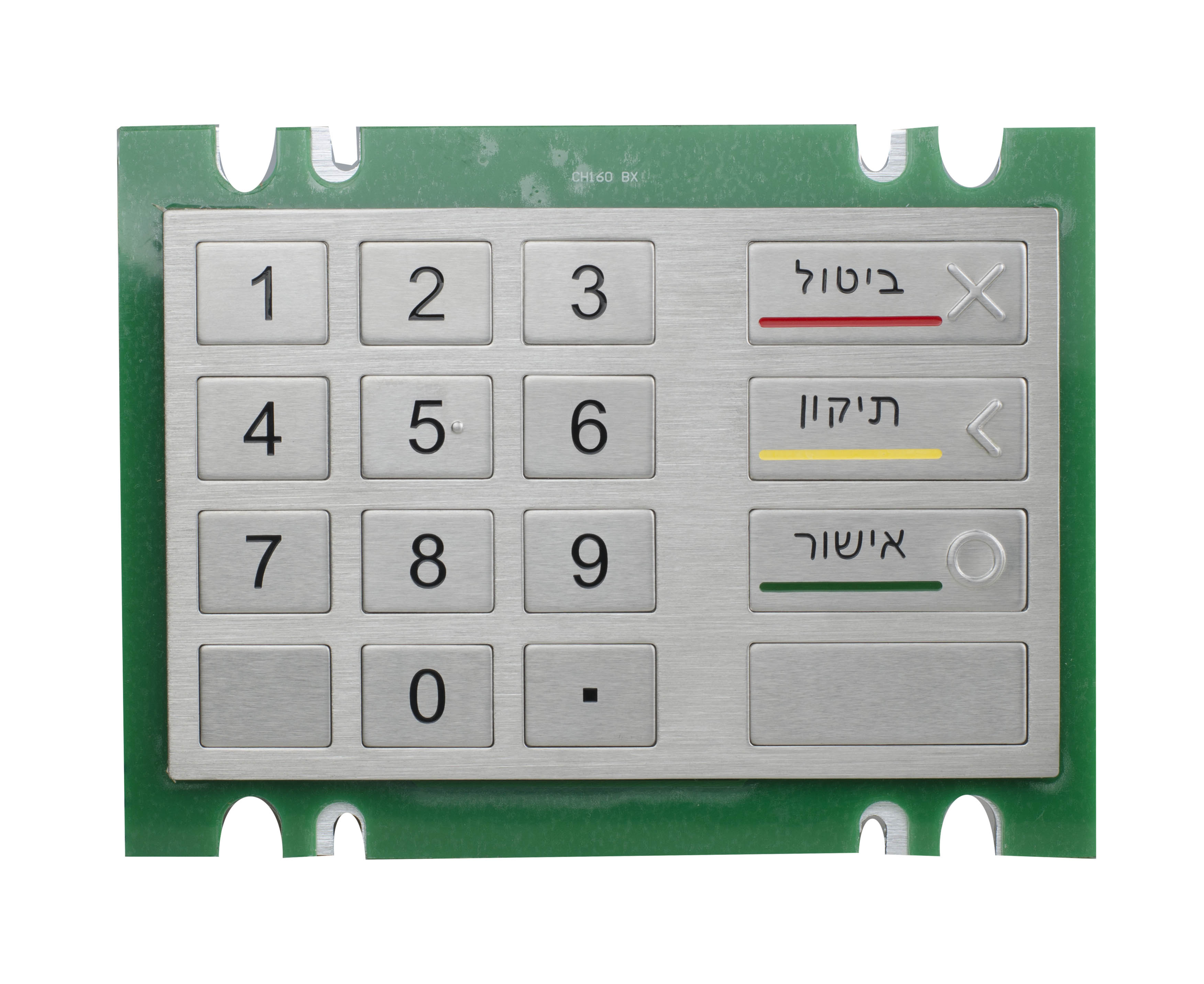

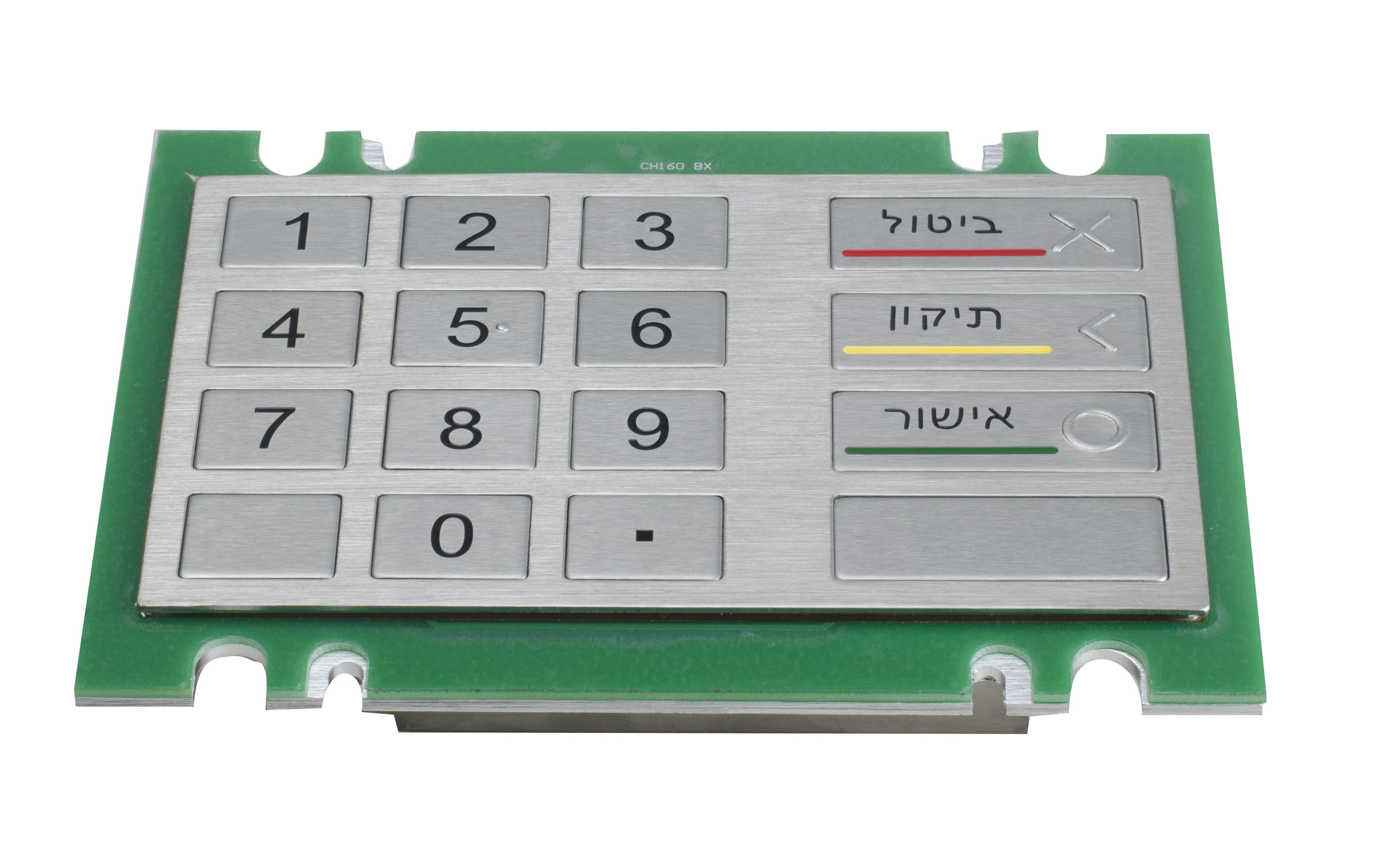

DESCRIPTION: 16 keys compact format IP65 static waterproof vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shieded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, rear aluminium plate with mounting holes for rear panel mounting. DIMENSIONS: 160.0mm x 103.0mm (Front Panel)
ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 30mA | EMC Standard | EN 55032:2015 EN 55035:2017 | Lifespan | > 5 years | Switch Contact Material | Gold-on-Gold key switch technology PCB | Interface | PS2, USB, RS232, RS485, dot matrix available | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). | COMMUNICATION PARAMETER | PS2/USB | 1 | Standard USB/PS2 keyboard interface | 2 | 16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, # and 4 function keys, 4 x 4 scanning code | 3 | Any customized layout/codes are available upon customers’ requirements | MECHANICAL DATA | Actuator/keys | 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key | Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available | Key Size | 18.70mm x 23.70mm for normal keys, 18.70mm x 50.10mm for 4 function keys | Key Travel | 0.45mm±0.05mm | Actuation Force | 3.5N±0.2N | Switch Life | more than 1 million of operations | G.W. | 0.80KGs | ENVIRONMENTAL ADAPTABILITY | Operating Temperature | -20℃ to +65℃ | Storage Temperature | -30℃ to +75℃ | Operating RH | 30-90% | Atmospheric Pressure | 60-106Kpa | Saline Mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS Compliant, CE and FCC, ESD | Protection Level | IP65 static (front panel) | Vandal Resistant | IK09 | Key Lifespan | >1 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
|
