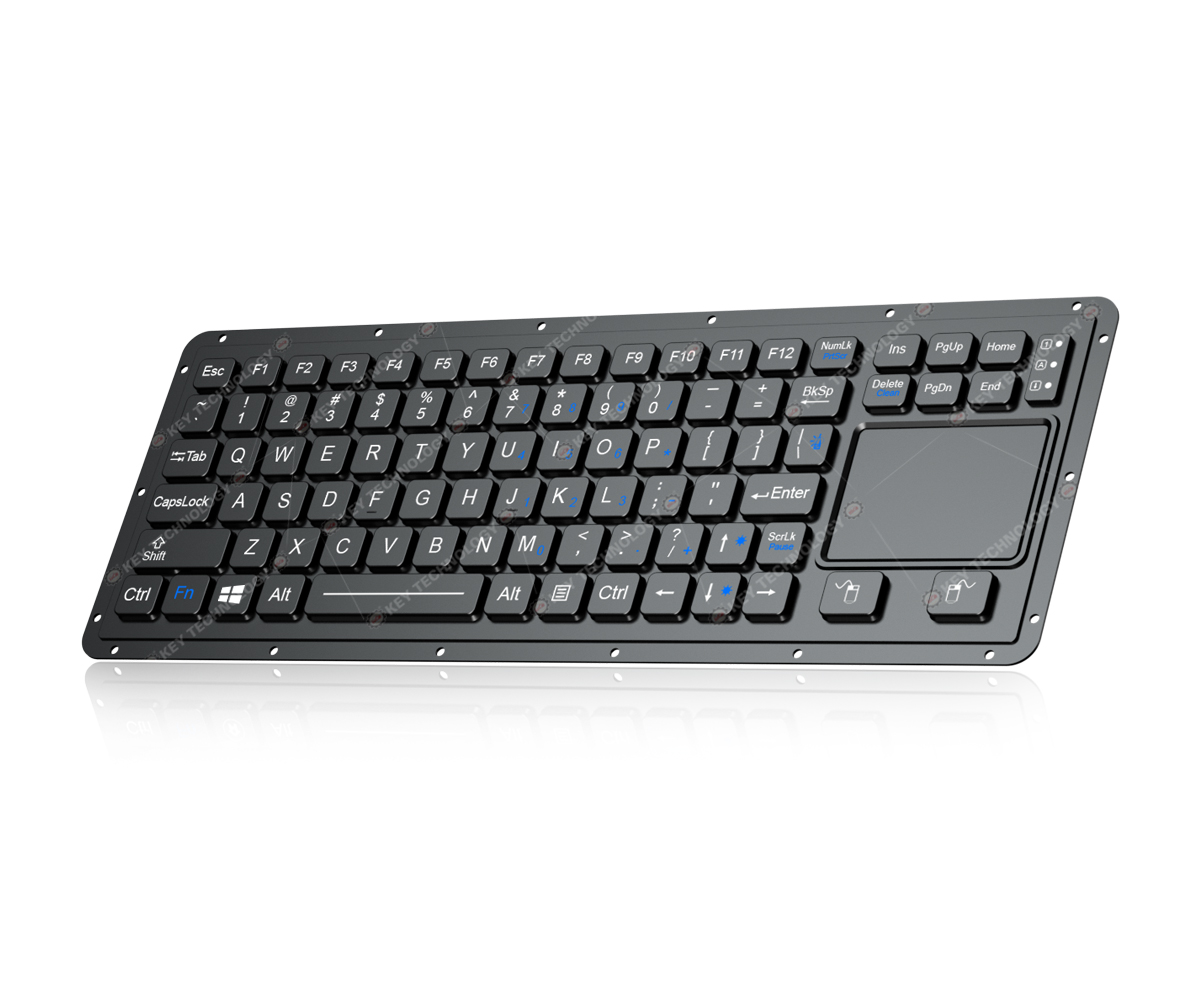

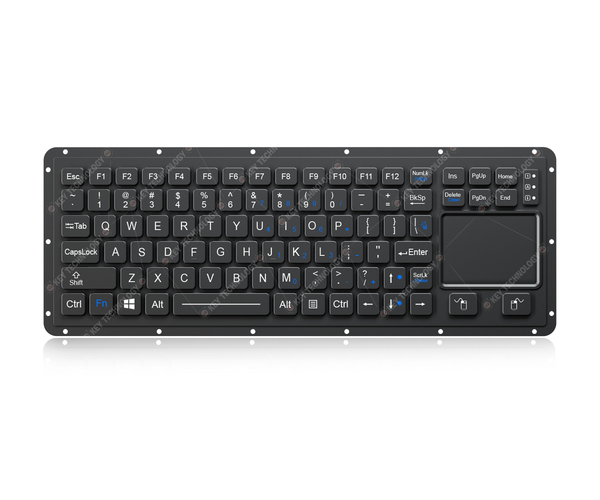

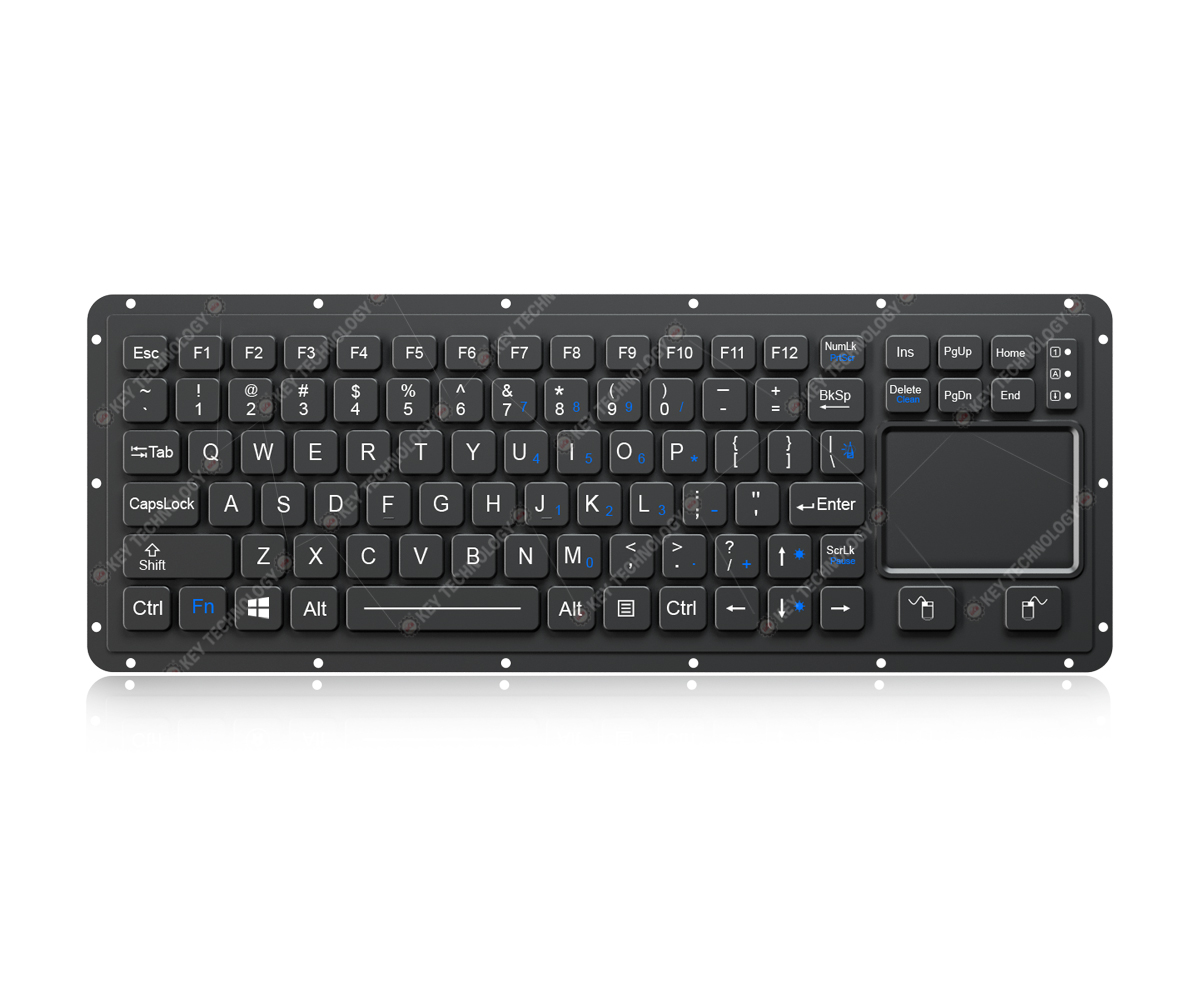

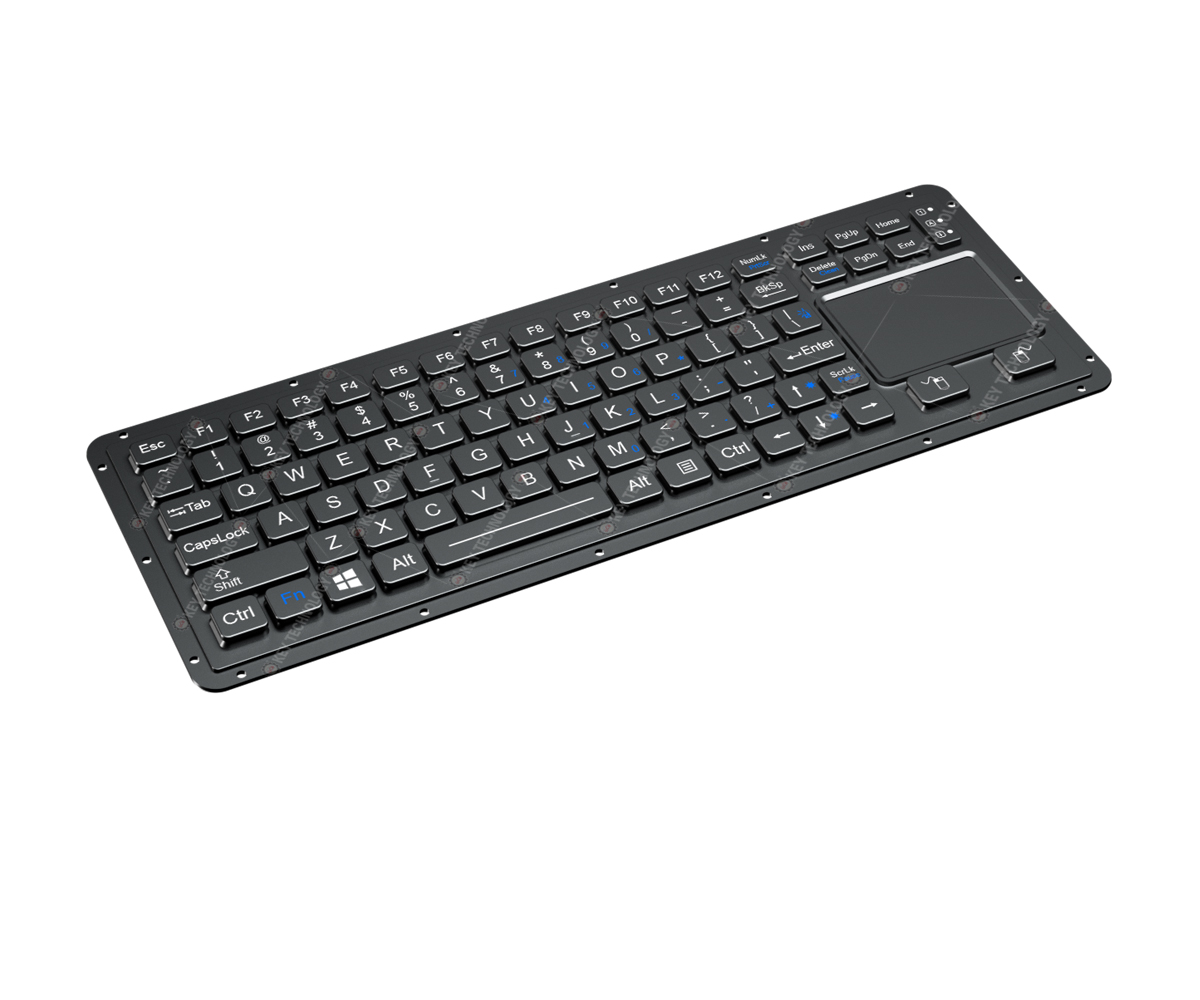

DESCRIPTION: 87 keys IP67 fully sealed and durable embedded rugged military keyboard with fully sealed waterproof reinforced wide temperature touchpad with 400DPI resolution for fast and accurate cursor position, 12 function keys (F1, F2, ... F12) are on top line for easy operation, with combination numbers on letter keys for full keyboard functionality. Keyboard surface uses ultra rugged P+R technology (PC keycaps + Rubber), and carbon-on-gold key switch technology with 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no missing key, no stuck key, no repeat key value output during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD- 461G-EMC-EMI-EMS-ESD and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, sand and dust, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. Patented keyboard (Patent number: 202420937267.2) DIMENSION: 315.0mm x 108.0mm (Front Panel)
MECHANICAL DATA | Key | 87 keys (including 2 mouse buttons) | Key technology | Carbon contact + FPC carbon-on-gold key switch technology | Key travel | 1.50mm±0.10mm | Switch life | more than 5 million of operations | Actuation Force | 1.2N±0.2N | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | ≤30mA when backlight is off, ≤300mA with backlight on | Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration,shock, temperature shock, rain, sand and dust, salt mist, fungus, solar radiation etc.) | Lifespan | > 5 years | Interface | USB | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to + 75℃ | Storage temperature | -50℃ to + 85℃ | Humidity test | 1. Test temperature: 30℃~60℃, 2. Test humidity: 95%RH, 3. Test period: 24h as a cycle, 10 cycles, total 240h | Atmospheric pressure | 57kPa~106kPa | Vibration test | 0~2000Hz, displacement 1mm, acceleration 70m/s² | Shock test | 1. Pulse waveform: post-peak sawtooth wave 2. Peak acceleration: 40g 3. Pulse duration: 11ms 4. Test period: X,Y, Z triaxial, 3 times impact to each axial front and back, a total of 18 times | Temperature shock test | 1. Test temperature: -55℃~75℃ 2. Test period: -55℃ for 2h, 75℃ for 2h, 3 cycles, a total of 12h | Fungus test | 1. Test temperature: (30±1) ℃ 2. Relative humidity: (95±5) %RH 3. Test strains: Aspergillus flavus, Aspergillus variegatus, Penicillium cordylus, mucocellus globularis, Aspergillus Niger 4. Test period: 28 days (672 hours) | Salt spray test | 1. Place the sample into the Salt Spray Corrosion Test Chamber, temperature inside the chamber is 35 ℃; Spray the sample with a NaCl test solution with a concentration of 5 ± 1% and a PH value of 6.6 for 24h at a pressure of 96kPa; Test duration is 24 h. 2. After 24h of spray, dry and store the sample for 24h in an environment with temperature of 23 ℃ and humidity of 50%; 3. Steps 1-2 as one cycle, test for 2 cycles, total 96 h. 4. After the test, exhaust the fog for 10 min, check the sample after cleaning it with flowing water under standard atmospheric conditions. | Rain test | 1. Test procedure: Procedure - rainfall and blowing rain 2. Test direction: keyboard surface 3. Wind velocity: no less than 18 m/s 4. Test duration: 3h | Dust test | 1. Test procedure: Procedure - Dust Blowing 2. Dust content: 10.6g/m³±7g/m³ 3. Firstly conduct dust blowing for 6h under 23°C, then adjust the temperature to 60°C and stabilize for 1h, and then re-conduct dust blowing for 6h. | Transport package drop test | 1. Test procedure: Transport Drop Test 2. Sample state: Weight≤45.4kg, Maximum Size<91.0cm; 3. Drop height: 122cm 4. Drop count: drop to each surface, edge and corner, 26 times of drop totally. | RELIABILITY | RoHS compliant, CE and FCC certified | MIL-STD-461G-EMC-EMI-EMS-ESD and MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, sand and dust, fungus, solar radiation etc.) | Protection Level | IP67 (front panel) | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station etc. |
|
