K-TEK-25-MTB-AVR

Category：	Trackball
Interface：	USB/PS2 optional
Protection Level：	IP65 static
Mounting Solution：	Panel mount
Operating Temperature：	-40ºC to +60ºC
Ball Diameter：	25.0mm
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M180-38-MTB-AVR-KP-19-BL-NV-151B-BT-DWP

Next： K-TEK-B116-38-OTB-AVR-RM-BT-DT-DWP

Description

Download

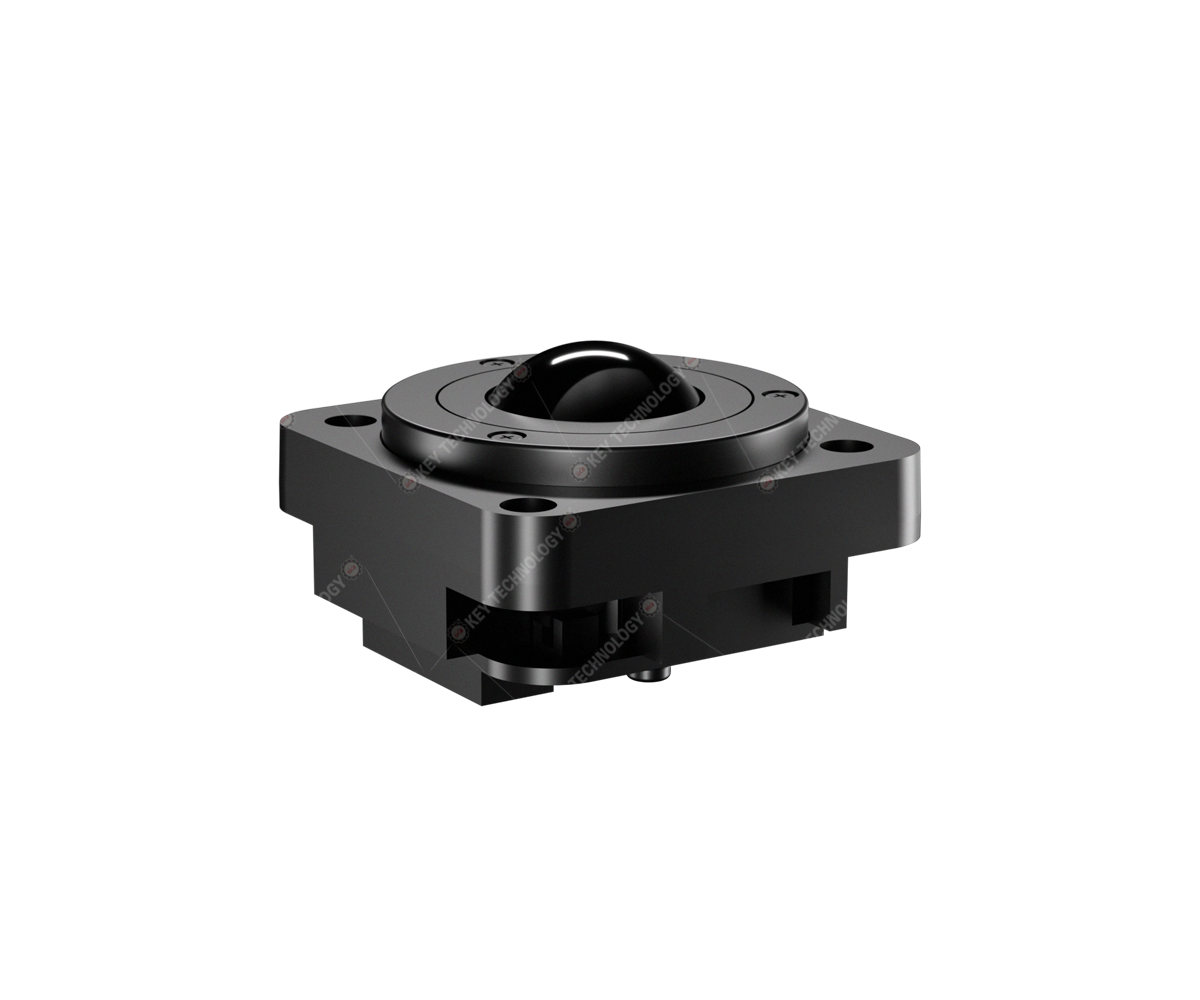

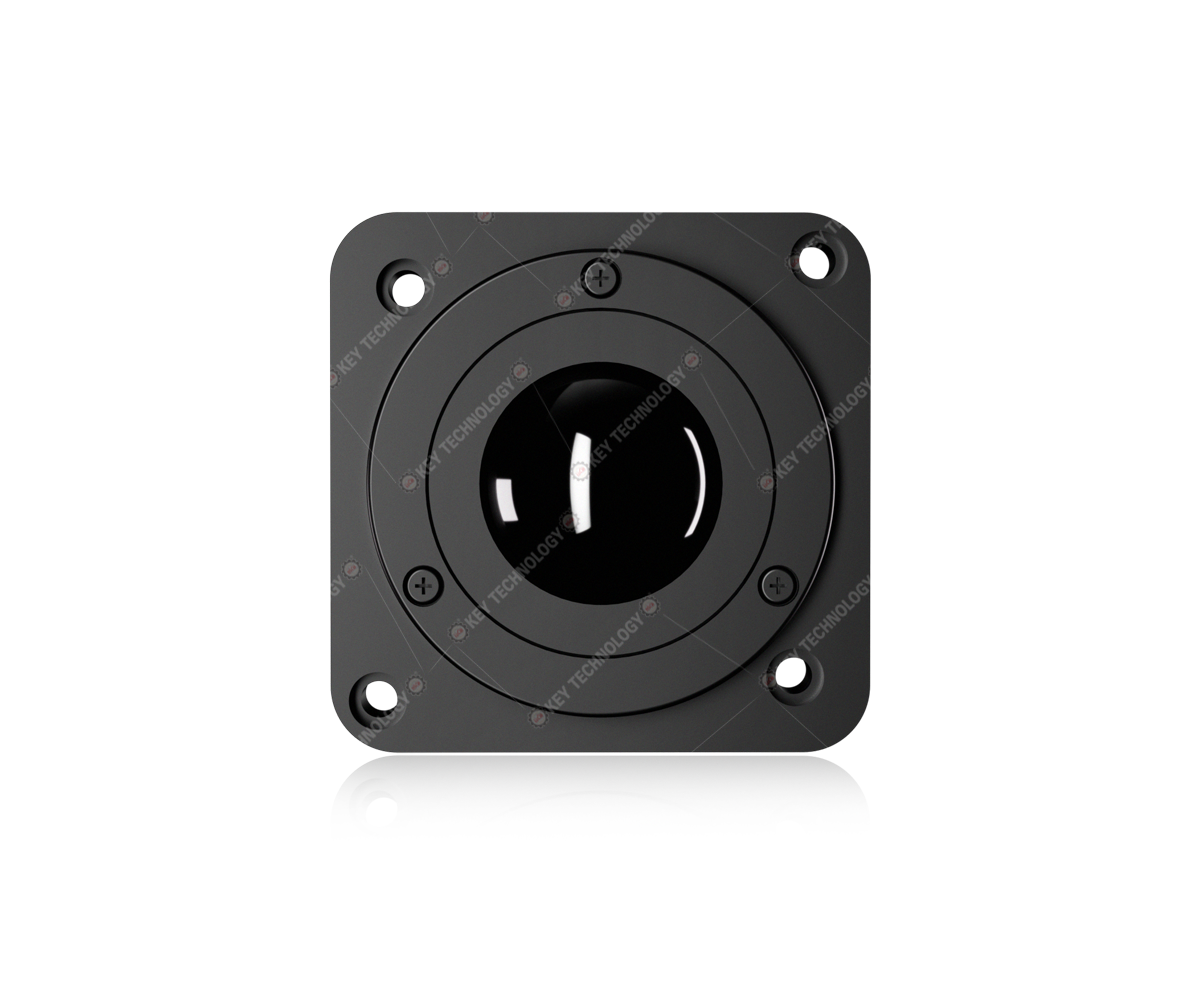

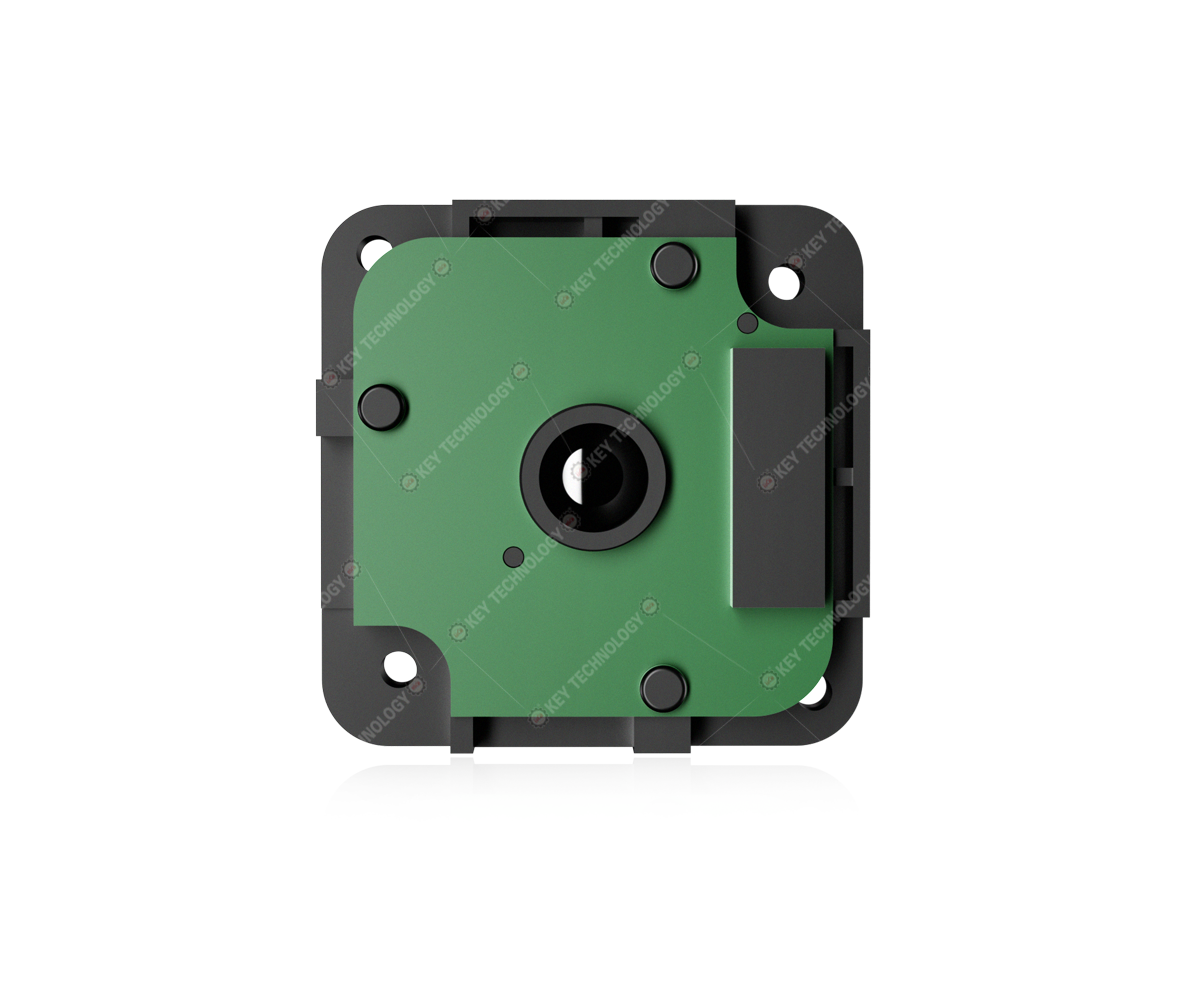

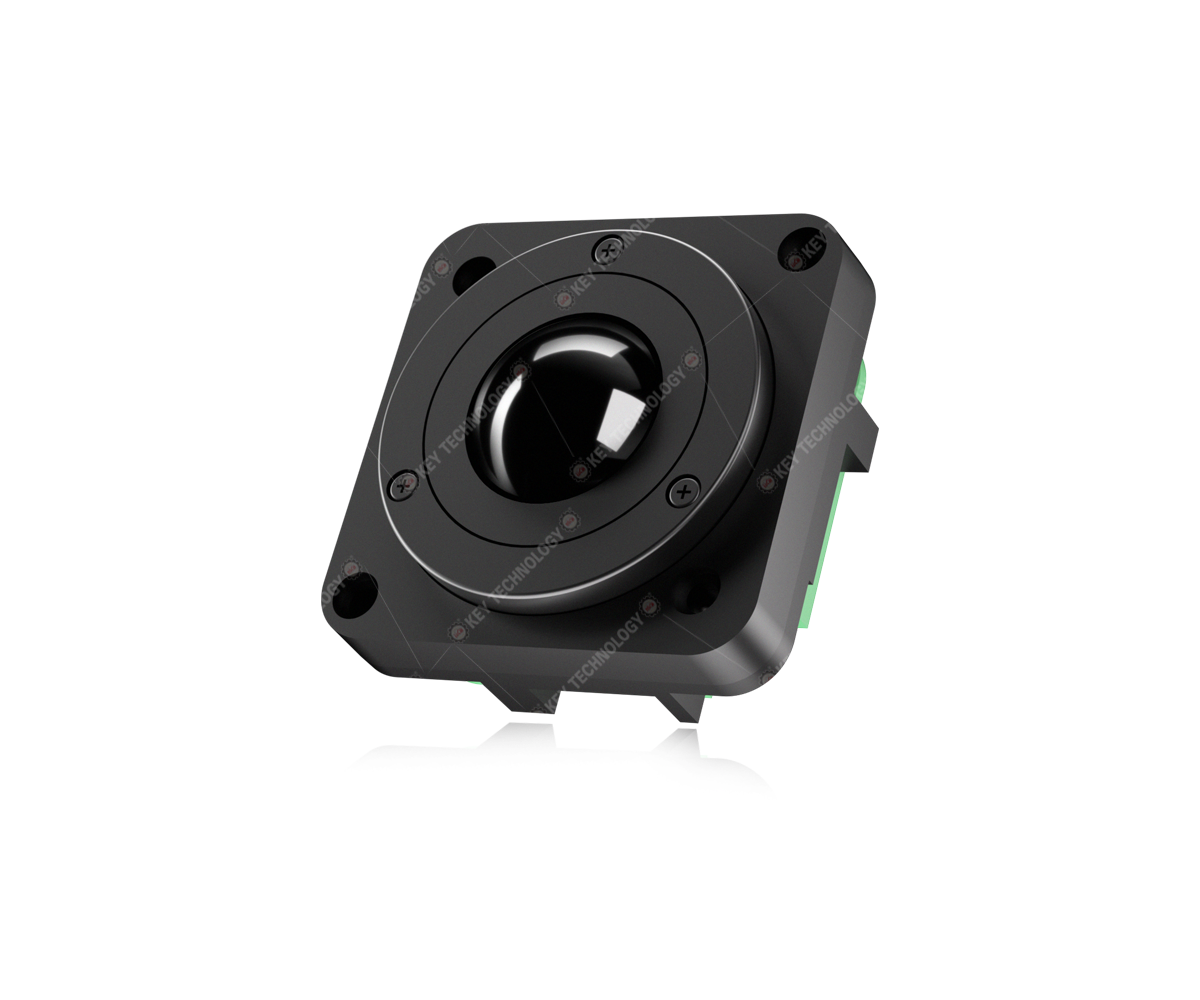

Description: IP65 static rated rugged anti-vibration 25.0mm black resin mechanical trackball module with 400DPI resolutions for fast and accurate cursor position with smooth operation without any noise, which can be removable for easy cleaning; With two external left and right mouse buttons optional, panel mounted solution. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity, MIL-STD-461G-EMC-EMI-EMS-ESD optional.

DIMENSION: 48.8mm x 48.8mm (front panel)

MECHANICAL DATA
Trackball Diameter	25.0mm
Trackball lifespan	2 millions scrolling
G.W.	0.2KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	＜30mA
EMC Standard	EN 55032:2015, EN 55035:2017
Lifespan	> 5 years
Interface	USB, PS2
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +60℃
Storage temperature	-45℃ to +70℃
Operating RH	3% - 95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
CE, FCC, RoHS
MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.)
Protection Level	IP65 static
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
