K-TEK-M222-FN-ML-OEM

Category：	Silicone keyboard
Key Number：	81 keys
Key Travel：	1.50mm±0.10mm
Backlight：	No
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M270-FN-BL-IL-OEM

Next： K-TEK-M183-FN-ML

Description

Download

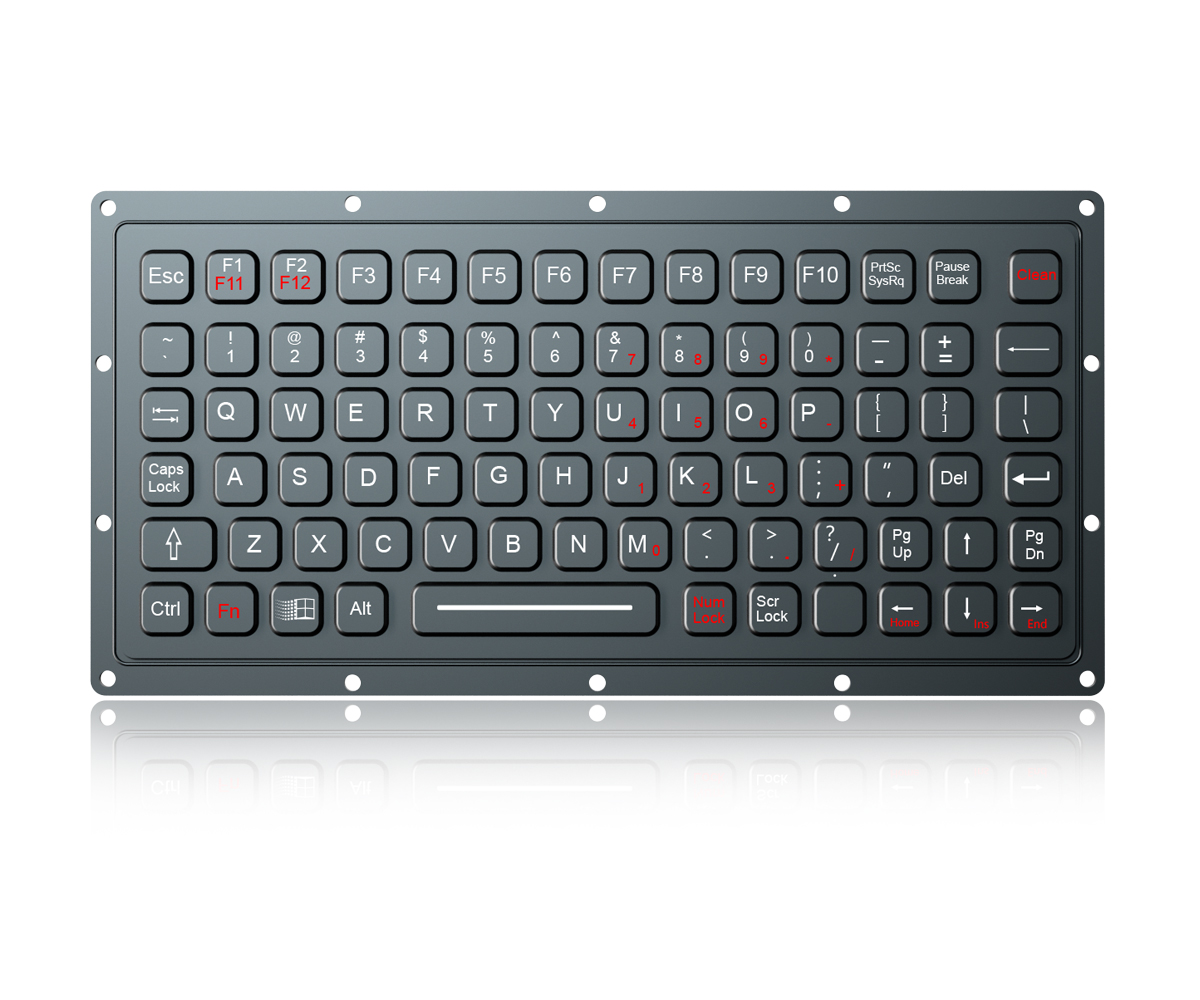

DESCRIPTION: 81 keys IP65 dynamic sealed & ruggedized silicone rubber industrial keyboard with industrial PCB included, 10 function keys on top

line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast

and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh

environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC,

rear panel mounted version, adjustable backlight optional, Military Level with wide temperature, which can be with optional touchpad mouse

K-TEK-M90TP-ML or K-TEK-M90TP-IL to work as combo set.

DIMENSIONS : 222.0mm x 100mm (L x W)

MECHANICAL DATA
Keys	81 keys
Key top style	Protuberant rectangular keys with tactile feeling
Key Size	10.2mm X 10.2mm for normal keys
Key travel	1.50mm±0.1mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations
G.W.	0.80KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology with gold PCB
Interface	PS2, USB available
Cable length	Standard 2.0m, customized length available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M222-FN-ML-OEM-mechanical drawing
