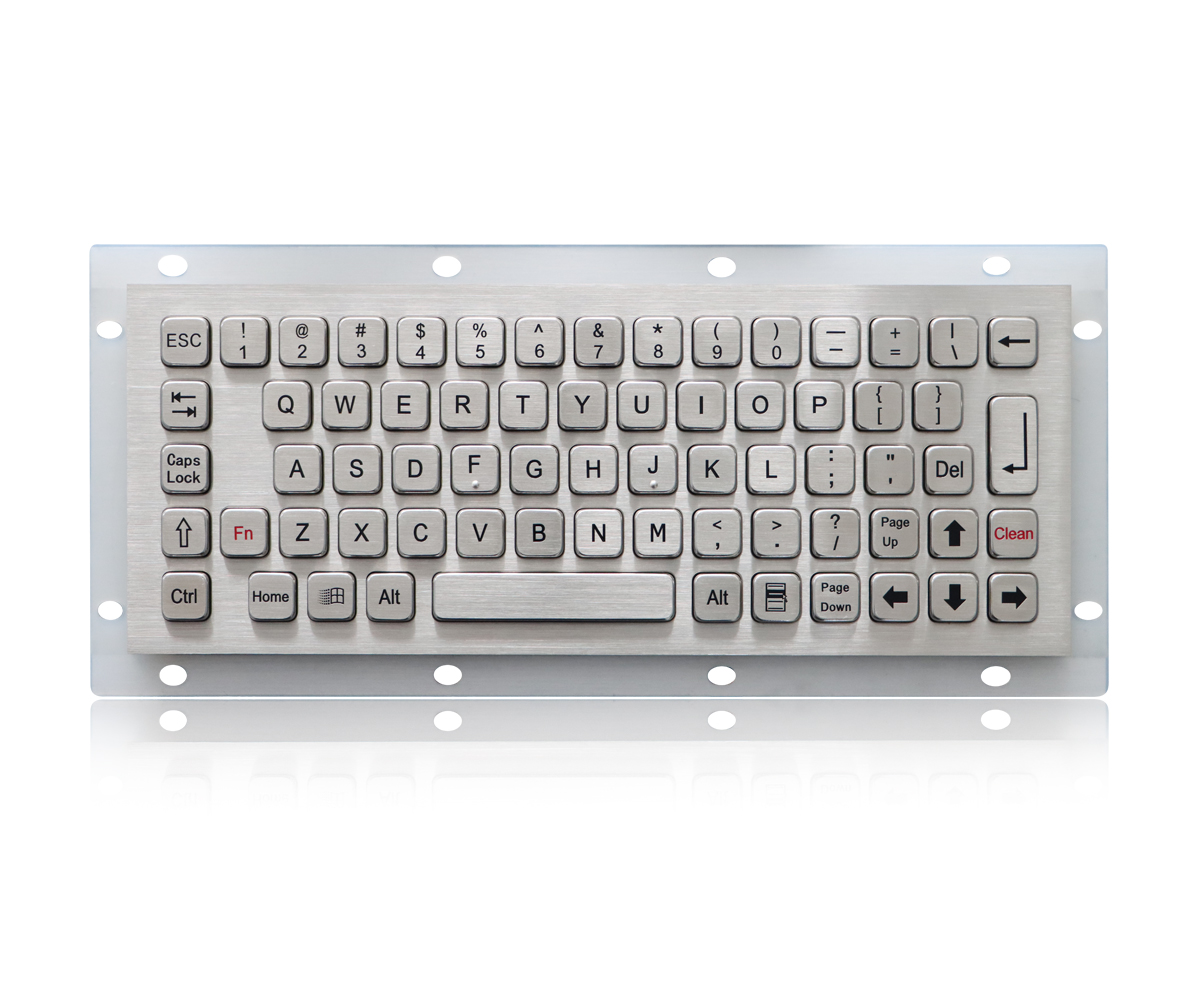

DESCRIPTION: 68 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard , industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, FN+Clean combination keys for easy and fast cleaning without needing to take the keyboard away from PC, one complete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 272.0mm x 105.0mm (front panel)
MECHANICAL DATA |
Actuator/keys | 68 keys |
Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
Key travel | 1.50±0.10mm |
Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
Front Plate | 1.5mm thickness super quality brushed stainless steel |

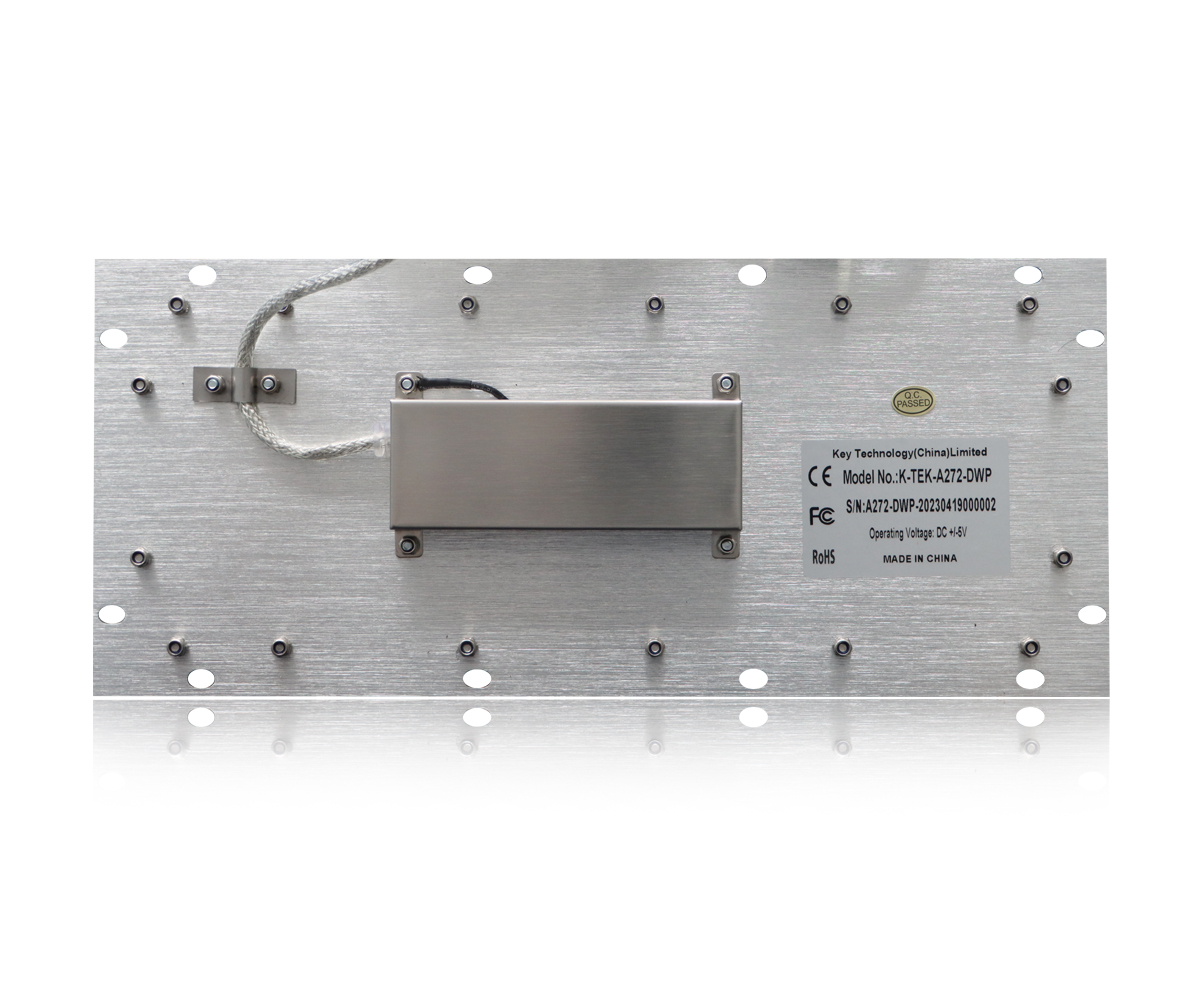

Back Plate | 3.0mm thickness brushed & oxidized aluminium |
Switch life | more than 5 million of operations |
G.W. | 1.50KGs |
ELECTRICAL DATA |
Supply Voltage | +5V DC ± 5% |
Current Rating | 30mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 dynamic (front panel) |
Vandal resistant | IK08 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
