K-TEK-M64-OMS-DT

Category：	Silicone mouse
Key Number：	5 keys
Key Travel：	1.50mm
Backlight：	No
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP68
Mounting Solution：	Flat desk top solution
Operating Temperature：	-20ºC to +65ºC
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, marine, oil and gas etc.

Prev： K-TEK-B80TP-DWP

Next： K-TEK-M405-38-MTB-60-FN-DWP

Description

Download

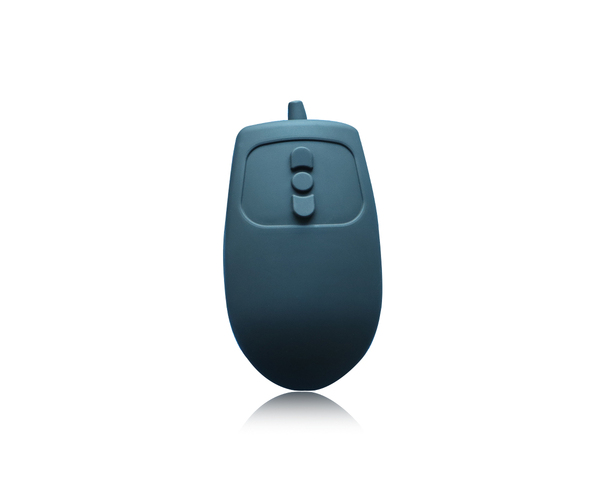

DESCRIPTION: IP68 dynamic sealed & Ruggedized 5 keys Waterproof, Hygienic Optical Mouse with durable coating & antimicrobial

mouse surface withstand to most chemicals and liquids under harsh environments, the mouse is full sized and features a 5-buttons

designed for right & left clicking and scrolling up and down just like a conventional non-waterproof mouse, and it is a fully sealed IP68

and compatible with both USB and PS/2.

DIMENSIONS : 64.0mm x 126.0mm x 35.0mm (L x W x H)

MECHANICAL DATA
Actuator/keys	5 keys
G.W.	0.3KG
Dimension	64.0mm x 126.0mm 35.0mm (L x W x H)
Color	White, black
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, MIL-STD-810F, MIL-STD-461G optional.
Protection Level	IP68
Key Lifespan	>100,000 actuations
MTBF	>50000H
MTTR	<30min
APPLICATION	Industrial, coal and mine, medical and pharmaceutical, military and navy etc.

K-TEK-M64-OMS-DT-mechanical drawing
