K-TEK-P93KP-16-AC-DWP

Category：	Stainless steel keypad
Key Number：	16 keys
Key Travel：	0.45±0.10mm
Interface：	Dot Matrix
Key Switch：	piezo contact key switch technology
Protection Level：	IP65 (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-20ºC to +65ºC
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Prev： K-TEK-P73KP-AC-DWP

Next： K-TEK-M334KP-FN-BL-IT-ML-DWP+M73TP

Description

Download

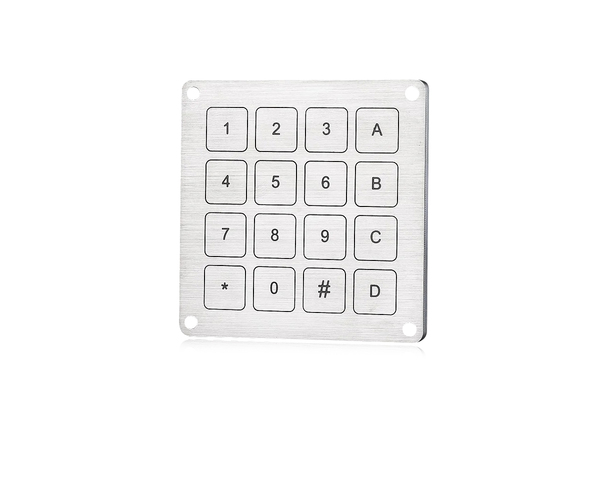

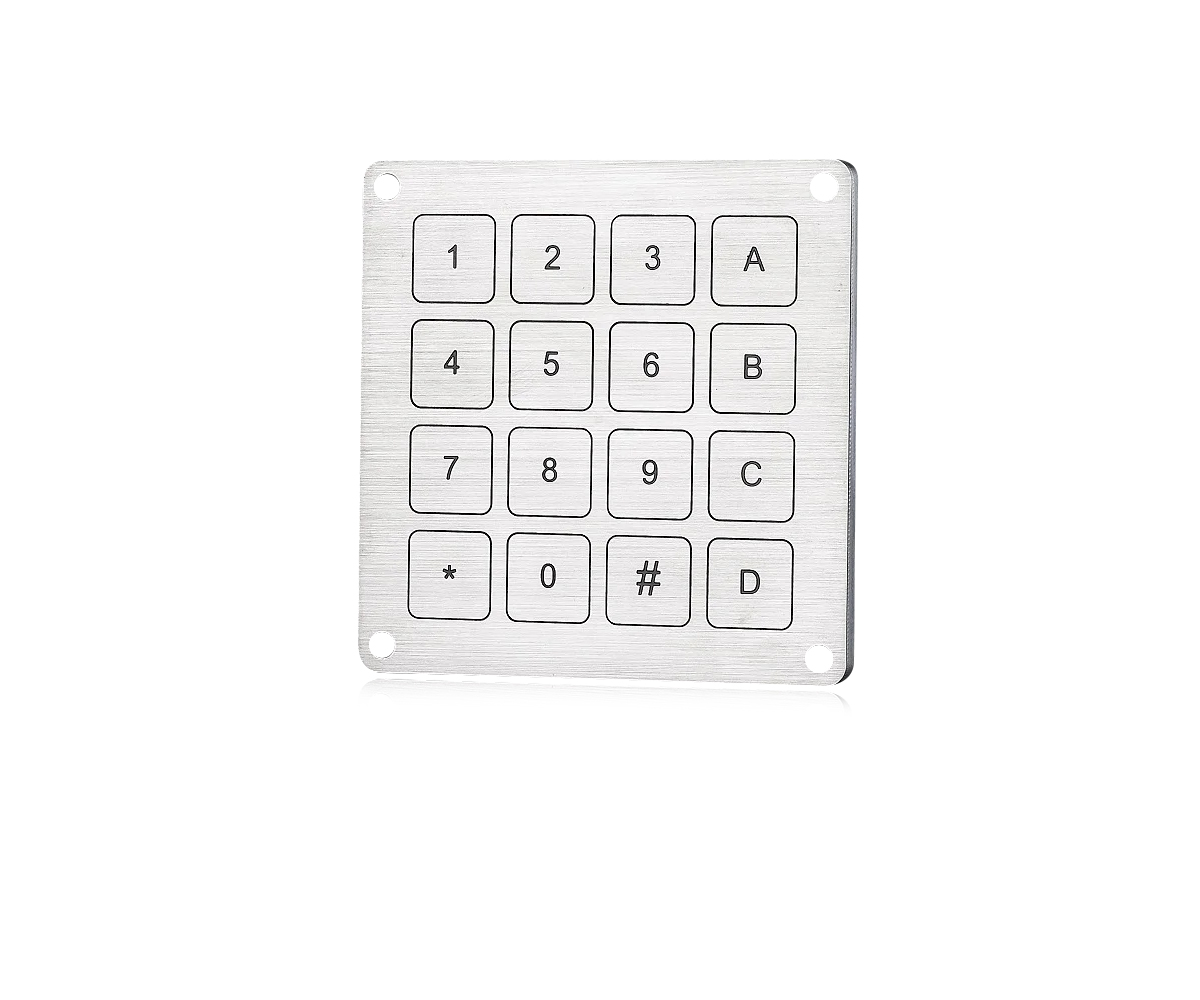

DESCRIPTION: 16 keys compact format IP65 washable vandal proof industrial metal numeric keypad with dot matrix circuit with socket on the back panel of PCB for connecting electronics controller, industrial PCB with piezo contact key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input. Top panel with mounting holes for top panel mounting. With Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 93.0mm × 93.0mm (front panel)

ELECTRICAL DATA
Lifespan	> 5 years
Switch Contact Material	piezo contact
Interface	Dot matrix
Actuator/keys	16 keys, super quality flat key
Key Travel	0.45mm±0.10mm
Actuation Force	0.6 N+/-0.1N (pressure point)
Switch Life	more than 1 million of operations
G.W.	0.30KGs
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating Temperature	-20℃ to +65℃
Storage Temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric Pressure	60-106Kpa
Saline Mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP65 (front panel)
Vandal Resistant	IK08
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
