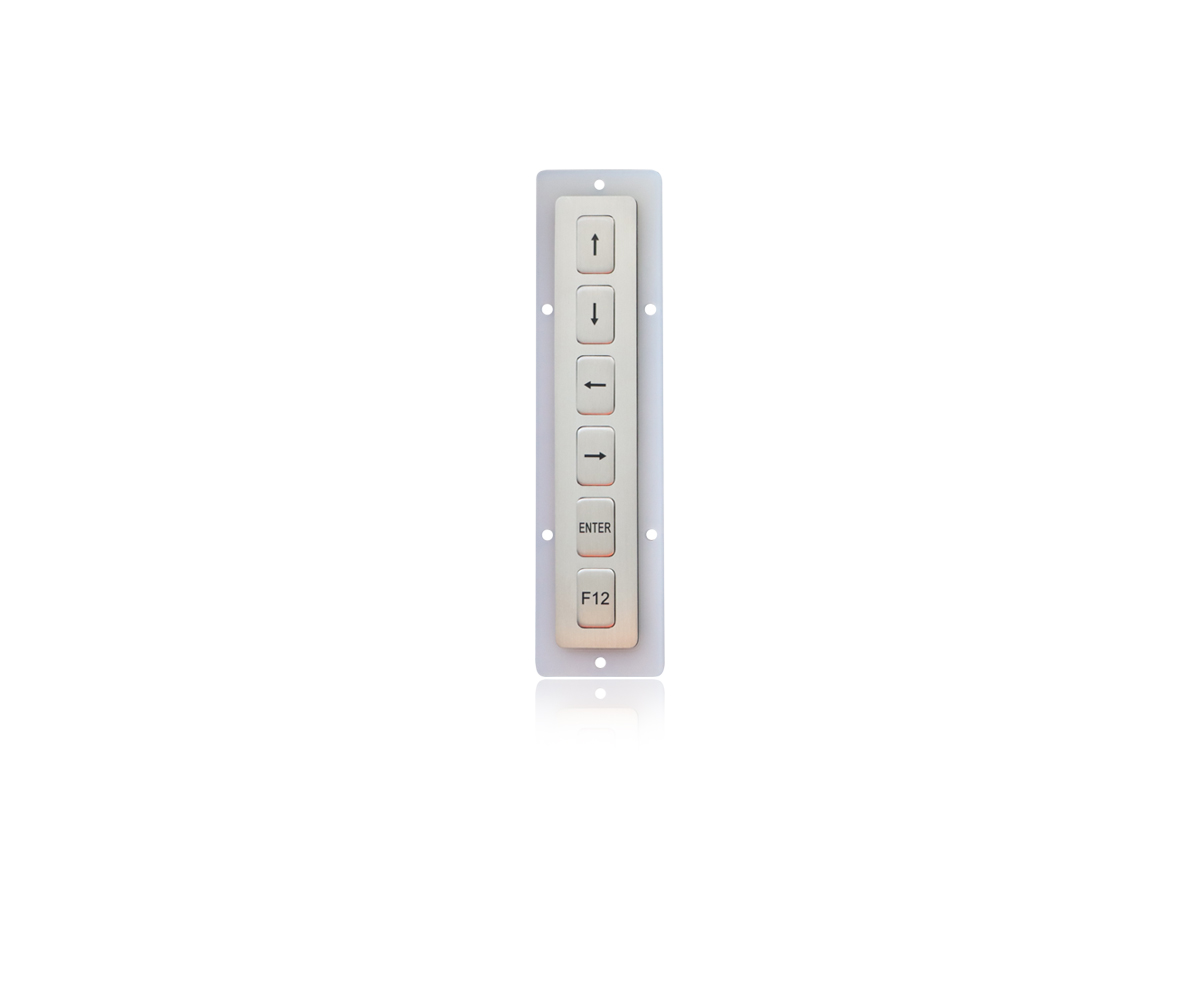

DESCRIPTION: 6 keys IP65 dynamic water proof rated vandal proof stainless steel industrial keypad with totally sealed and ruggedized metal dome

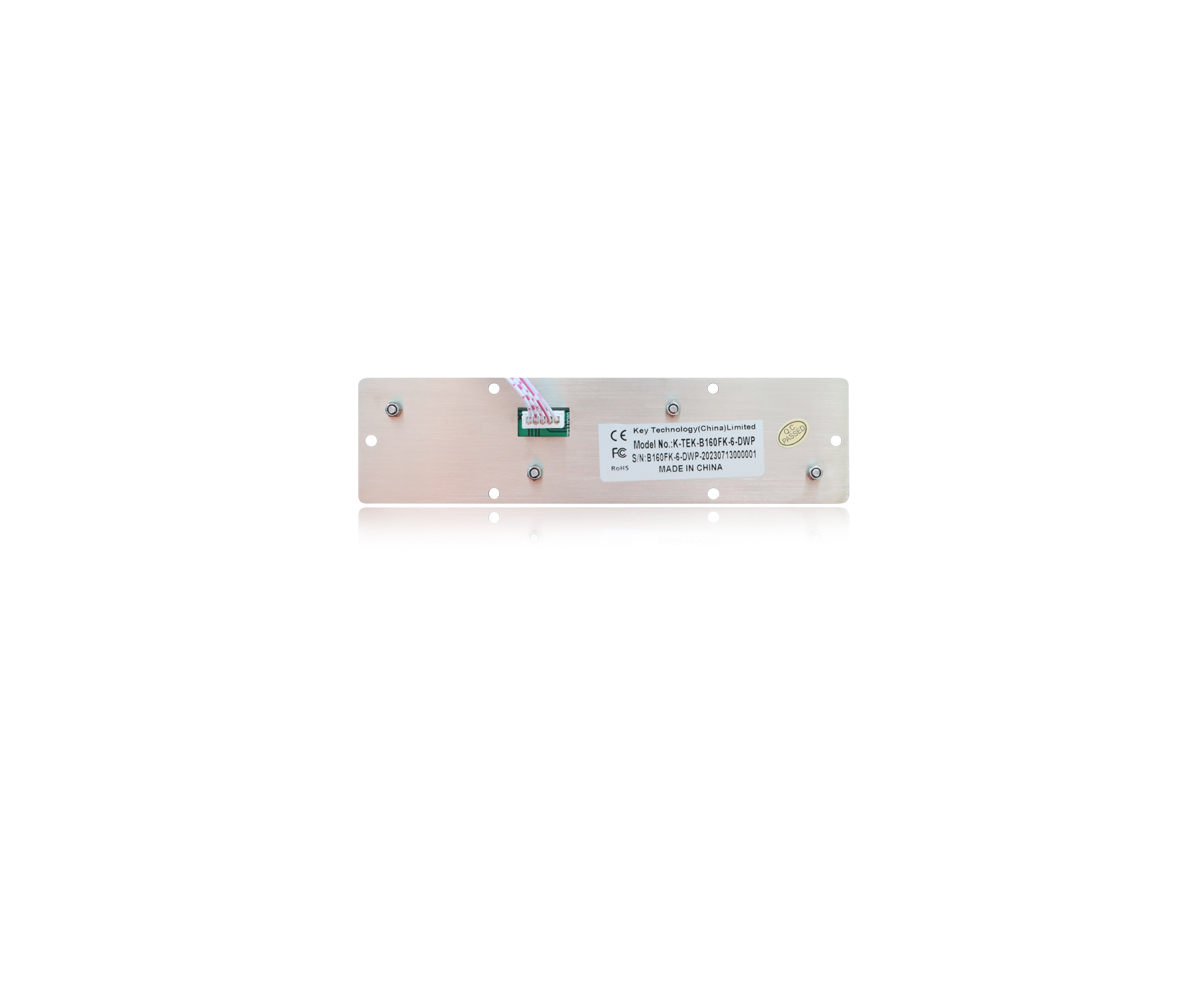

PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input. Rear stainless
steel back plate with mounting holes and water-tight rubber sealing gasket for easy sealing and tightening with cabinet, rear panel mounting
solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc,
no rust risk and anti-salt spray corrosion.
DIMENSION: 160.0mm x 30.0mm (L x W)
MECHANICAL DATA |
Keys | 6 keys, super quality SUS304 brushed stainless steel flat key. |
Key Size | 14.0mm x 21.0mm for normal keys |
Key Travel | 0.45mm±0.05mm |
Actuation Force | 3.5N±0.2N (pressure point) |
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Back Plate | 1.2mm thickness super quality stainless steel |
Lettering | laser engraving, or raised letters |
Switch Life | more than 1 million of operations |
G.W. | 0.52KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 30mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Gold-on-Gold key switch technology PCB |
Interface | dot matrix, USB, PS2, RS232 available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating Temperature | -20℃ to +65℃ |
Storage Temperature | -30℃ to +75℃ |
Operating RH | 3%~95% |
Atmospheric Pressure | 60-106Kpa |
Saline Mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 dynamic (front panel) |
Vandal Resistant | IK09 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
