K-TEK-M183-FN-BL-ML

Category：	Silicone keyboard
Key Number：	69 keys
Key Travel：	1.50mm±0.10mm
Backlight：	White
Interface：	USB
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M302-FN-BL-ML

Next： K-TEK-M129KP-MA-BL-ML

Description

Download

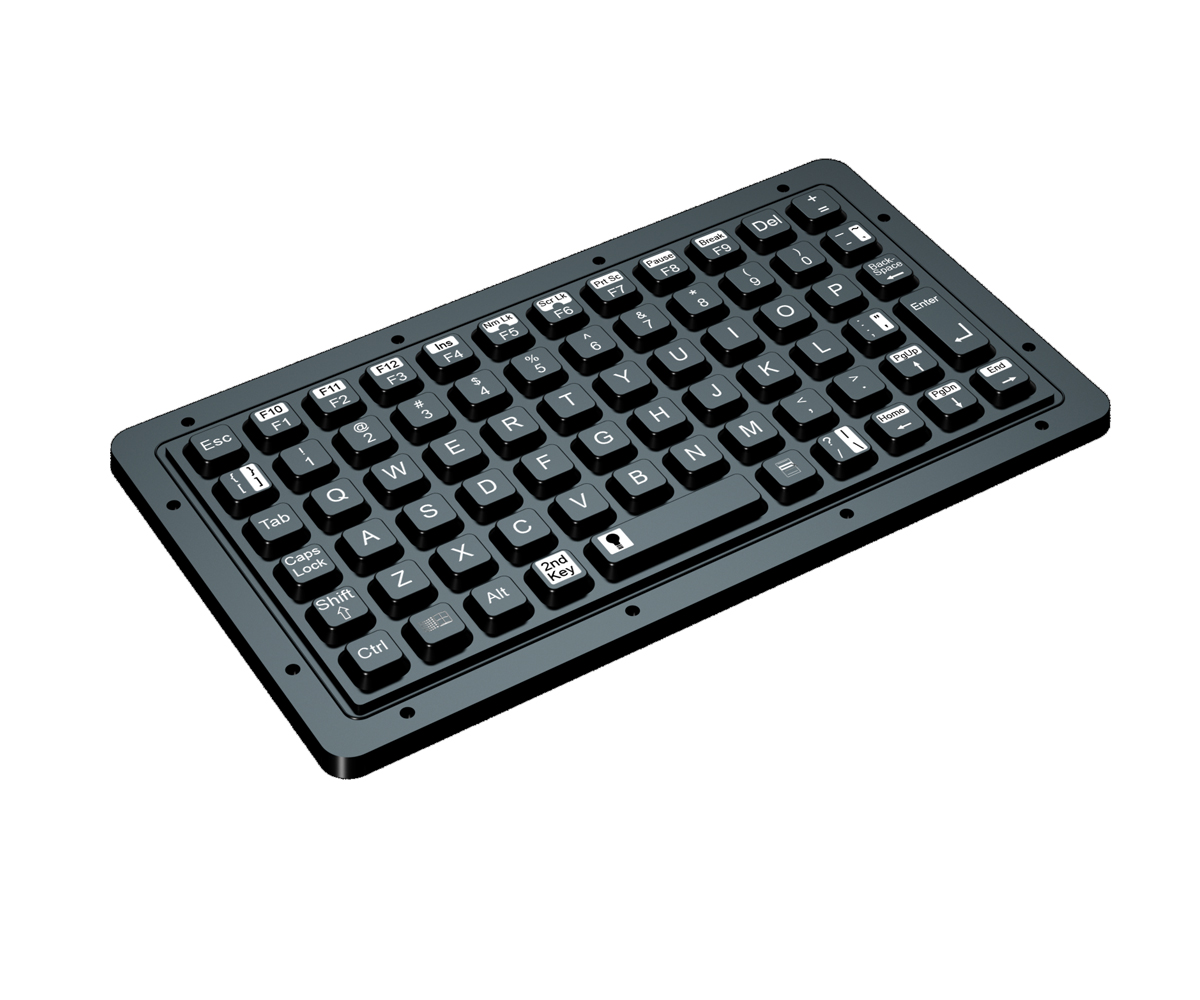

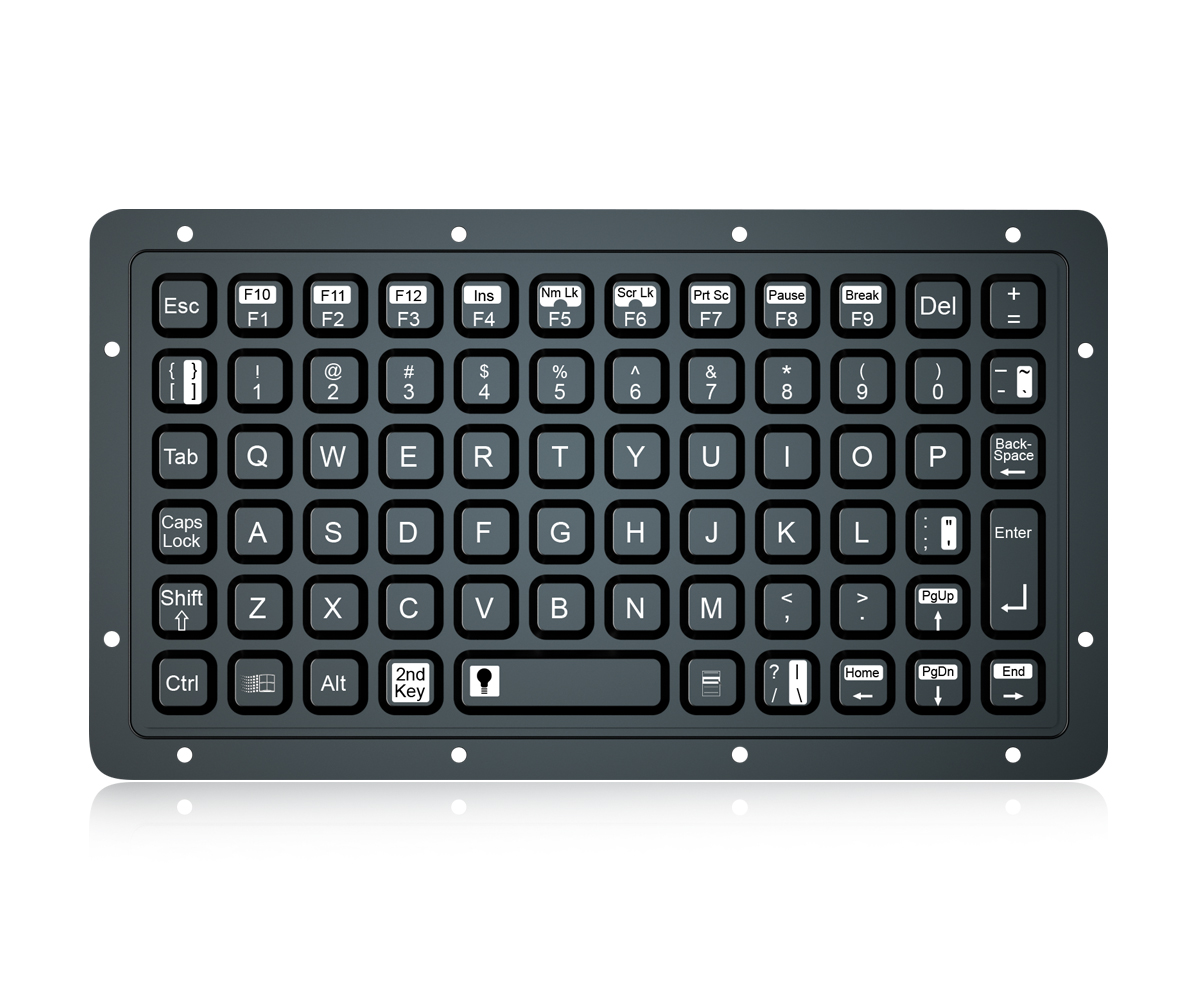

DESCRIPTION: 69 keys compact format IP65 dynamic sealed & ruggedized silicone rubber military keyboard with 12 function keys on top line for

easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data

input without any noise or mistyping, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under

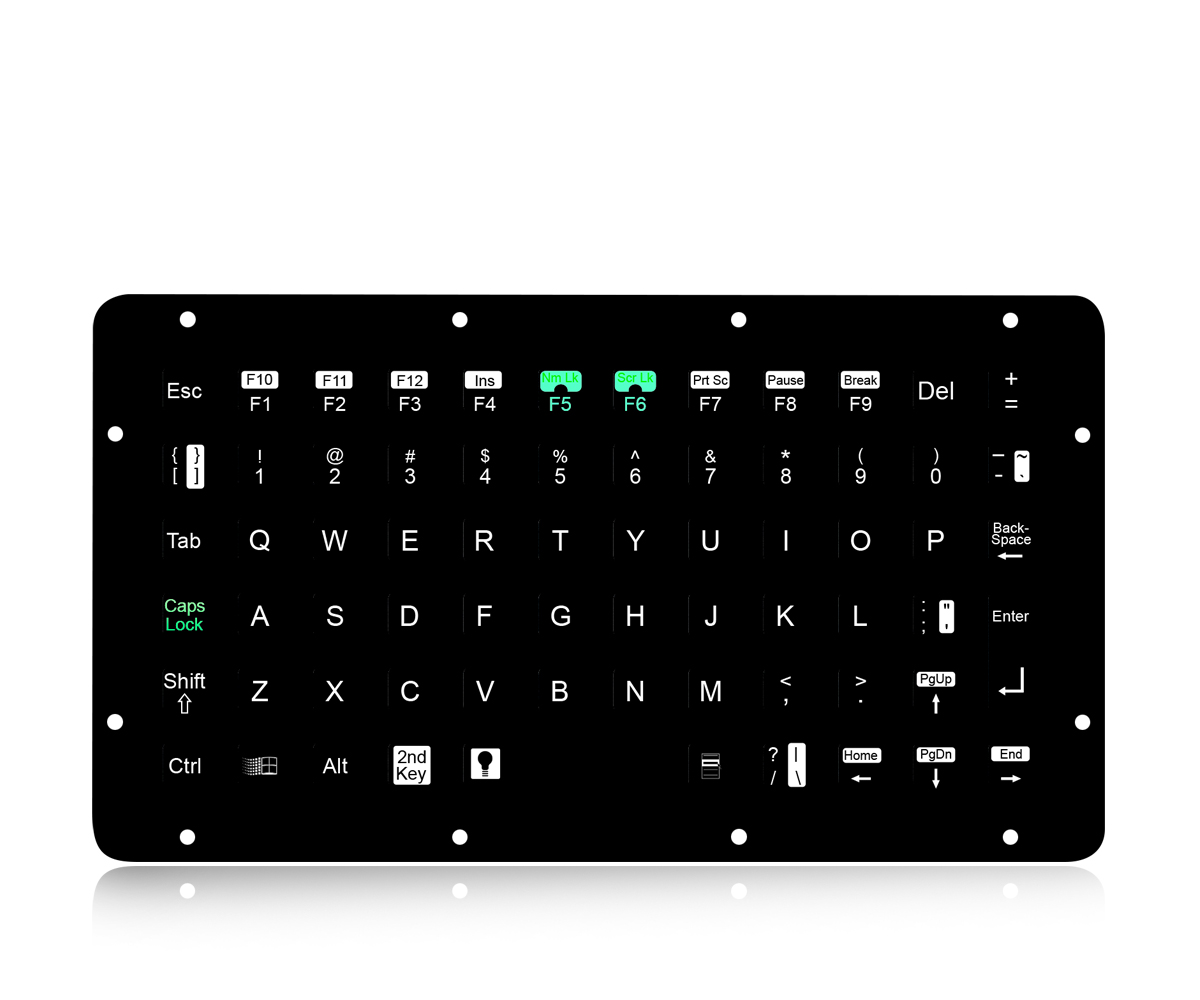

harsh environment, rear panel mount solution with mounting holes. Adjustable military white backlight included, with USB interface.

The whole keyboard is designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock,

rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards

in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 182.5 mm x 93.0mm (L x W)

MECHANICAL DATA
Keys	69 keys
Switch Contact Material	Carbon-on-gold key switch technology
Key Top Style	Protuberant rectangular keys with tactile feeling
Key Travel	1.50mm±0.10mm
Actuation Force	1.5N±0.2N (pressure point )
G.W.	0.50KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB, With customized interface optional
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating Temperature	-40℃ to +75℃
Storage Temperature	-45℃ to +85℃
Operating RH	3%~95%
Atmospheric Pressure	60-106Kpa
Saline Mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
CE/FCC/ROHS, MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.)
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M183-FN-BL-ML--mechanical drawing
