K-TEK-D483-178-MTB-KP-FN-SW

Category：	Membrane keyboard
Key Number：	110 keys (including 2 mouse buttons)
Key Travel：	0.45±0.05mm
Interface：	USB/PS2 optional
Key Switch：	Omron micro key switch technology
Protection Level：	IP65 dynamic
Mounting Solution：	Top panel mount
Operating Temperature：	-20℃ to +65℃
Ball Diameter：	38.0mm
Application：	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

Prev： K-TEK-M440-OTB-FN-BL-NV-151B-BT-DT-DWP

Next： K-TEK-M293-131-FN-BL-ML-DT-SS

Description

Download

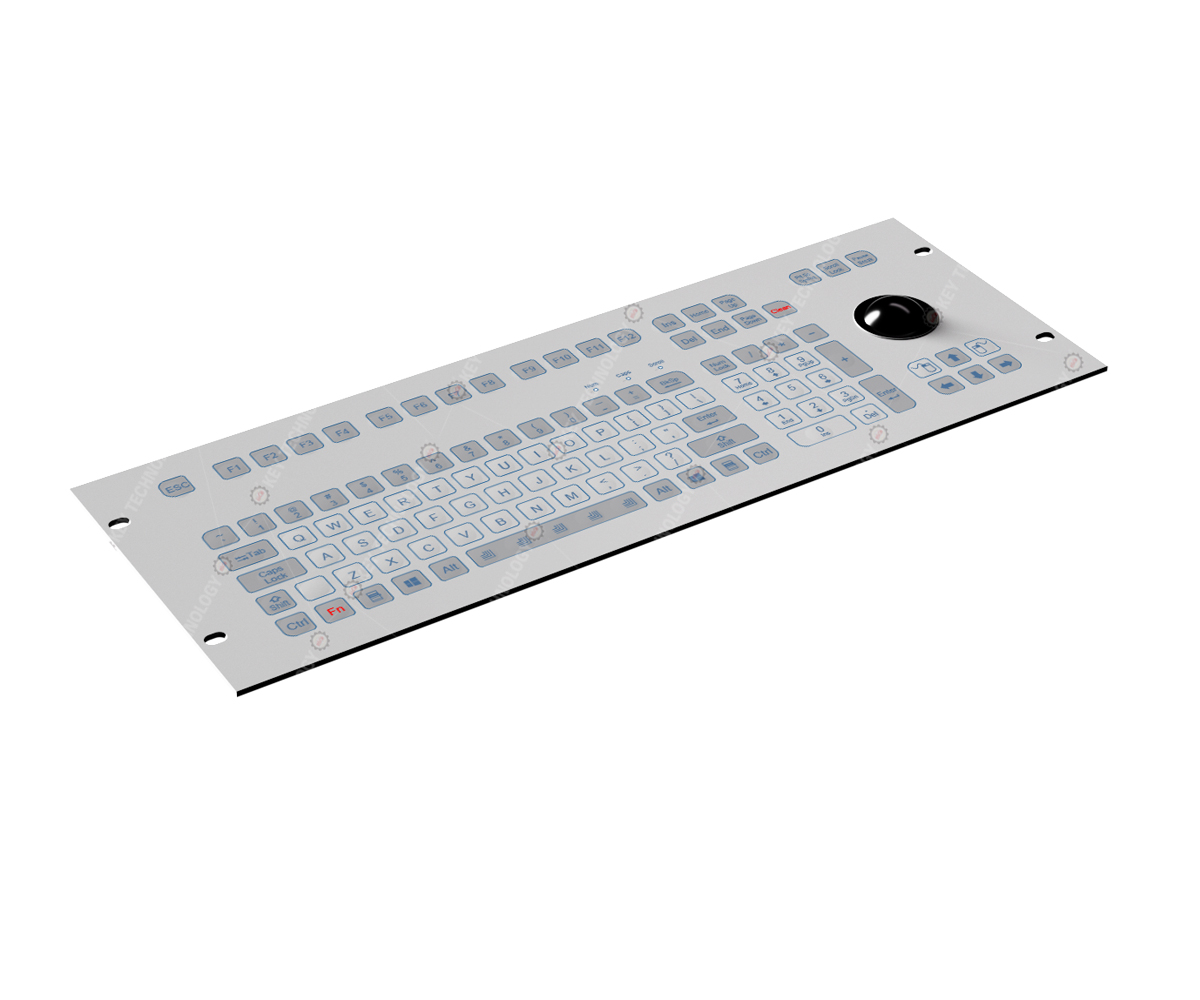

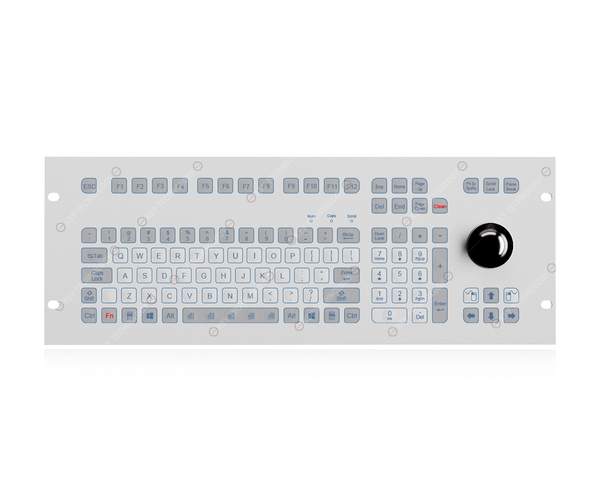

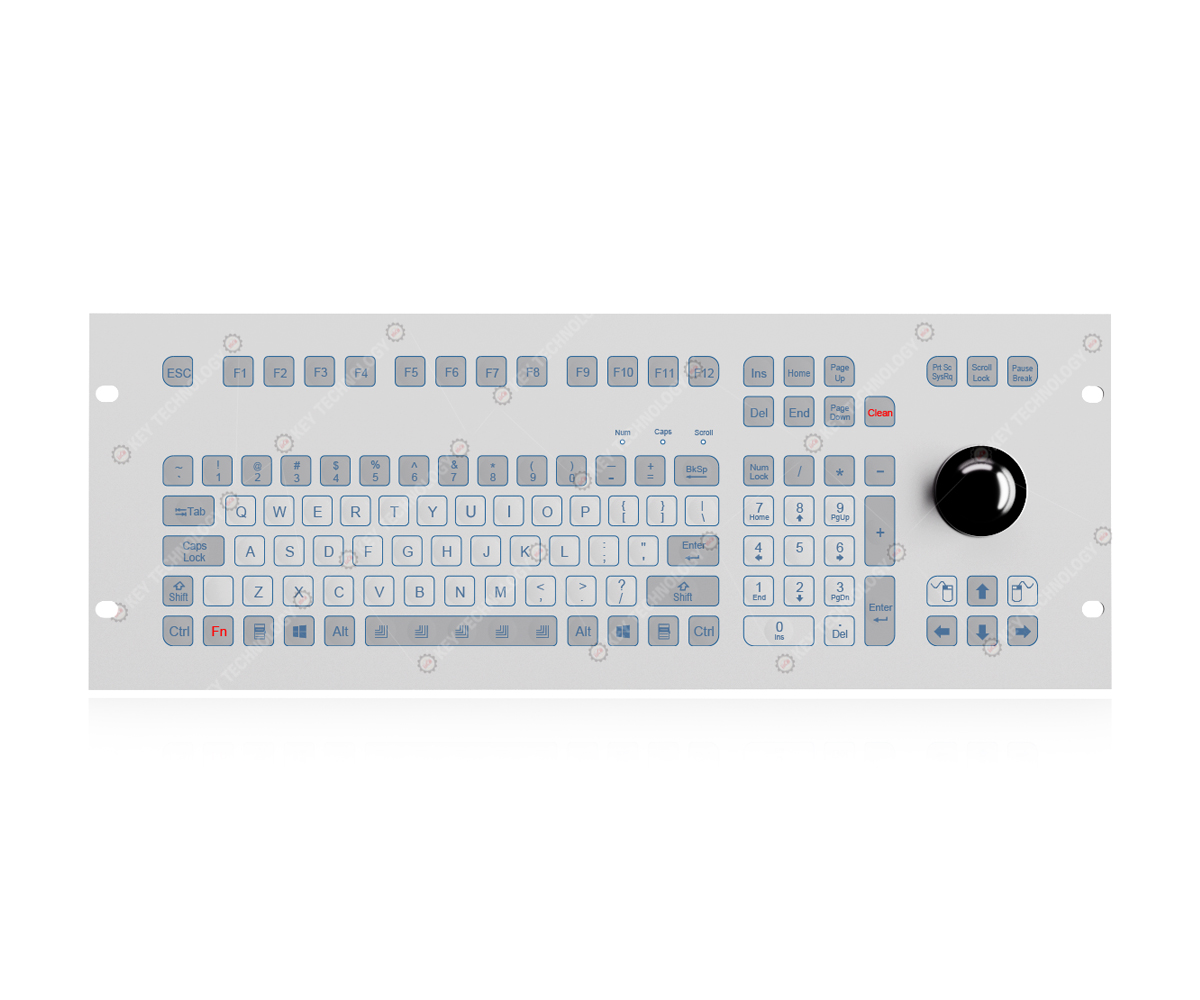

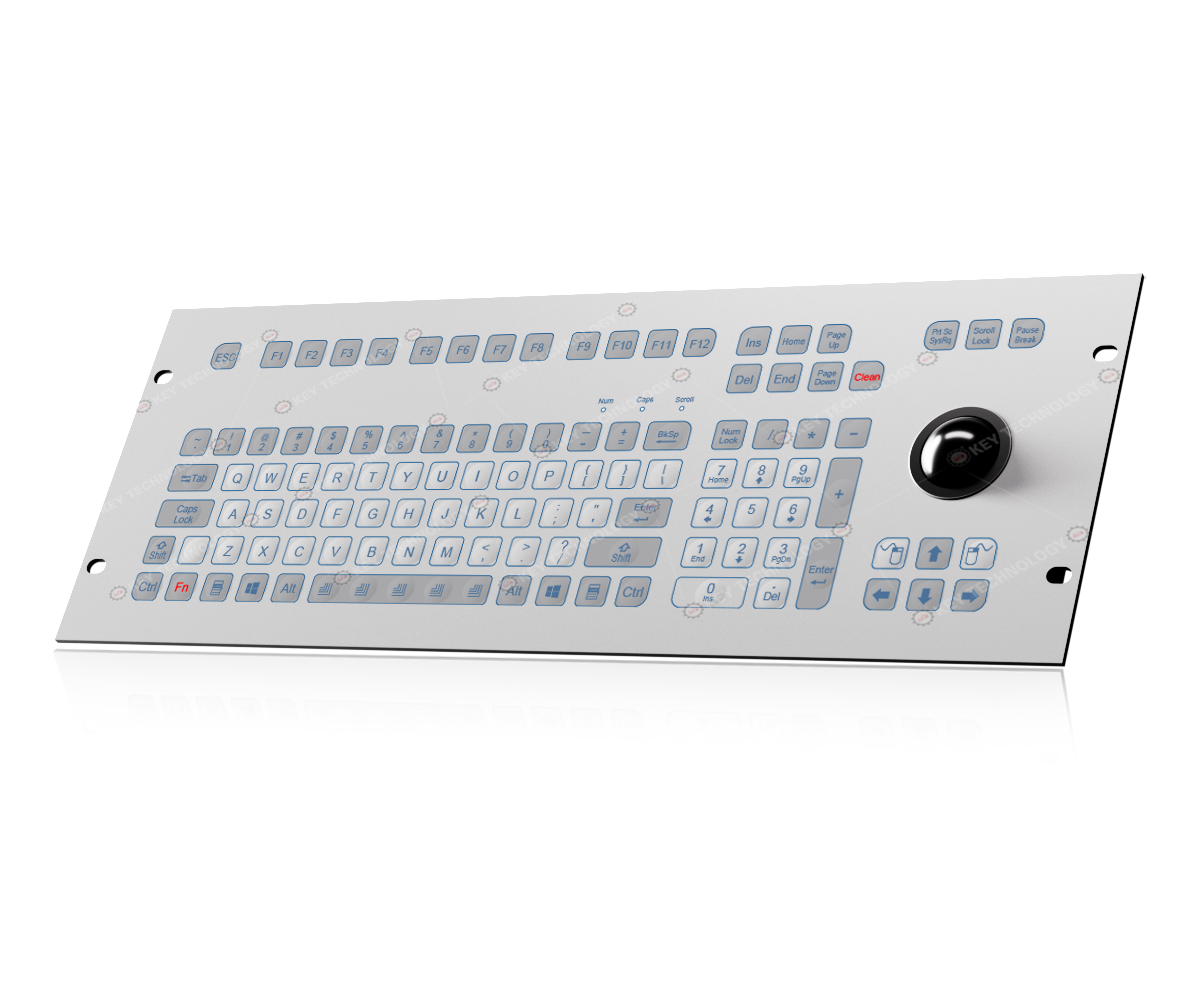

Description: 108 keys IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP65 rated 38.0mm mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position, totally sealed and ruggedized industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+Clean combination key for easy cleaning via lock/disable the entire keyboard with trackball without taking the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, with ruggedized brushed aluminium front panel and with mounting holes for top panel mounted solution.

Dimensions: 482.6mm x 177.8 mm (front panel)

MECHANICAL DATA
Number of Keys	110 keys (including 2 mouse buttons)
Key switch Technology	OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force	2.0N±0.2N (press point)
Key Travel	0.45±0.05mm
Key switch Lifetime	1 mil. operations

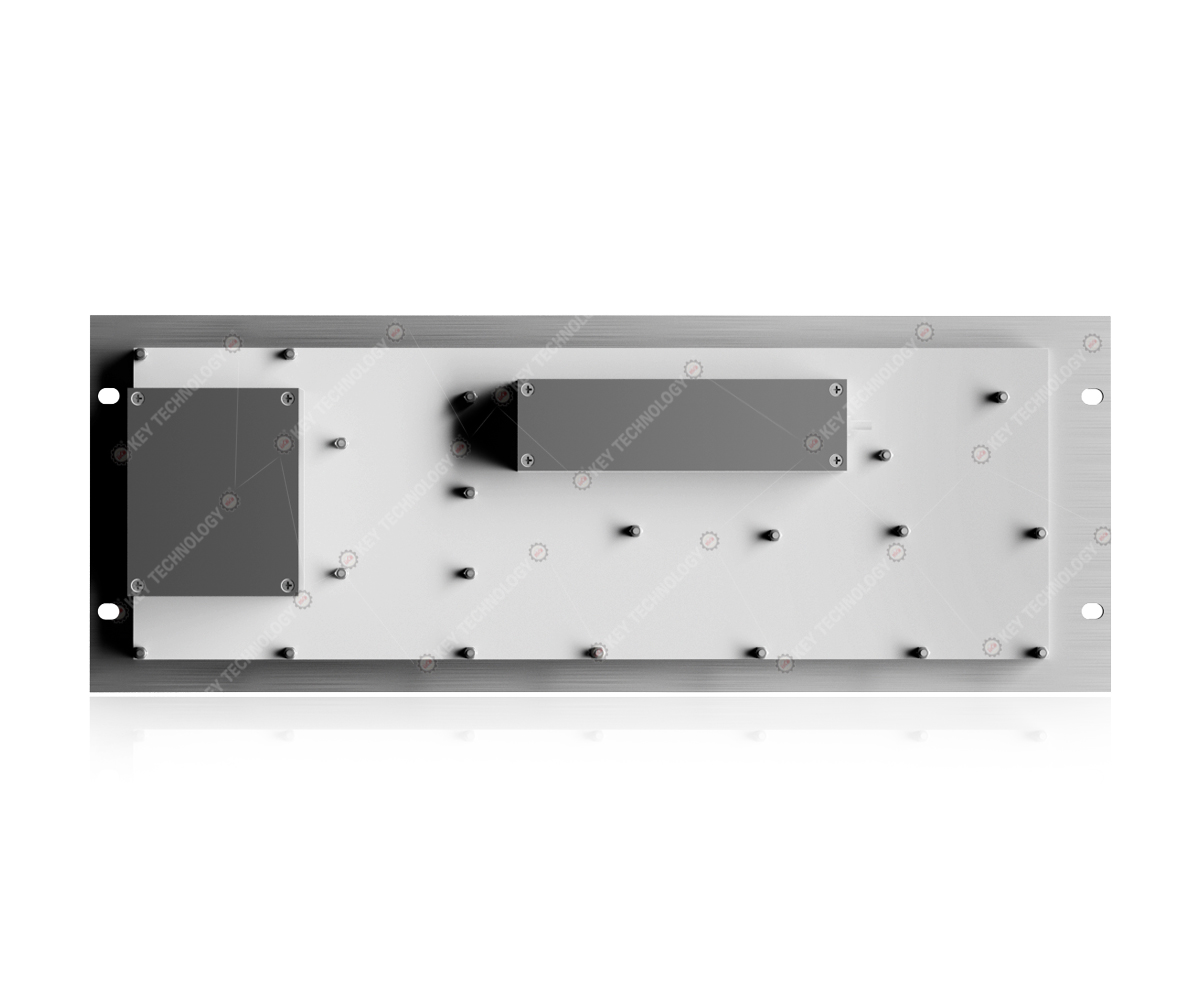

Mounting Type	Top panel mounting
Colors	White/Grey/Black (other custom colors optional)
G.W.	2.60KGs
Key Dimensions (print area)	14.0mm x 14.0mm for normal keys
Trackball	IP65 38mm black hardened black resin mechanical ball
Trackball resolutions	400DPI
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection Level	IP65 dynamic
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

K-TEK-D483-178-MTB-KP-FN-SW mechanical drawing
