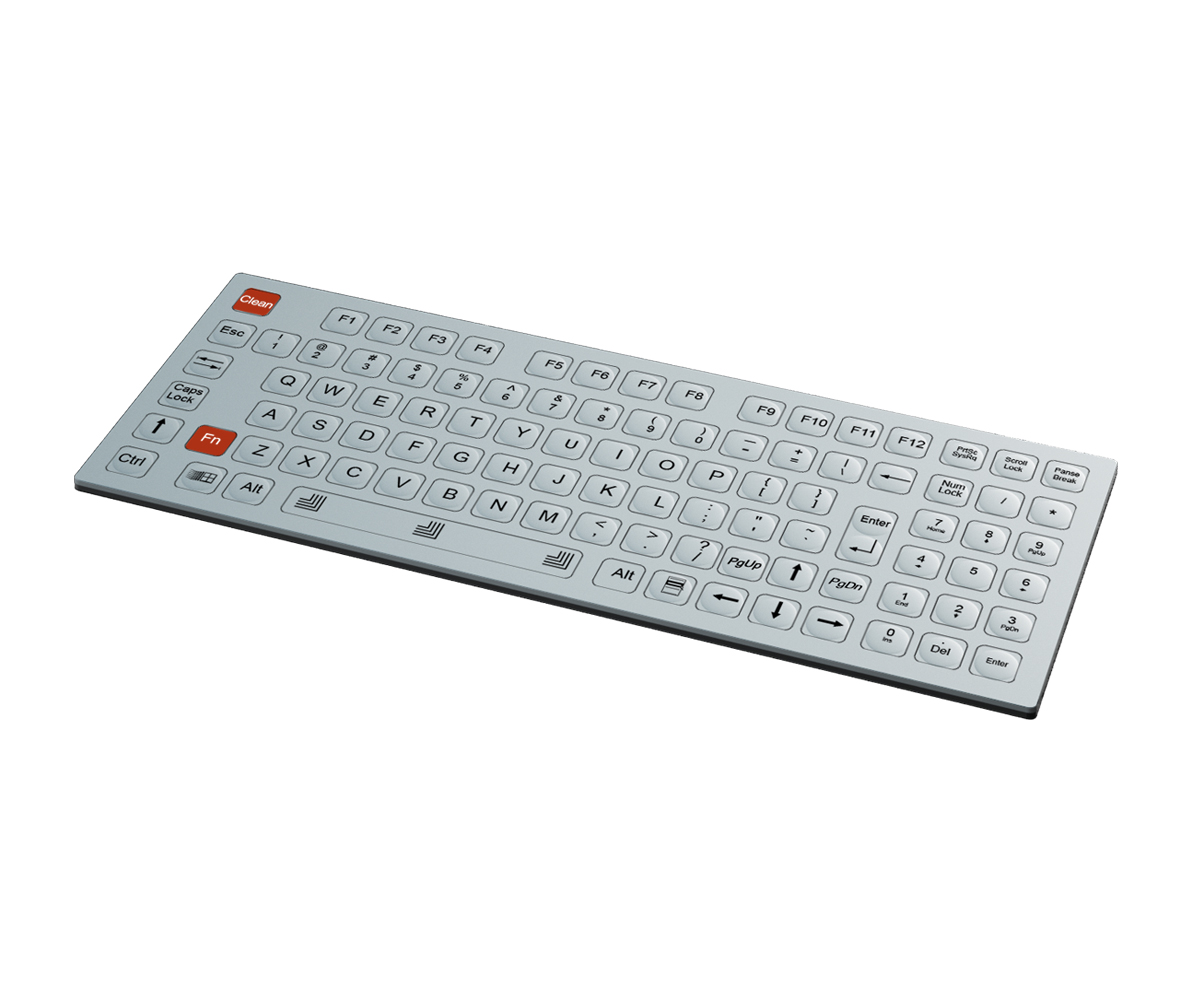

K-TEK-D320KP-FN

Category：	Membrane keyboard
Key Number：	97 keys
Key Travel：	0.45±0.05mm
Interface：	USB/PS2 optional
Key Switch：	Gold-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-20℃ to +65℃
Application：	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

Prev： K-TEK-M390-MTB-FN-BL-BT-ML-DWP

Next： K-TEK-B100-JS-BT

Description

Download

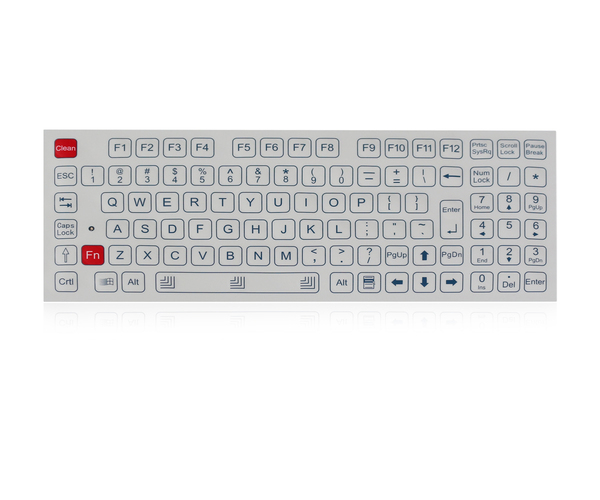

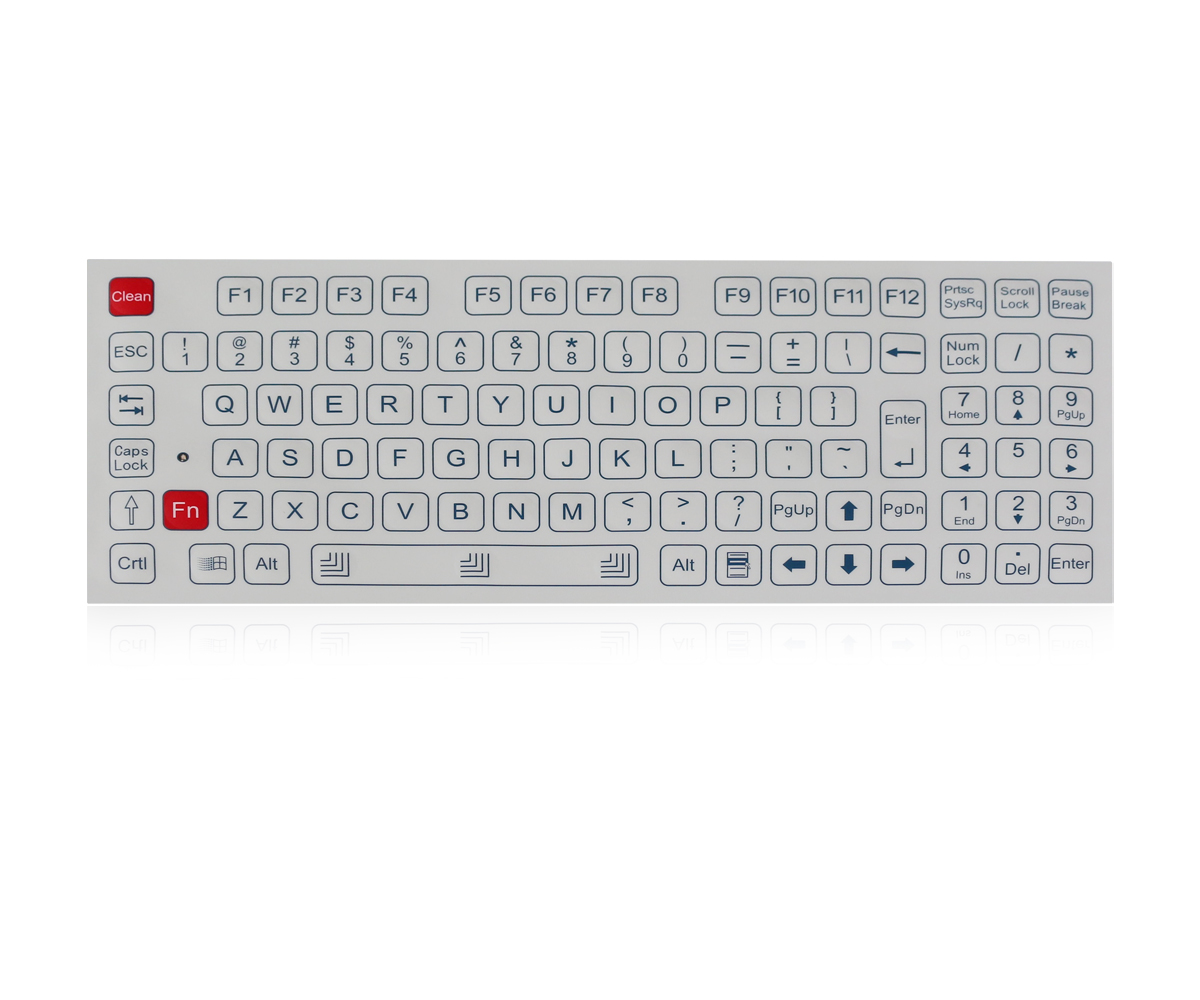

DESCRIPTION: 97 keys compact format IP65 dynamic membrane industrial keyboard with integrated numeric keypad, function keys (F1, F2...F11, F12) on the upper line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, FN+CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized brushed stainless steel back plate with shielding box to protect the whole electronics, with threaded bolts for top panel mounted solution.

DIMENSIONS: 320.0mm x 125.0mm (top panel)

MECHANICAL DATA
Number of keys	97 keys
Key switch Technology	metal dome PCB with gold-on-gold key switch technology with short stroke keys
Actuation Force	3.5N±0.2N(press point)
Key Travel	0.45±0.05mm
Mounting Type	Top panel mounting
Colors	2 (white, black)
G.W.	1.30KGs
Switch life	more than 1 million of operations
Key Dimensions (print area)	14.0mm x 14.0mm
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Saline mist	96h, IEC60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Humidity	100%
Atmospheric pressure	60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

K-TEK-D320KP-FN mechanical drawing
