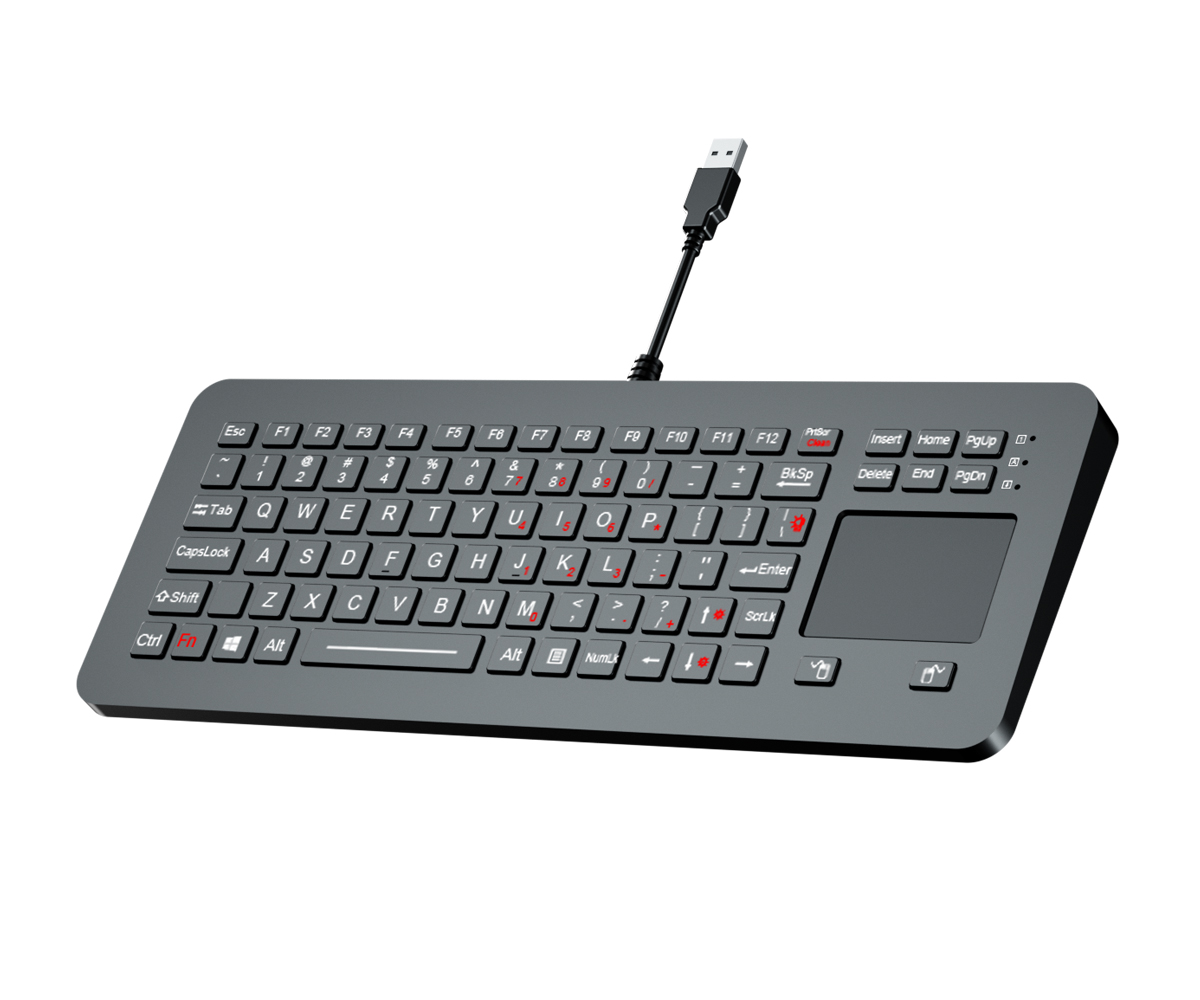

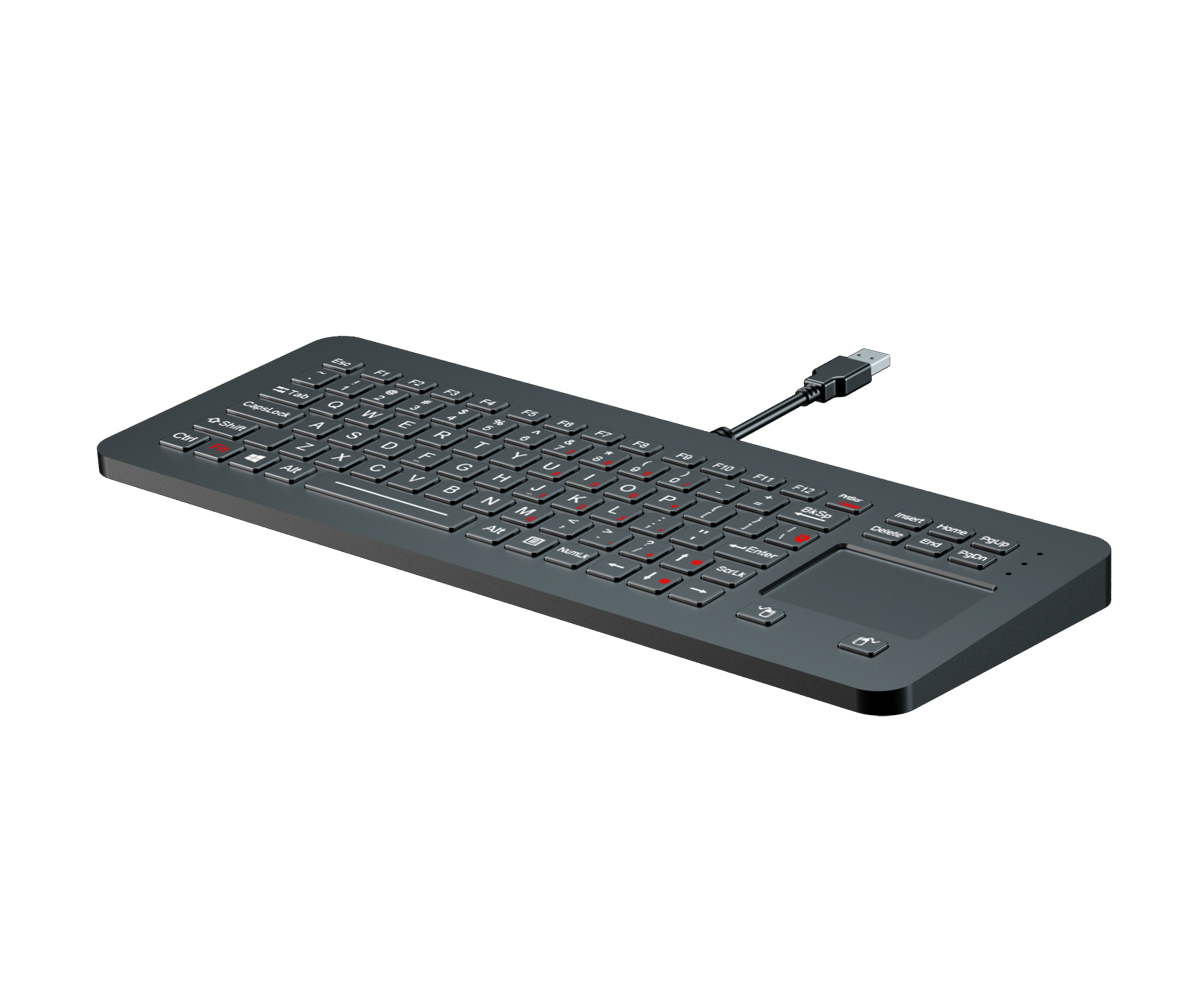

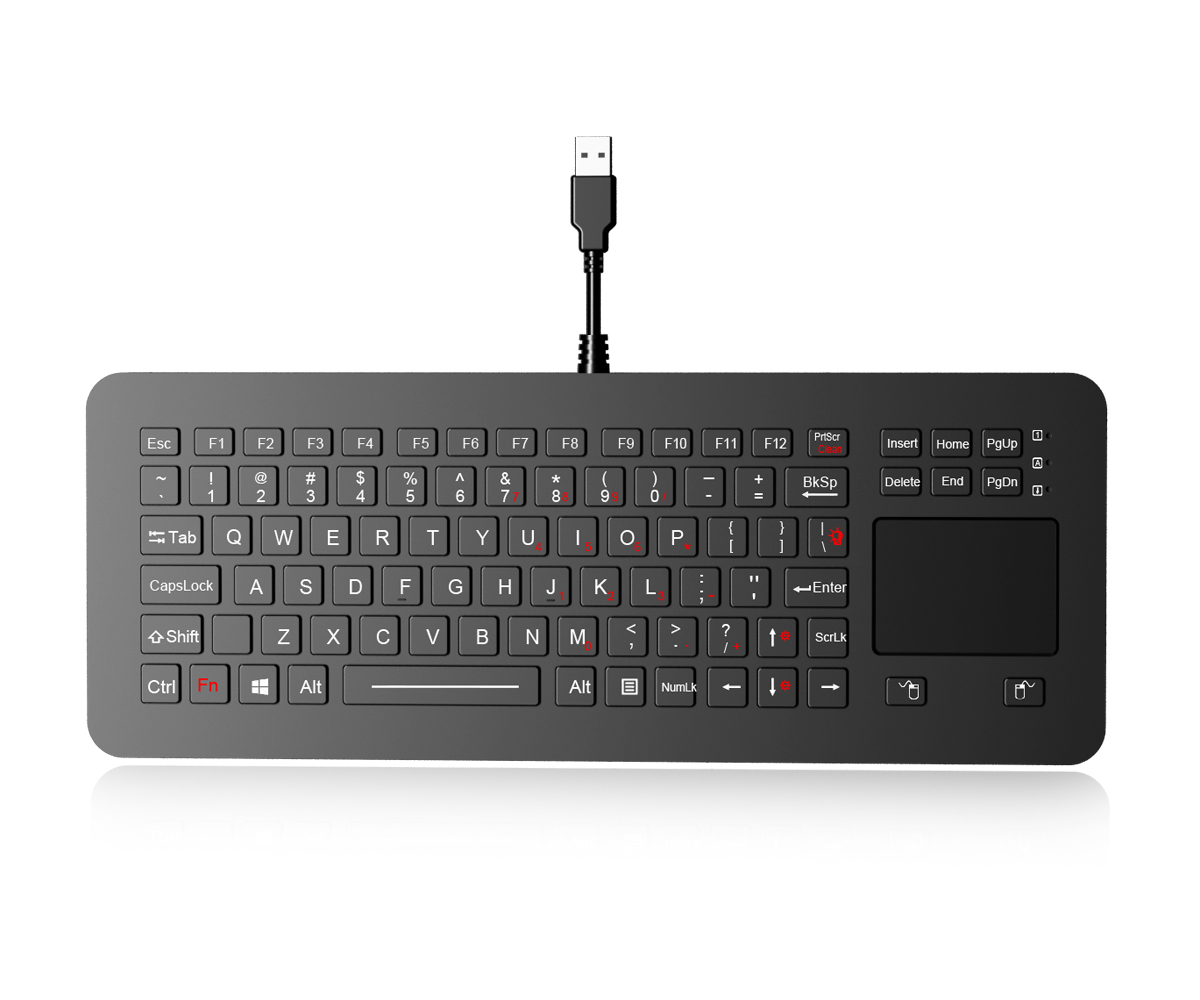

DESCRIPTION: 88 keys IP68 dynamic water proof vandal proof rugged military chiclet keyboard with durable polymer keys, integrated touchpad and military grade PCB,12 function keys(F1, F2, ... F12) are on the top line. Carbon-on-gold key switch technology with(1.20mm±0.10mm)key travel with extremely good tactile feeling for fast and accurate data input without any noise. The whole keyboard is made of CNC aluminum alloy front plate + PC key caps + carbon-on-gold key switch technology with military PCB. Movable stand alone Desk Top Version. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation and mis-typing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc. Adjustable white backlight included, with USB interface. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. Dimensions: 348.0mm x 132.0mm x(8.1mm~ 18.6mm) （L x W x H）
MECHANICAL DATA | Keys | 88 keys (including 2 mouse buttons) | Key Switch | PC keycap and carbon-on-gold rubber key switch | Key Top Style | Protuberant rectangular keys with tactile feeling | Key Travel | 1.20mm±0.10mm | Actuation Force | 1.0N±0.2N for key 14.0mm x 14.0mm (pressure point ),1.5N±0.2N for key 21.8mm x 14.0mm (pressure point) | Touch pad | sealed and ruggedized tough touchpad | Touchpad cover | Composite | More than Lifetime 10 million strokes | Mutual capacitance sensing | X/Y axis location detection resolution | 40 Counts /mm | X/Y position report | relative | Output (self-detectable depending on cable) | USB | Tracking speed | Maximum 1,016 m/sec | Power supply voltage | 5VDC ± 0.25V | Current rating (active mode) | < 10 mA | G.W. | ≈1.0KGs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 30mA when backlight is off, 300mA with backlight on | Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.). | Lifespan | > 5 years | Interface | USB | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +75℃ | Storage temperature | -45℃ to +85℃ | Operating RH | 3%~95% | Atmospheric pressure | 60-106Kpa | Saline mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.). | Protection Level | IP68 dynamic | Vandal resistant | IK09 | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
