Product Detail

K-TEK-M418KP-FN-BL-MA-NV-151B

Category: Mechanical keyboard
Key Number: 107 keys
Key Travel: 4.0mm±0.4mm
Backlight: Green
Interface: J14A-9ZJB aviation plug
Key Switch: Mechanical axis key switch technology
Protection Level: IP54

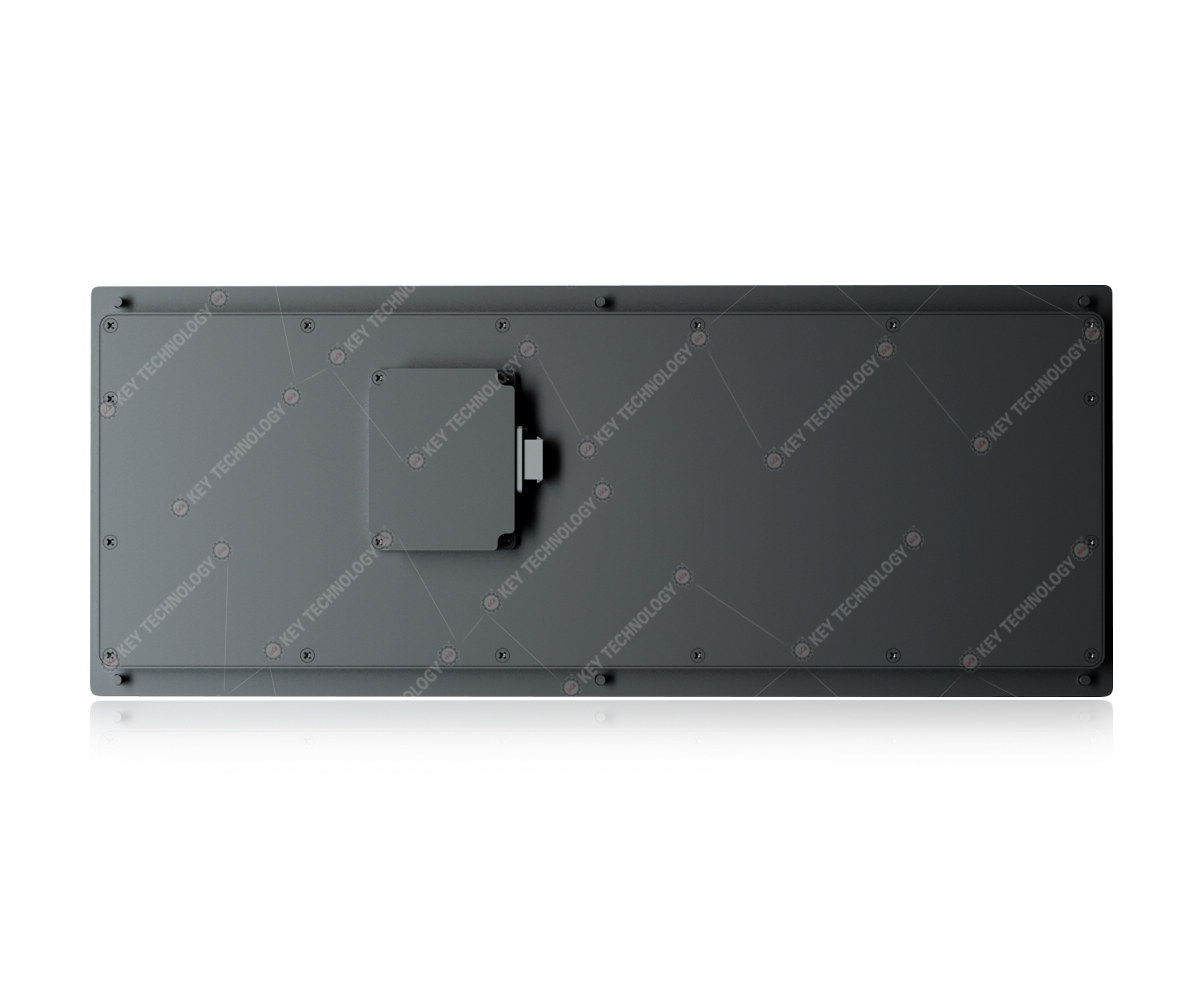

Mounting Solution: Top panel mount
Operating Temperature: -40℃~+60℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

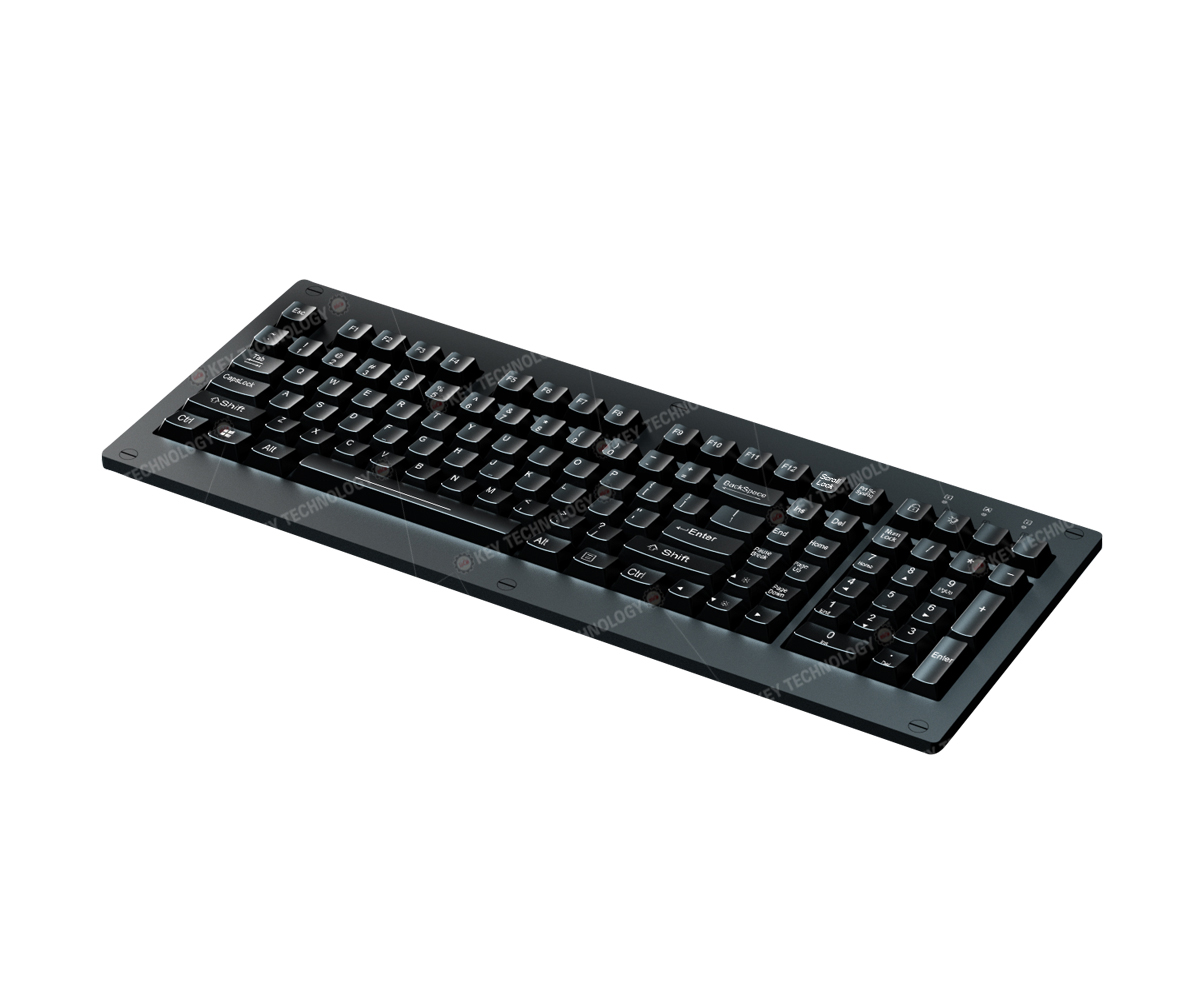

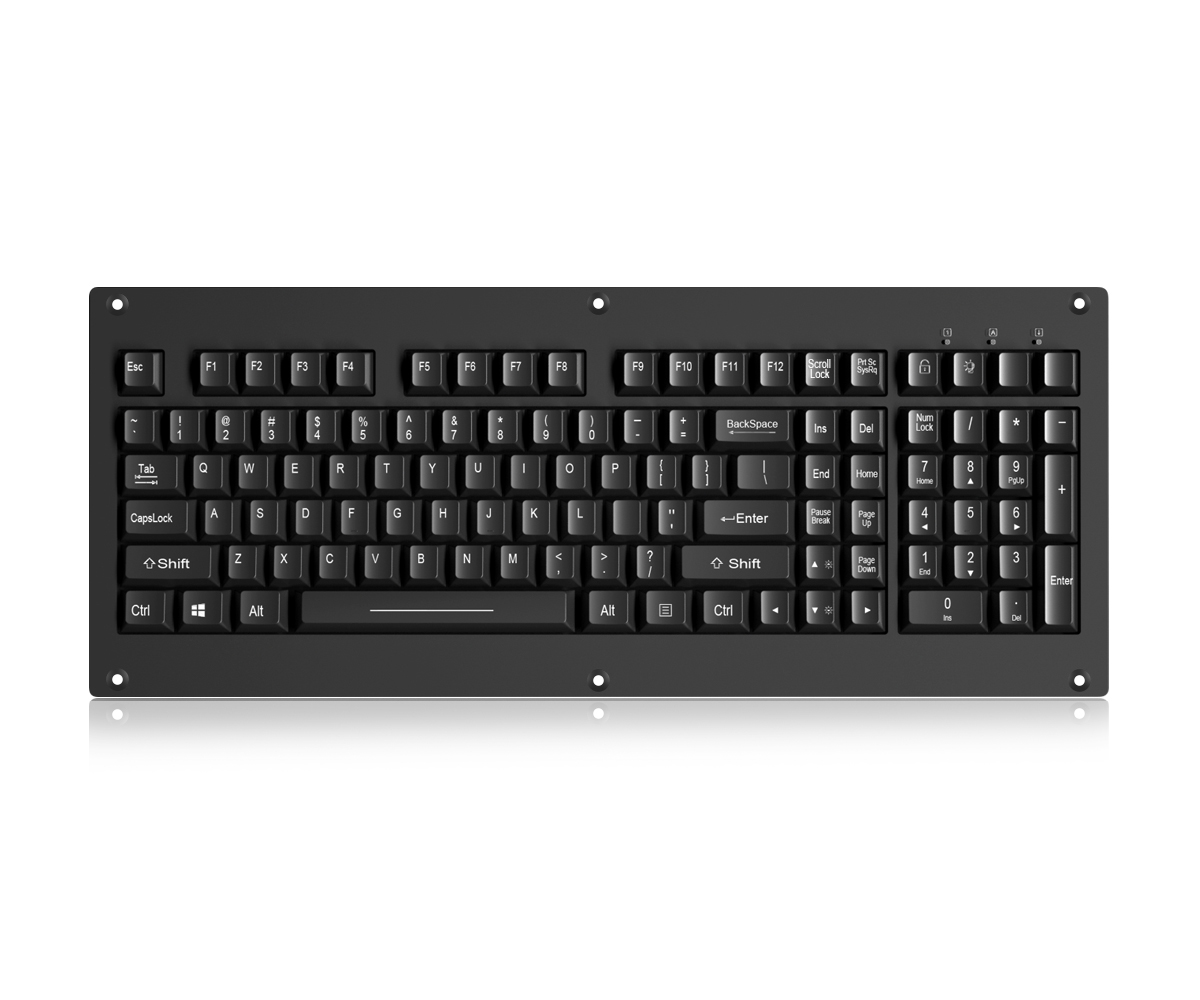

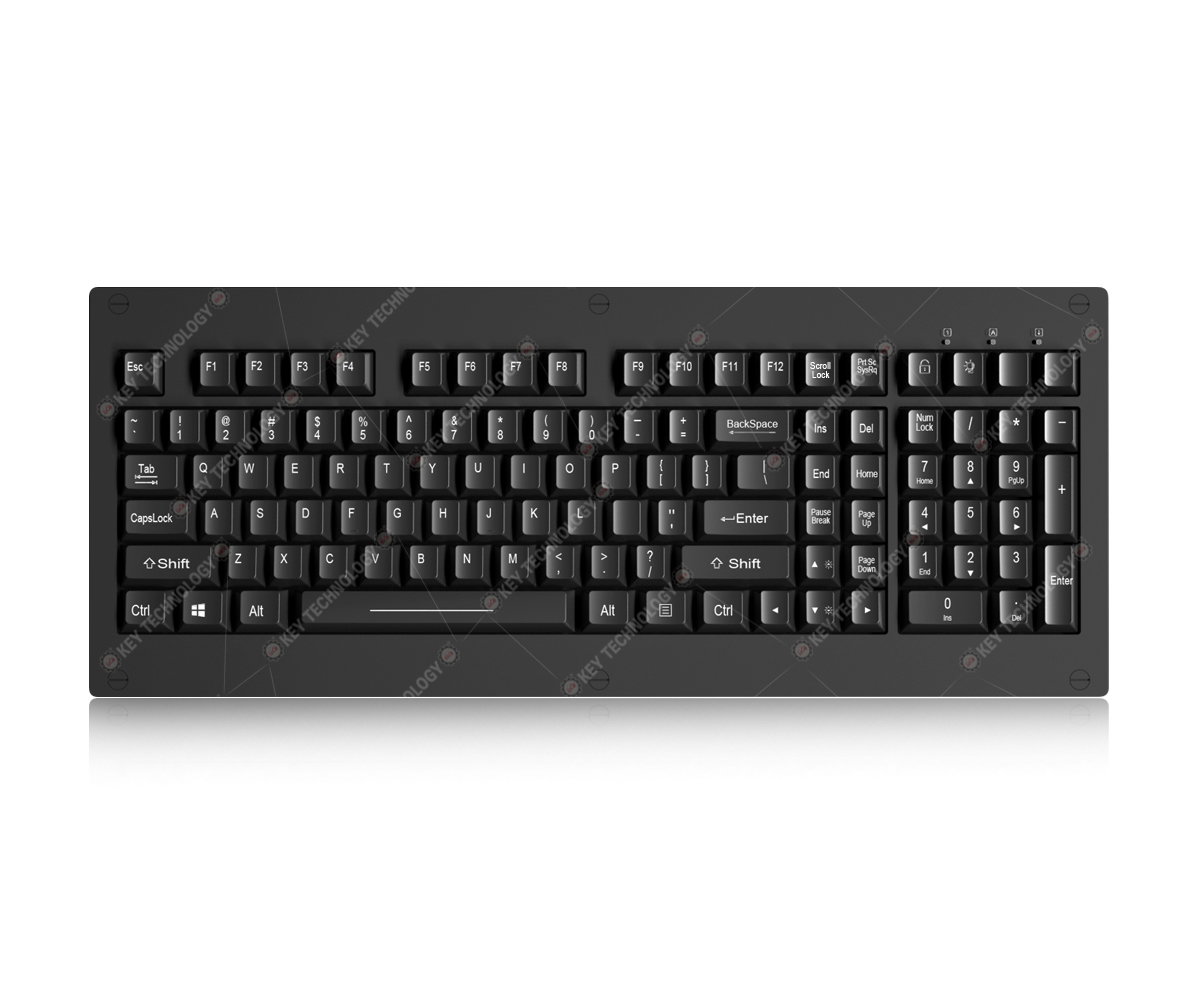

DESCRIPTION: 107 keys IP54 static rated waterproof rugged durable embedded military mechanical keyboard, with built-in wide temperature military grade PCB, with numeric keypad, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation. The high quality ruggedized aluminum alloy panel is processed by CNC, PC material button, with mechanical axis key switch and 4.00mm long stroke with extremely good tactile feeling for fast and accurate data input, with durable coating & antimicrobial surface to withstand bacteria and work well under harsh environment, top panel mounted solution with sinking holes, with green backlight included, J14A-9ZJB aviation plug. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: 418.0mm x 172.0mm (L x W)


MECHANICAL DATA

Key

107 keys

Key top style

Protuberant rectangular keys with tactile feeling

Key travel

4.0mm±0.4mm

Key technology

mechanical axis key switch technology

Actuation Force

0.55N±0.15N (pressure point )

Key Gram Force

50±10gf

G.W.

2.0KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

≈80mA

Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:

1

CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106 Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz Radiated Emissions, Electric Field

11

RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide temperature, shock, vibration, humidity).

Lifespan

> 5 years

Interface

J14A-9ZJB aviation plug, other interfaces can be customized

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +60

Storage temperature

-45℃ to +70

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-461G-EMC-EMI-EMS-ESD, and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.)

Protection Level

IP54

Key Lifespan

>50 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
