K-TEK-B100-JS-BT

Category：	Joystick
Key Number：	3 buttons
Interface：	USB
Key Switch：	Push button switch
Protection Level：	IP65
Mounting Solution：	Front panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, navy, maritime, Radar, console, navigation controls etc.

Prev： K-TEK-D320KP-FN

Next： K-TEK-38-MTB-AVR

Description

Download

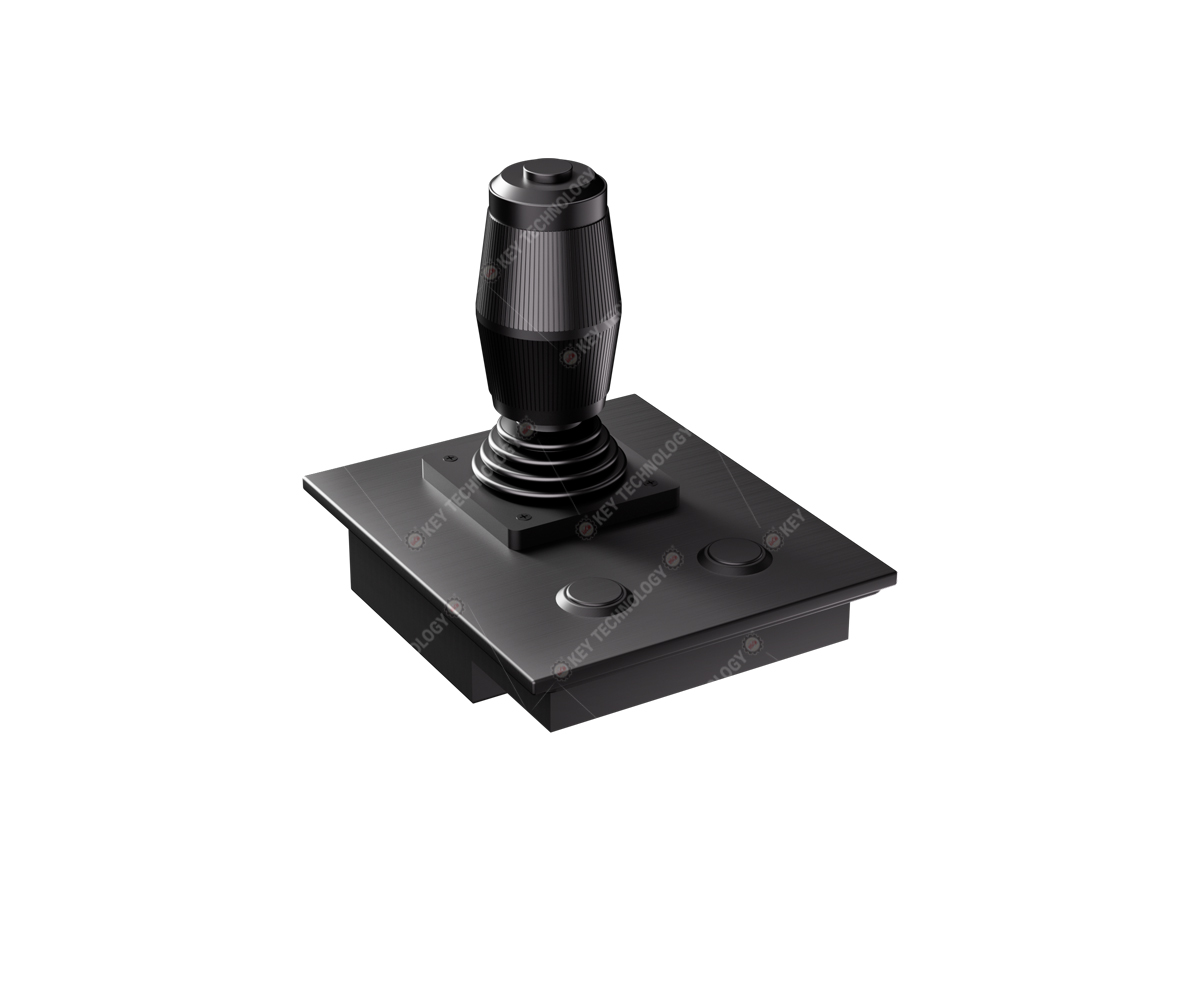

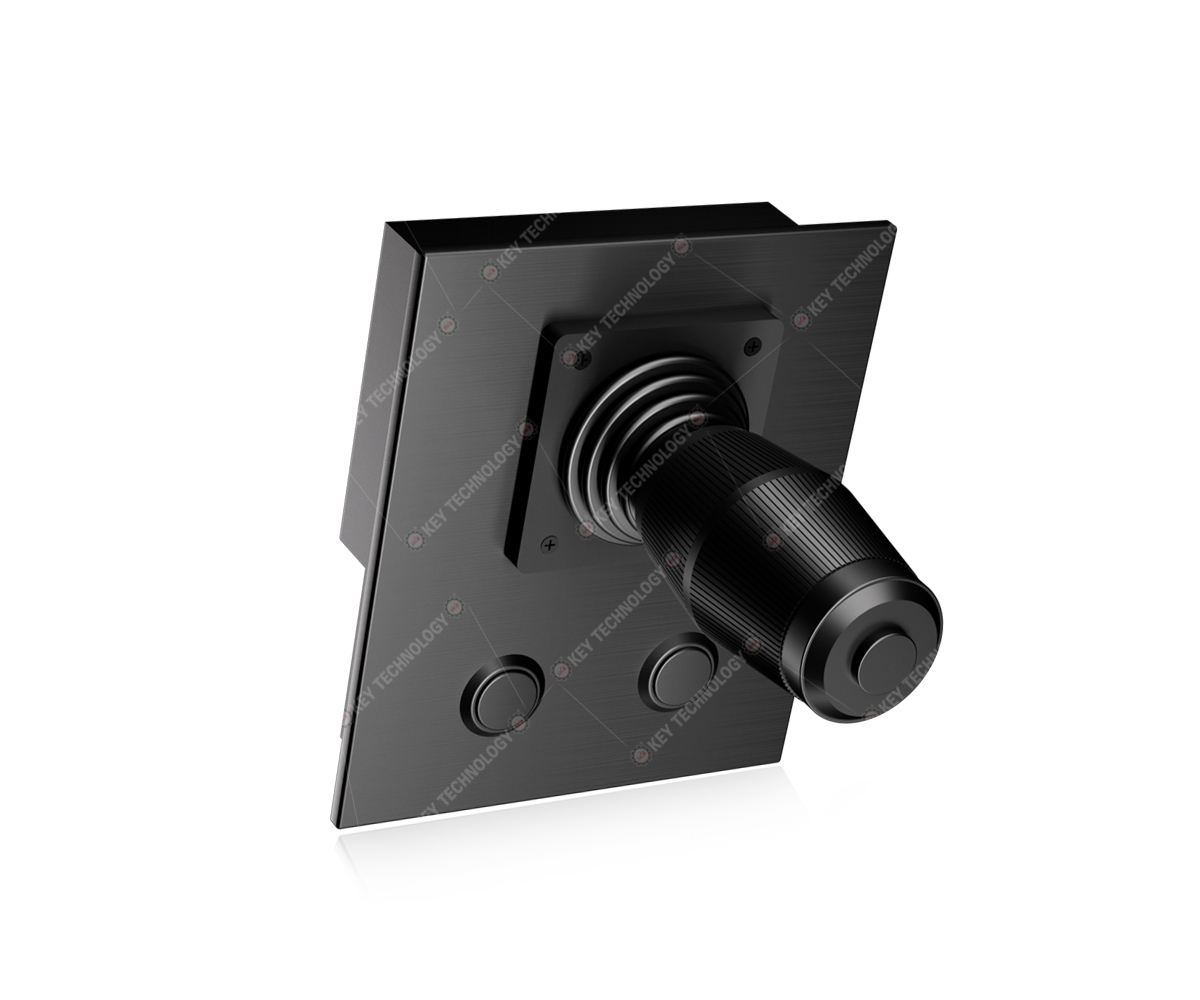

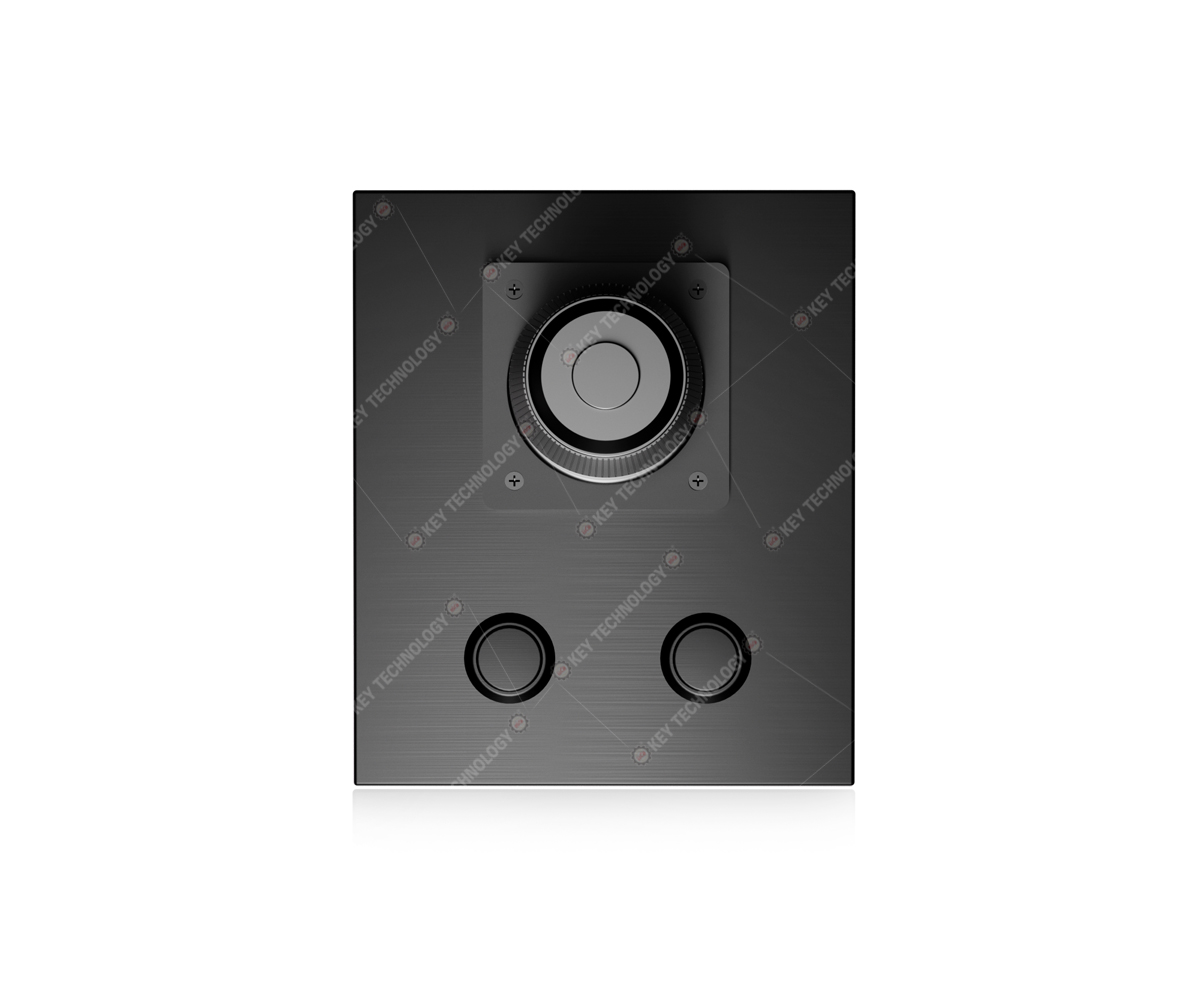

DESCRIPTION: IP65 ruggedized joystick with stainless steel plate and 2 sealed stainless steel mouse buttons (optional) for right and left clicking, the whole electronic controllers protected and shielded by stainless steel housing. The joystick provides users with a 3-axis joystick function, and can control the output of X (left and right) and Y axis (front and rear) by moving the handle in any direction by (25 ° ± 2 °); and surely control the Z axis output by rotating (40 ° ± 3 °). High quality durable black titanium electroplated on the top stainless steel plate. Mouse function or joystick function optional. With one button on the top of the joystick (2 buttons optional), it can be set as left mouse button or right button before ex-factory. USB interface, top panel mounted solution with threaded bolts.

Dimension: 100.0mm x 116.0mm x 41.5mm (L x W x H)

MECHANICAL DATA
Button	2 mouse buttons (optional) +1 button on top of joystick
G.W.	0.5KG
Dimension	100.0mm x 116.0mm x 41.5mm (L x W x H)
X, Y axis operation strength	0~5 N, Ultimate damage strength 12 N
Z axis rotation torque	0~4 N, Maximum torque must not exceed 8 N
Material	high quality SUS304 brushed stainless steel, ABS
Joystick function	Mouse protocol or joystick protocol
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	100mA
EMC Standard	EN 55032:2015 EN 55035:2017
Interface	USB2.0
OS	All systems that support HID devices
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +70℃
Storage temperature	-45℃ to +75℃
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
RELIABILITY
RoHS Compliant, CE and FCC
Protection Level	IP65
Key Lifespan	>0.2 million actuations for joystick, >1 million actuation for mouse buttons
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, navy, maritime, Radar, console, navigation controls etc.

K-TEK-B100-JS-BT mechanical drawing
