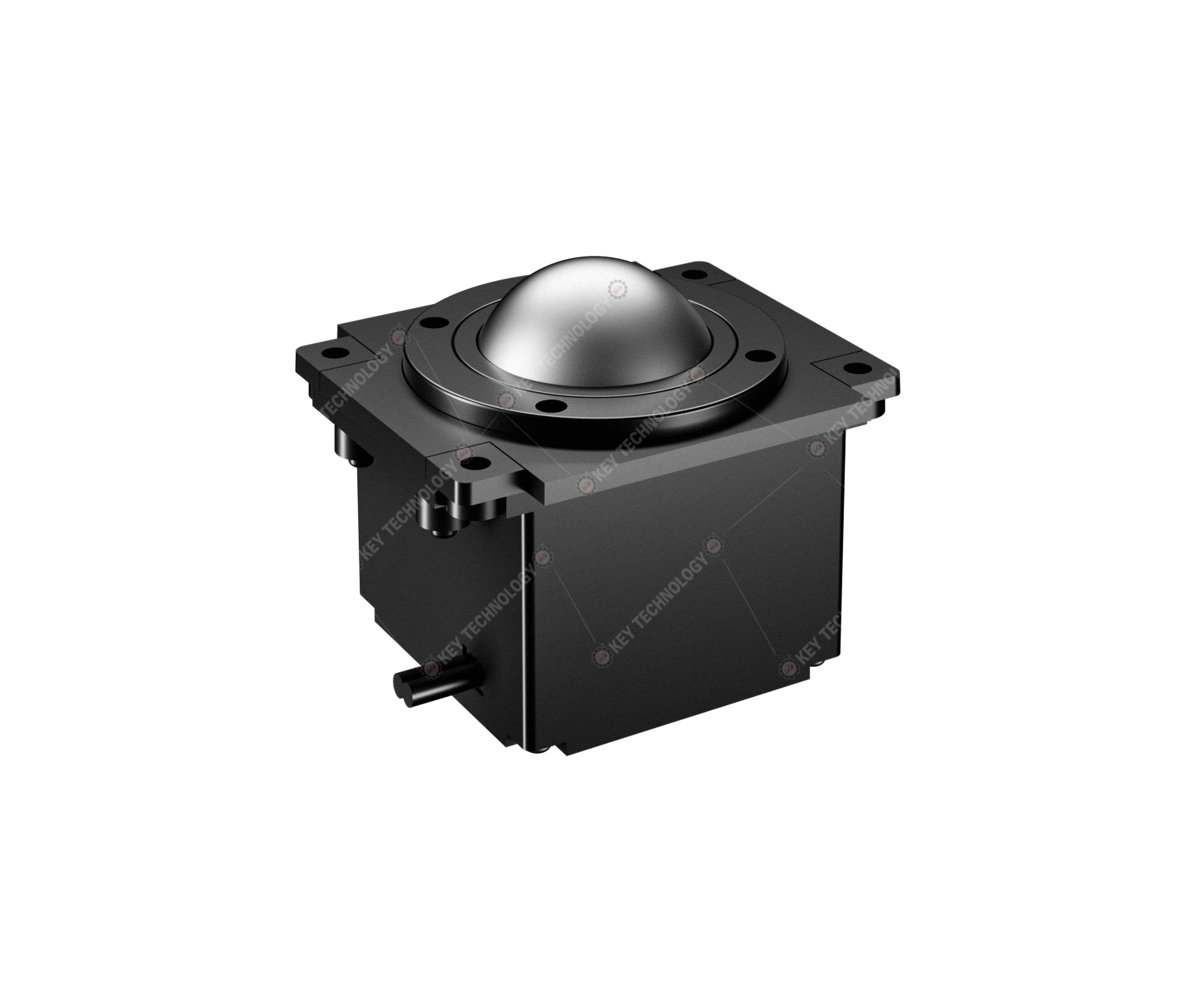

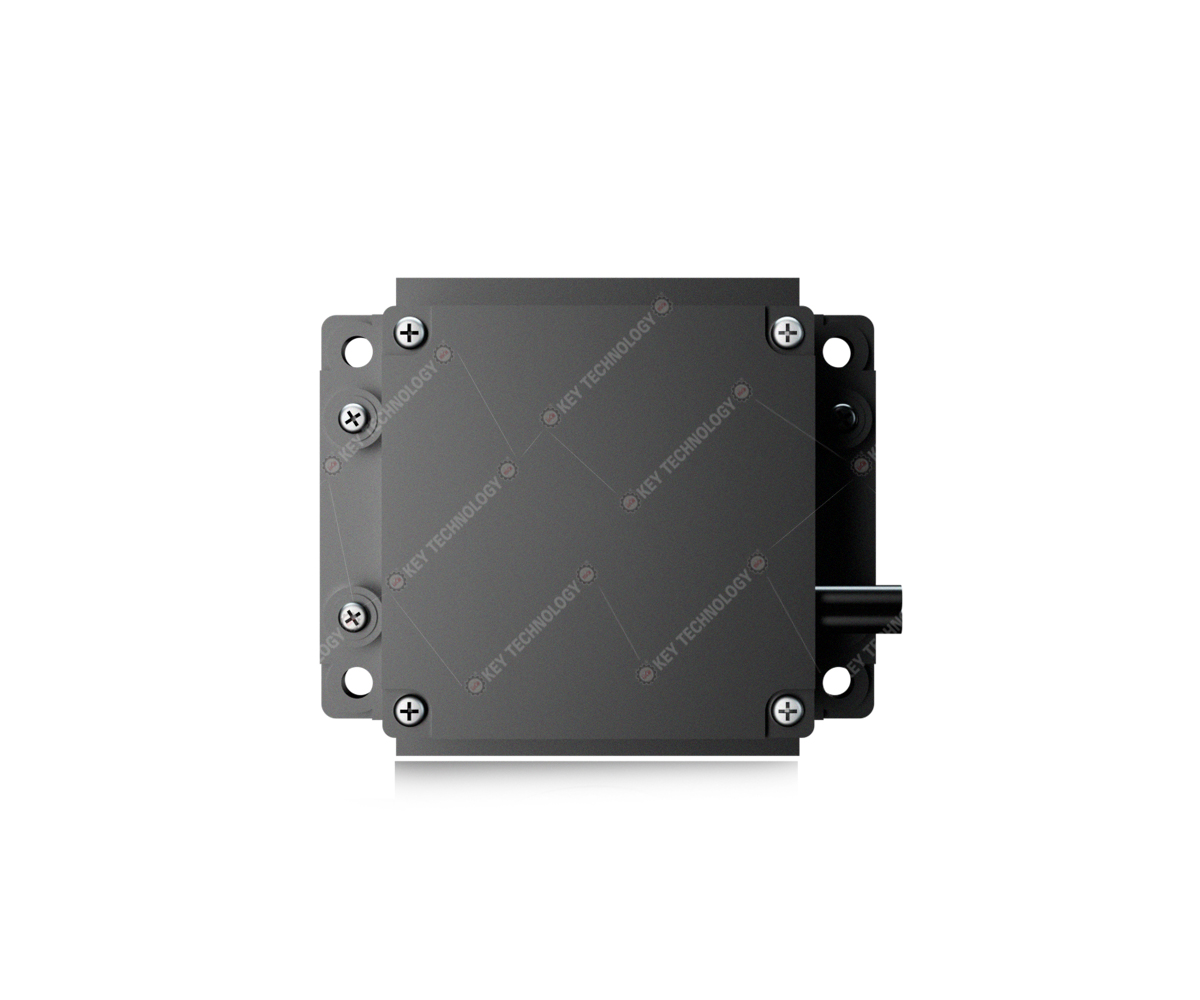

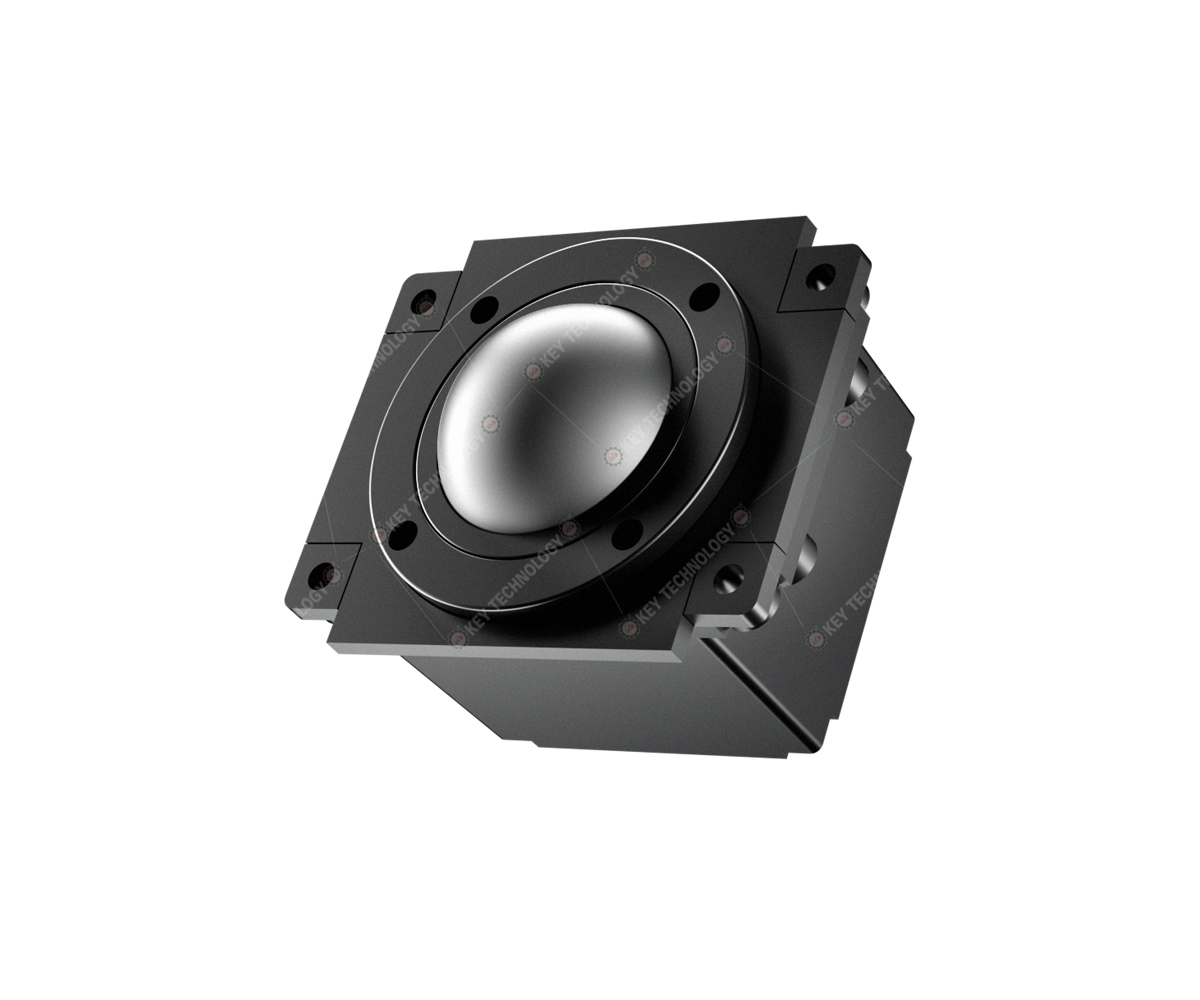

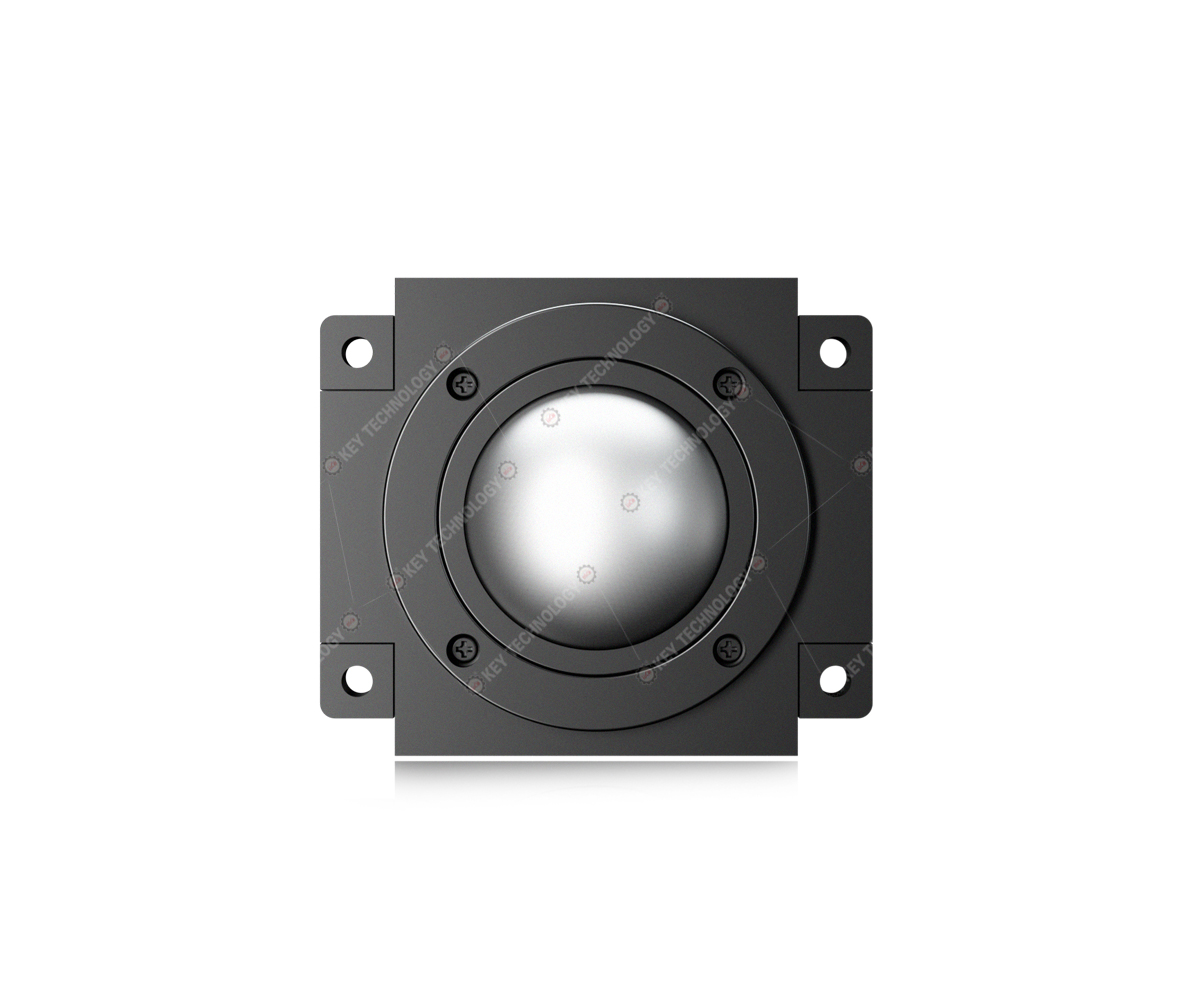

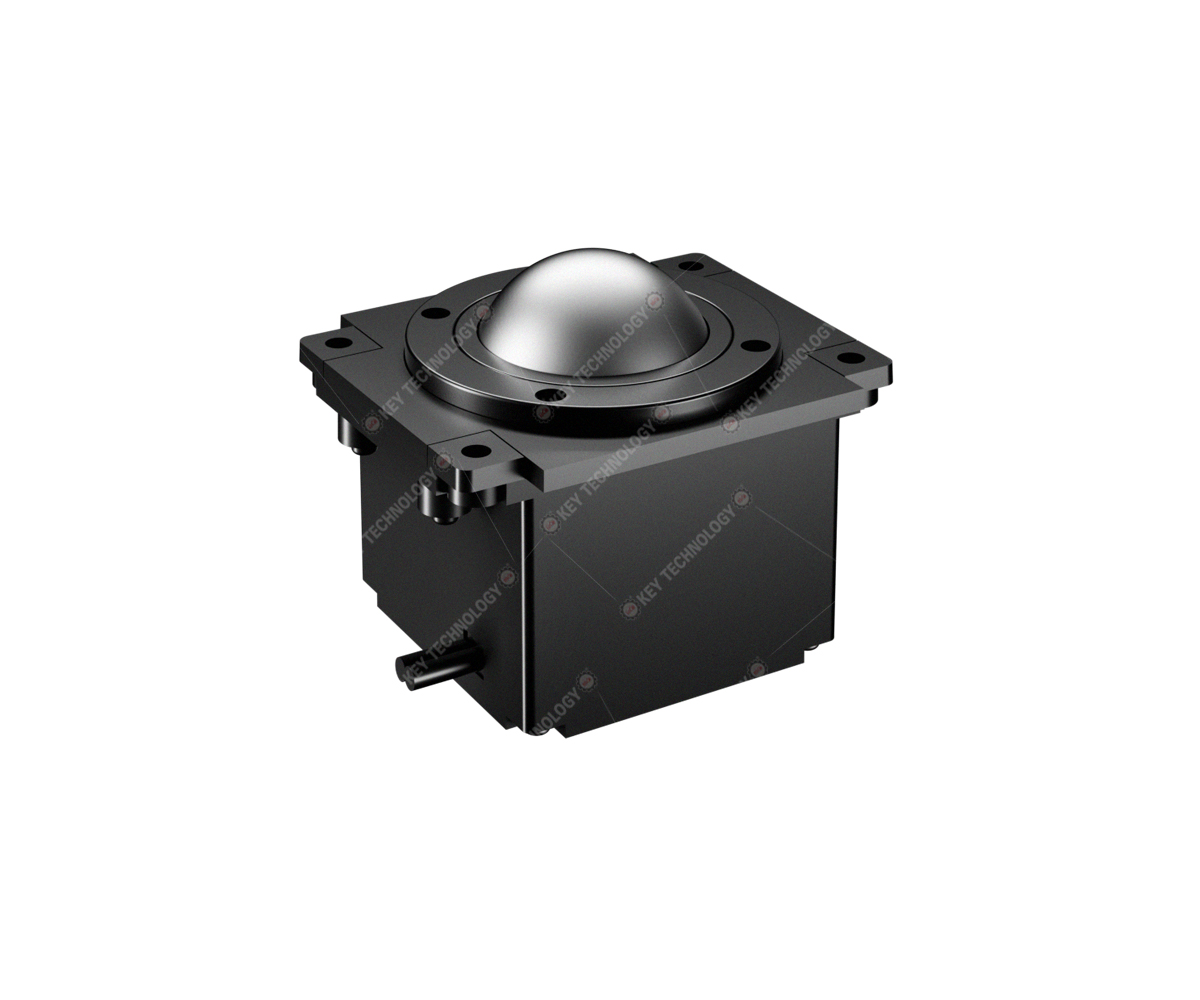

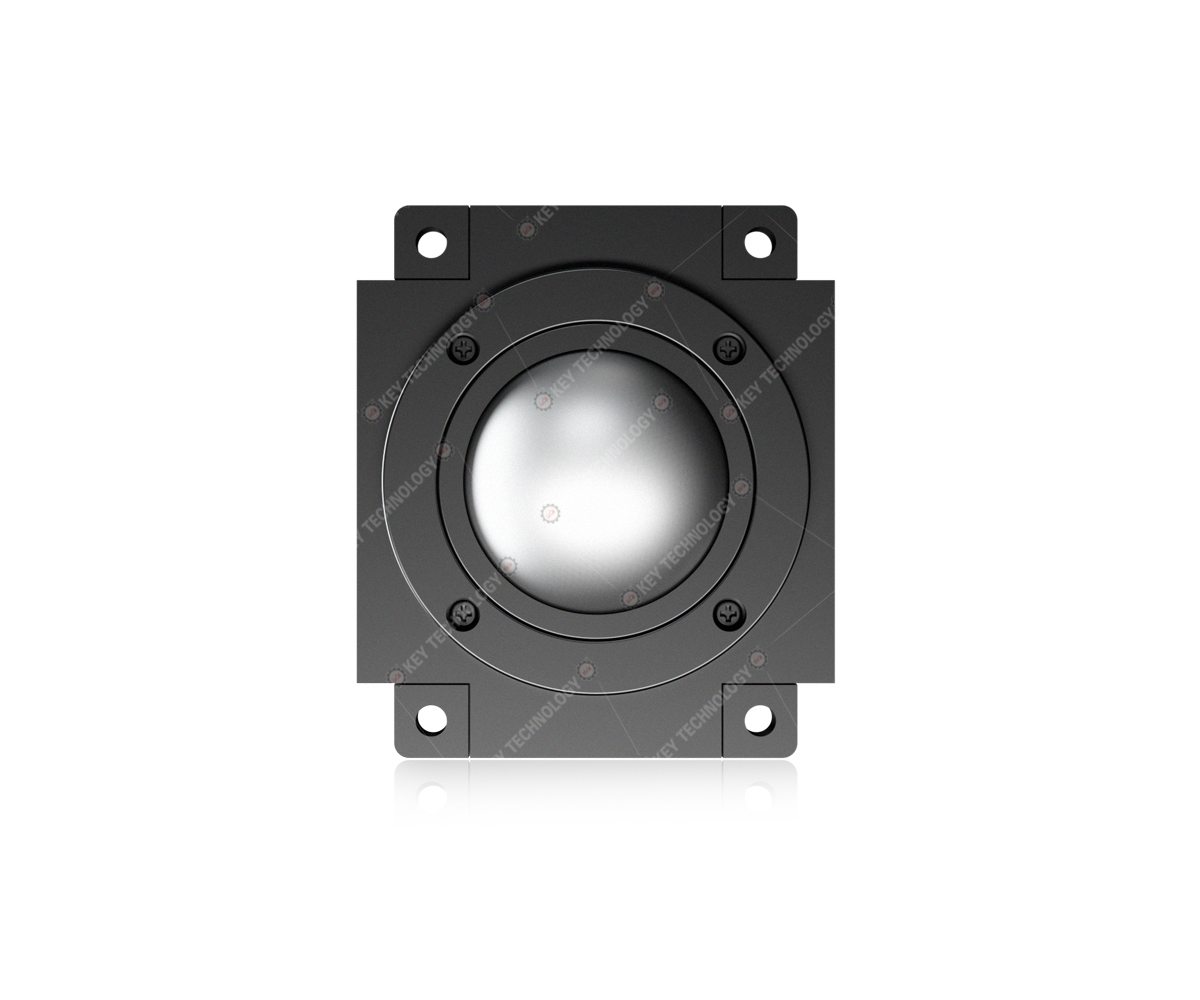

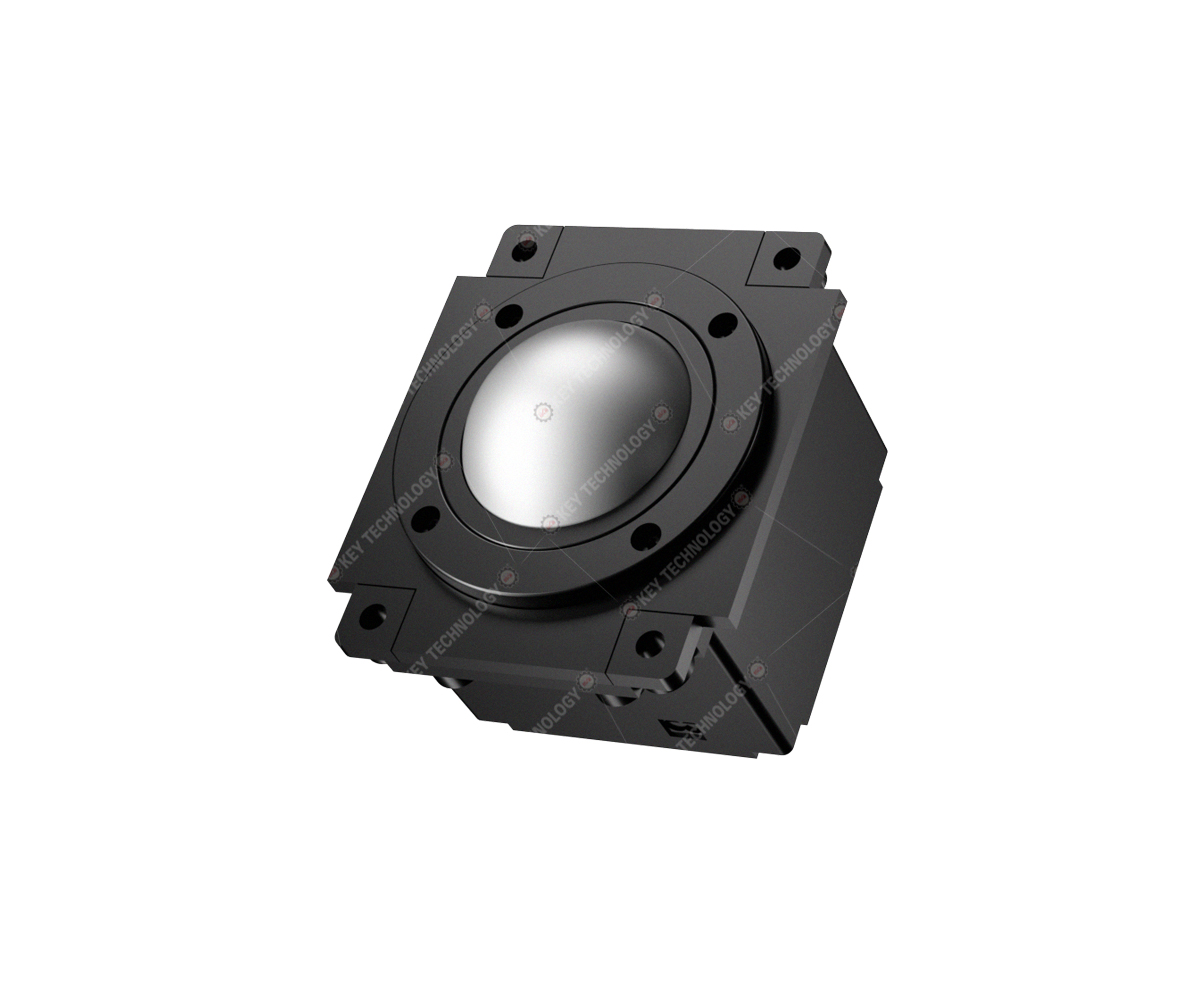

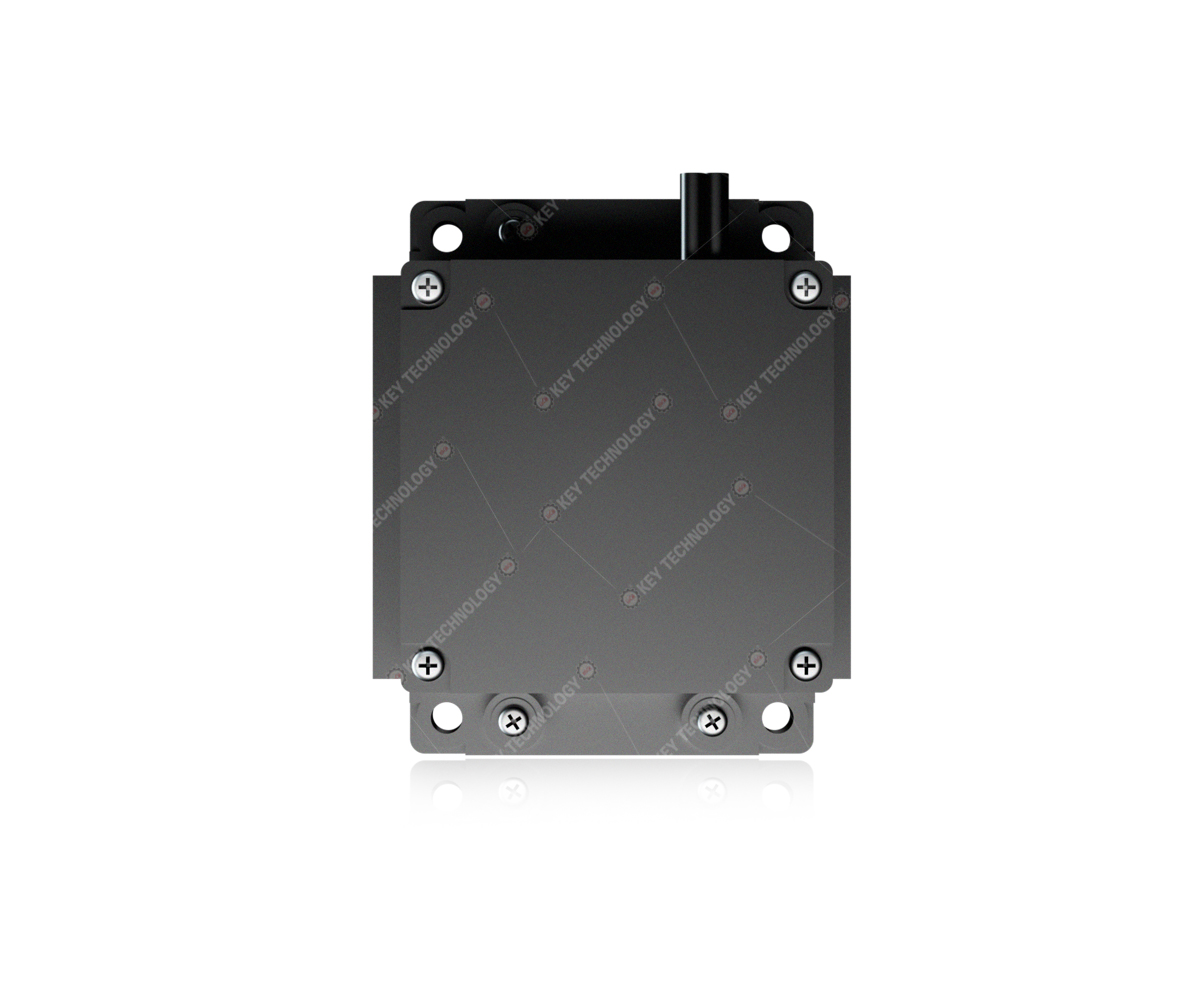

K-TEK-38-OTB-AVR

Category：	Trackball
Interface：	USB/PS2 optional
Protection Level：	IP65 dynamic
Mounting Solution：	Panel mount
Operating Temperature：	-40ºC to +60ºC
Ball Diameter：	38.00mm
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M275TP-FN-BL-ML-SS-V02

Next： K-TEK-M127TP-NV-151B-DWP

Description

Download

Description: IP65 dynamic rated washable rugged anti-vibration 38.0mm optical trackball module with 800DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, silver hardened resin trackball and stainless steel trackball both available, which can be removable for easy cleaning; With two external left and right mouse buttons optional, panel mounted solution. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity, MIL-STD-461G-EMC-EMI-EMS-ESD optional.

Dimension: 64.0mm x 74.0mm (L x Wl)

MECHANICAL DATA
Trackball Diameter	38.0mm
Trackball lifespan	2 millions scrolling
G.W.	0.3KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	＜30mA
EMC Standard	EN 55032:2015, EN 55035:2017
Lifespan	> 5 years
Interface	USB, PS2
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +60℃
Storage temperature	-45℃ to +70℃
Operating RH	3% - 95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
CE, FCC, RoHS
MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar
radiation etc.)
Protection Level	IP65
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-38-OTB-AVR mechanical drawing
