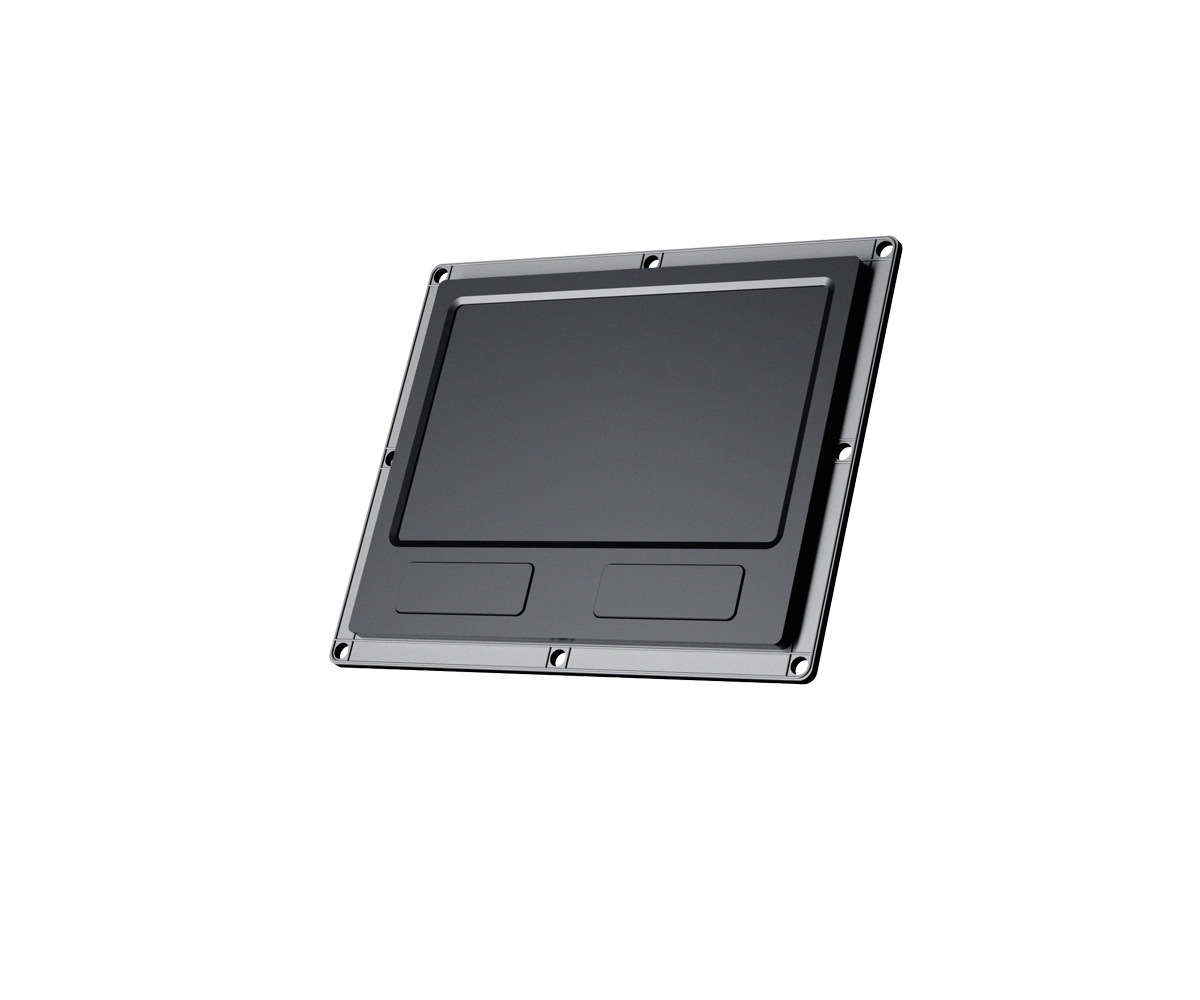

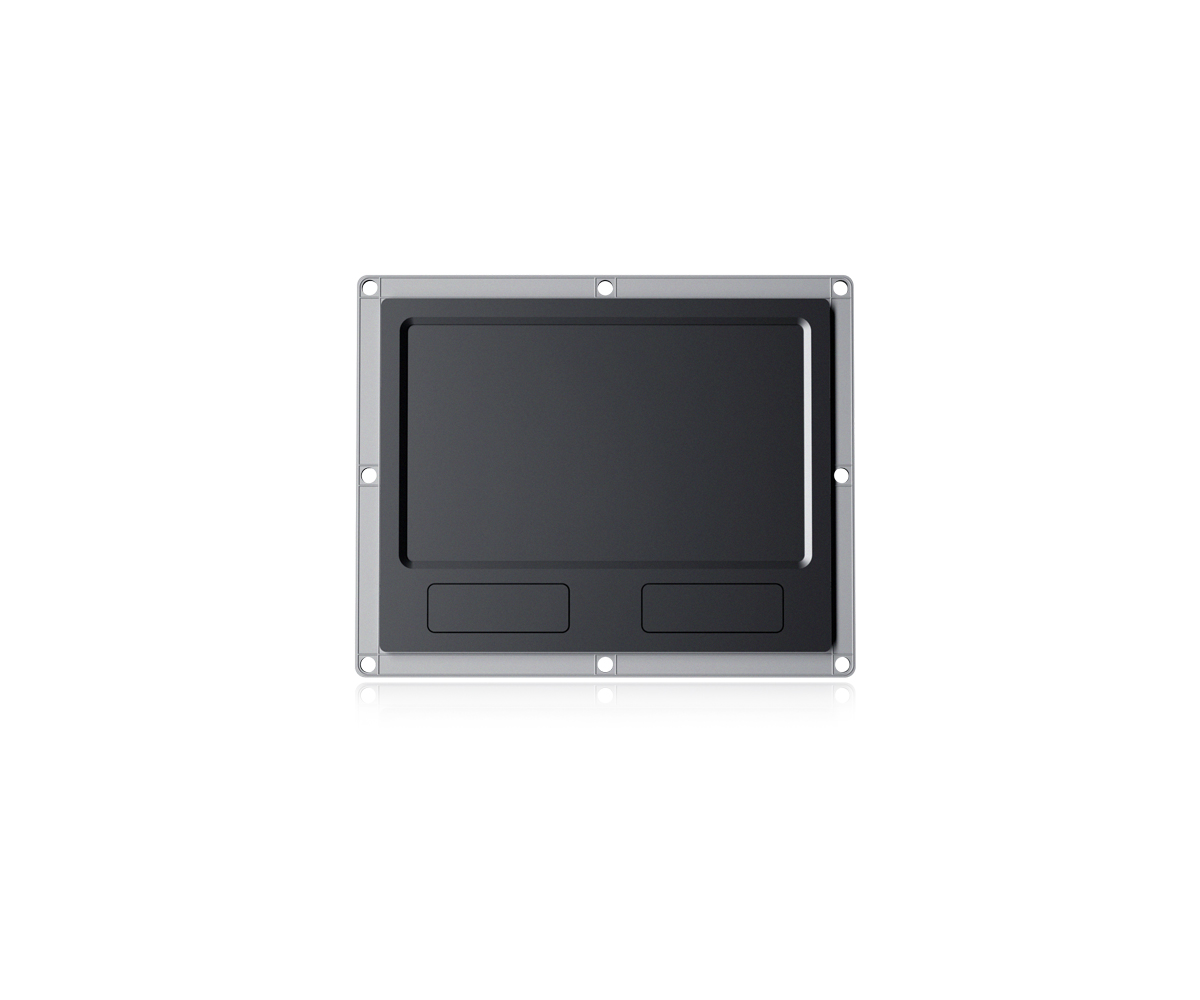

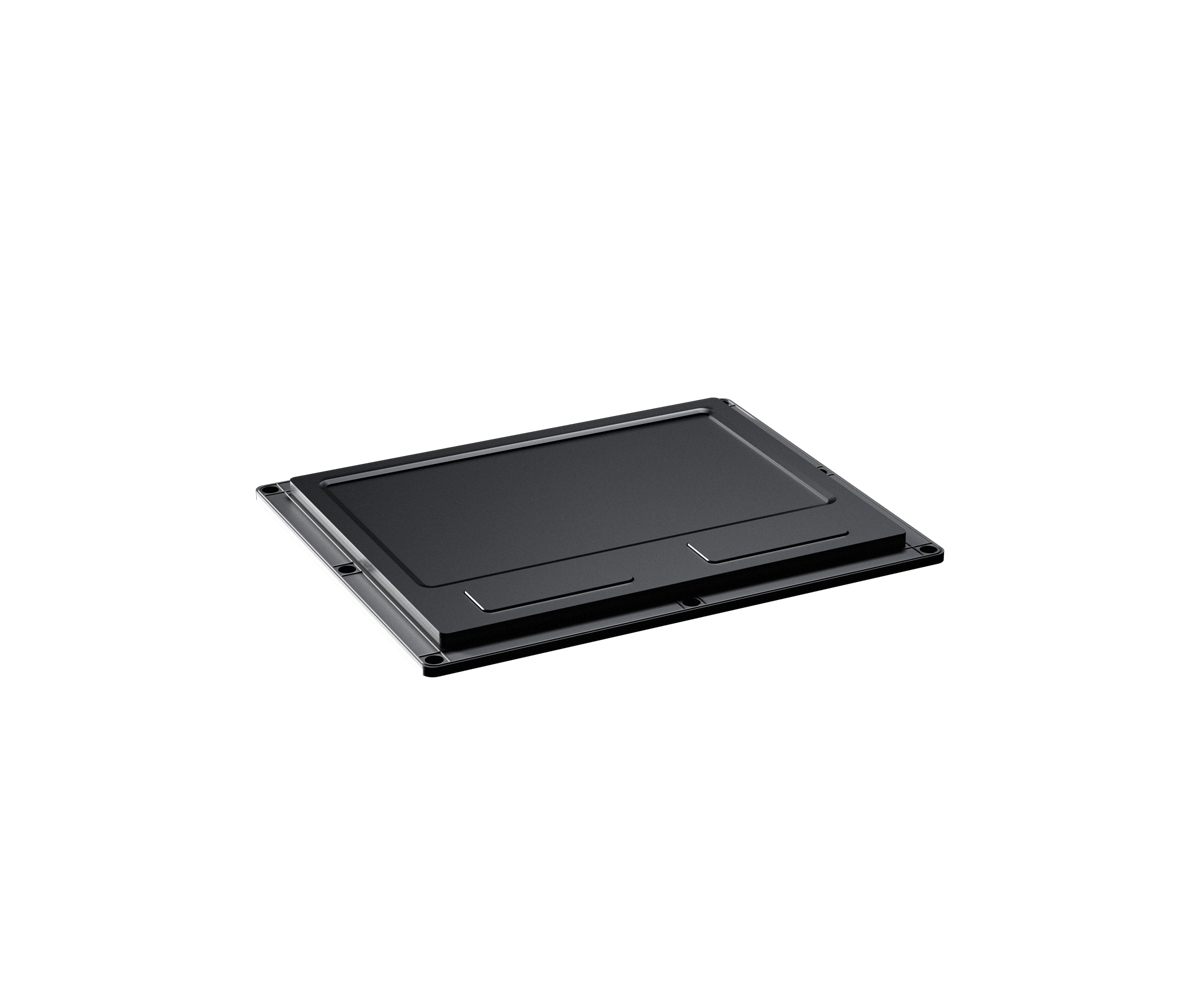

DESCRIPTION: IP65 dynamic sealed & ruggedized military high performance humanize capacitive touchpad. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers, which adopts IIC communication protocol (PS2 protocol optional; it can also be connected with an external adapter board to convert to USB protocol). With 2 fully sealed waterproof and oil proof mouse buttons with micro key switch technology and plastic keycap for comfortable tactile feeling. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. DIMENSIONS: 143.6mm x 116.6mm (L x W)
MECHANICAL DATA | Keys | 2 keys | Key Technology | Micro key switch technology | Mutual capacitance sensing | X/Y axis location detection resolution | 40 Counts /mm | X/Y position report | relative | Tracking speed | Maximum 1,016 m/sec | Working current | 17 mA | G.W. | 0.20KGs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | Lifespan | > 5 years | Interface | USB/PS2 | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature |
-40ºC~+ 65º C | Storage temperature |
-45ºC~+ 75ºC | Operating RH | 3%~95% | Atmospheric pressure | 60-106Kpa | Saline mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | Protection Level | IP65 (front panel) | MTBF | >20000H | MTTR | <30min | APPLICATIONS | Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook, PC, UAV ground station etc. |
|
